Ace Your CAPM CAPM Exam

According to the PMBOK® Guide (Project Management Body of Knowledge), specifically within the Project Resource Management knowledge area (formerly Human Resource Management):

Project Roles and Responsibilities (Option B): This is the primary output and key benefit of the Plan Resource Management process. This process identifies and documents project roles, responsibilities, required skills, and reporting relationships. It results in the creation of the Resource Management Plan, which ensures that the project has the necessary human resources with the appropriate skill sets to complete the work.

Team Selection Guidelines (Option A): While the plan might touch on how resources are acquired, " selection guidelines " are more specifically detailed in the Acquire Resources process, where the actual negotiation and assignment of staff occur.

Improving Teamwork and Competencies (Option C): This is the key benefit of the Develop Team process, not the planning process. Development focuses on enhancing the abilities of the team members once they have been assigned to the project.

Performance Appraisal (Option D): This is a tool and technique used in the Manage Team process. It involves tracking team member performance, providing feedback, and resolving issues to optimize project performance.

In the PMI framework, Plan Resource Management provides the necessary structure to ensure that every task in the Work Breakdown Structure (WBS) has an assigned owner. By clearly defining roles and responsibilities early, the Project Manager reduces the risk of overlapping duties or neglected tasks, which is essential for maintaining project accountability.

According to the PMBOK® Guide (Project Management Body of Knowledge), specifically the Project Schedule Management knowledge area, the Critical Path is the sequence of activities that represents the longest path through a project, which determines the shortest possible project duration.

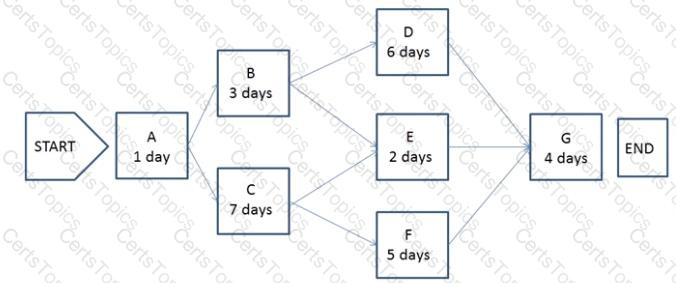

To find the duration of the critical path for the provided diagram, we must calculate the sum of the durations for every possible path from START to END:

Path 1: A → B → D → G

Calculation: $1 + 3 + 6 + 4 = 14$ days.

Path 2: A → B → E → G

Calculation: $1 + 3 + 2 + 4 = 10$ days.

Path 3: A → C → E → G

Calculation: $1 + 7 + 2 + 4 = 14$ days.

Path 4: A → C → F → G

Calculation: $1 + 7 + 5 + 4 = 17$ days.

Conclusion:

Comparing the totals (14, 10, 14, and 17), the longest duration is 17 days. Therefore, the sequence A-C-F-G is the Critical Path.

In PMI standards, activities on this path have zero total float. Any delay in an activity on the critical path (such as Activity C or F) will result in a direct delay to the project completion date.

In accordance with the PMBOK® Guide (Project Schedule Management), the identification and definition of dependencies occur specifically within the Sequence Activities process. This is the process of identifying and documenting relationships among the project activities.

During this process, the project team reviews the activity list and determines the logical order of work using four types of dependencies:

Mandatory dependencies (Hard logic)

Discretionary dependencies (Preferred/Soft logic)

External dependencies

Internal dependencies

Discretionary dependencies are established based on knowledge of best practices within a particular application area. The project team determines these during sequencing because this is the stage where they define how the activities will mathematically and logically relate to one another to create a project schedule network diagram.

Analysis of Distractors:

A and B. Before/During Define Activities: The Define Activities process is focused on identifying the specific actions to be performed to produce project deliverables (creating the Activity List). While you need the activities first, the relationship between them (the sequencing) is a separate subsequent process.

C. Before the Sequence Activities process: While a project team might have an idea of how they want to work, the formal determination and documentation of these dependencies as part of the project management plan happen within the Sequence Activities process itself, using tools like the Precedence Diagramming Method (PDM).

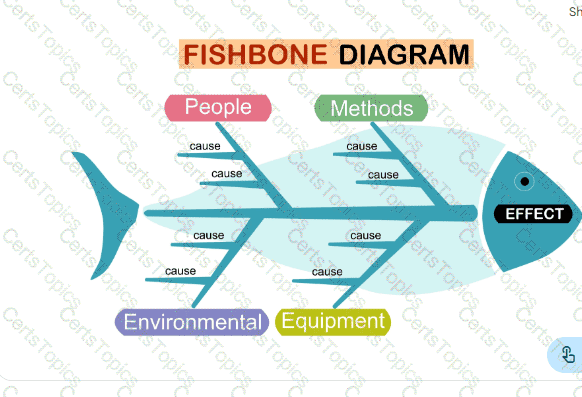

According to the PMBOK® Guide, the Ishikawa diagram is a fundamental tool used in the Plan Quality Management and Control Quality processes. It is most commonly referred to by two other names:

Cause and Effect Diagram: Because it maps out various factors (causes) that contribute to a specific problem or quality defect (the effect).

Fishbone Diagram: Because the completed diagram resembles the skeleton of a fish, with the " head " representing the problem statement and the " bones " representing the categories of potential causes.

Analysis of Other Options:

B. Control chart: A graphic display of process data over time and against established control limits, used to determine if a process is stable.

C. Flowchart: A graphical representation of a process showing the relationship between steps. It is used to identify where quality problems might occur.

D. Histogram: A vertical bar chart showing the frequency of occurrence of data points, used to illustrate the central tendency and dispersion of a data set.
