OSPFv3 Configuration Principles:

OSPFv3, the OSPF version supporting IPv6, differs from OSPFv2 in several aspects:

Interface-based Configuration:

OSPFv3 is configured on interfaces directly, unlike OSPFv2 which uses the network command.

Router ID:

The Router ID is still a 32-bit number, typically represented as an IPv4 address.

It must be explicitly specified since OSPFv3 requires a Router ID for operation, even though it supports IPv6.

Analysis:

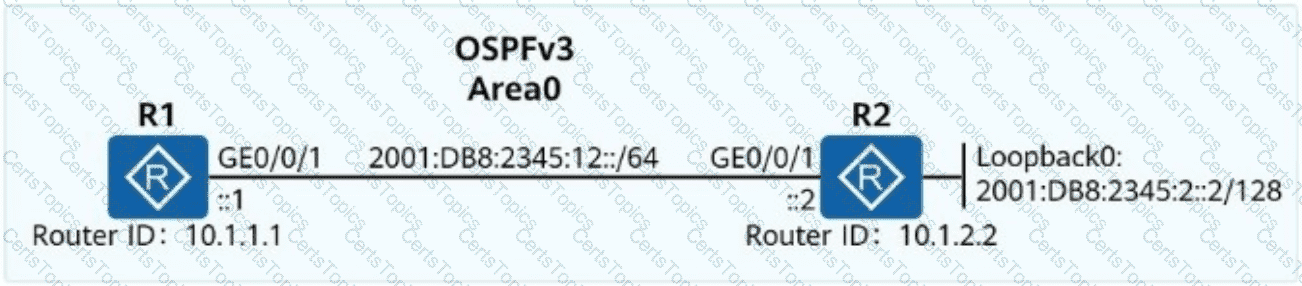

A. [R1-GigabitEthernet0/0/1] ospfv3 1 area 0:

Correct. This command enables OSPFv3 process 1 on the GE0/0/1 interface in Area 0.

B. [R1-ospfv3-1] router-id 10.1.1.1:

Correct. This correctly sets the Router ID for OSPFv3 process 1.

C. [R1-ospfv3-1-area-0.0.0.0] network 2001:DB8:2345:12::1 ::

Incorrect. OSPFv3 does not use the network command as in OSPFv2. Instead, OSPFv3 is directly configured on interfaces.

D. [R1] router id 10.1.1.1:

Incorrect. The Router ID should be set within the OSPFv3 process view, not the global configuration view.

Therefore, the correct answers are A and B.

In OSPFv3, each LSA type has a defined flooding scope:

Link-LSA (Type 8)

Advertised only on the local link

Contains router’s link-local address and prefixes

Scope: Within the local link scope ✅

AS-External-LSA (Type 5)

Used to advertise external routes from outside the AS

Flooded across the entire autonomous system, except stub/NSSA areas

Scope: Within an AS ✅

Network-LSA (Type 2)

Generated by the Designated Router (DR)

Describes all routers on a broadcast or NBMA segment

Flooded within the originating area

Scope: Within an area ✅

Correct Mappings:

Link LSA → Within the local link scope

AS-External-LSA → Within an AS

Network-LSA → Within an area

In OSPF:

An NSSA (Not-So-Stubby Area) allows external route injection via Type 7 LSAs.

These Type 7 LSAs are generated by ASBRs inside the NSSA (R4 in this case) when external or direct routes are imported.

ABRs (such as R2) between the NSSA and backbone translate Type 7 LSAs into Type 5 LSAs for flooding into other areas.

Clarification of options:

A: Incorrect — default route is not involved here; it ' s a specific route (10.1.4.4/32).

B: Correct — R2 translates Type 7 LSAs into Type 5.

C: Incorrect — default route is not being advertised.

D: Correct — R4 imports a direct route and generates Type 7 LSAs for it.

Correct answers: B, D

Let’s break it down:

A. ❌ Incorrect — Path computation can be done by both controller and ingress routers, not just the controller.

B. ✅ SR-MPLS extends IGP protocols (e.g., OSPF/IS-IS) for segment distribution, allowing smooth evolution.

C. ✅ Supports TI-LFA (Topology Independent Loop-Free Alternate) for fast failure recovery.

D. ✅ Through source routing, SR-MPLS integrates easily with applications for programmable path control.

Exact Extract – HCIE-Datacom Segment Routing Chapter:

“SR-MPLS supports distributed and centralized path computation, uses IGP extensions for deployment, and supports TI-LFA for FRR. It allows interaction with applications through programmable routing.”

Let’s analyze the scenario and each statement carefully based on OSPF path selection and BGP behavior in Huawei routers.

✅ Option A: The preferred path is R1–R3–R4.

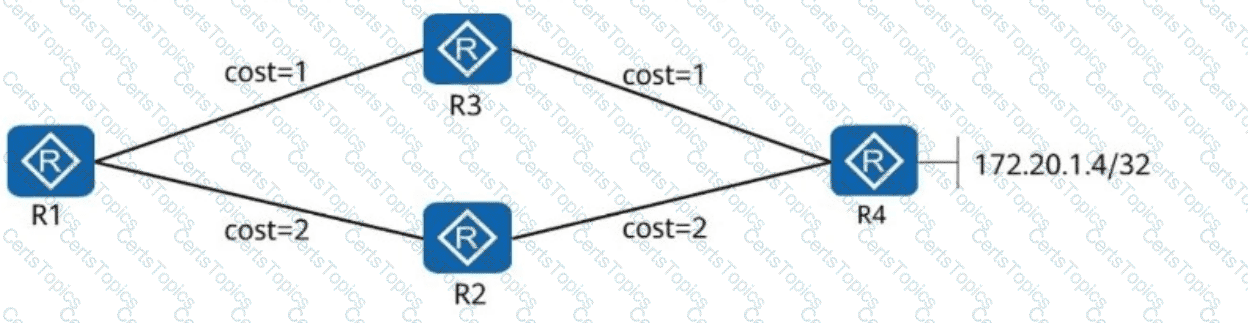

According to the OSPF cost values:

R1–R3–R4: Cost = 1 + 1 = 2

R1–R2–R4: Cost = 2 + 2 = 4

OSPF chooses the lowest-cost path to reach a destination. Therefore, R1 will prefer the R1–R3–R4 path to reach 172.20.1.4/32.

Huawei Datacom Reference:

" OSPF selects routes based on the shortest path calculated using link costs. The router always selects the path with the lowest cost. "

(Source: HCIE-Datacom Study Guide v3.0 – OSPF Path Selection, Chapter 5)

✅ Option B: If the stub router on-startup command is run on R3, packet loss occurs during the power-off process of R3 but no packet loss occurs during the startup process of R3.

When R3 is powered off, OSPF needs to reconverge, which causes temporary packet loss.

When R3 starts up, it will advertise itself as a stub router using the stub-router on-startup command. This tells OSPF not to use R3 as a transit path during the startup period, thus preventing traffic blackholing.

Huawei Datacom Reference:

" stub-router on-startup command prevents a newly started router from being used as a transit node by OSPF, allowing routing to remain stable during convergence. "

(Source: HCIE-Datacom Study Guide v3.0 – OSPF Stub Router Functionality, Chapter 6.2)

❌ Option C: The preferred path is R1–R2–R4.

This is incorrect because the OSPF path cost via R2 is higher (4) than the cost via R3 (2).

❌ Option D: Packet loss occurs during both the power-off and startup processes of R3.

Incorrect. As explained above, when the stub-router on-startup command is used, packet loss is avoided during startup, but still occurs during power-off since the alternate path requires convergence.

Huawei iMaster NCE-Campus as an Authentication Relay Agent

Huawei iMaster NCE-Campus can act as a relay agent for authentication services, forwarding authentication requests between users and authentication servers (e.g., RADIUS, LDAP).

✅ B. User Authentication

Validates user credentials before granting network access.

Supports 802.1X, Portal, MAC, and RADIUS authentication.

✅ C. User Analysis

Analyzes user behavior and access patterns to optimize security and network policies.

✅ D. Marketing

Provides customized authentication portals with advertisements and promotional messages.

Incorrect Answer:

❌ A. User Accounting – Accounting is handled by the authentication server (e.g., RADIUS), not the relay agent.

Reference from Huawei HCIE-Datacom Documentation:

Huawei iMaster NCE-Campus Authentication Guide – Relay Agent Functions

HCIE-Datacom Study Material – User Authentication and Analysis in CloudCampus

Huawei Open Programmability System (OPS) is a programmable network architecture that uses RESTful APIs. In RESTful operations:

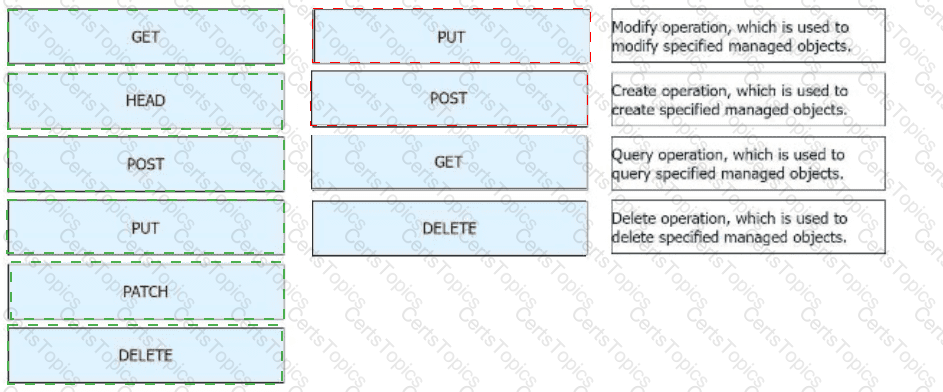

GET → Retrieve data

PUT → Configure/replace the value of a managed object

POST → Create new resources or perform non-idempotent operations

PATCH → Partially update a resource

When configuring or updating the value of a managed object (fully replacing it), PUT is the correct method.

Exact Extract – Huawei OPS and RESTful API Guide:

“The PUT method is used to configure the value of a managed object, replacing the entire object if it exists.”

SSH (Secure Shell) is a protocol designed for secure remote access and is always built on TCP, typically on port 22. UDP is not supported for SSH, as it is connectionless and doesn ' t provide the required reliability and order.

Exact Extract – Huawei Security Protocol Fundamentals:

“SSH is a TCP-based protocol. It does not support UDP. TCP ensures session reliability and data integrity, which are critical for SSH.”

Comprehensive and Detailed In-Depth Explanation:

The telemetry protocol stack is structured as follows:

Communication layer (A): Manages data transmission between the telemetry client (device) and the server.

Transport layer (B): Uses protocols such as gRPC, HTTP/2, or TCP to transmit telemetry data.

Data encoding layer (C): Encodes data using formats like JSON, Protobuf, or XML.

The Data analysis layer (D) is not part of the telemetry protocol stack itself.

Data analysis typically occurs after the data has been collected and received on the server or collector.

Telemetry focuses on data collection, encoding, transport, and transmission, not on analysis.

Therefore, the correct answer is D.

Comprehensive and Detailed In-Depth Explanation:

During a network migration test, it is crucial not only to verify that the network itself is functioning correctly but also to ensure that upper-layer application services are running properly on the newly migrated network. Migration testing aims to confirm that the transition has not disrupted service functionality.

Option A and C focus solely on network performance, which is necessary but insufficient.

Option B refers to command outputs, which are technical checks and do not guarantee service continuity.

Option D correctly identifies that successful migration is indicated by proper operation of upper-layer application services, as the primary purpose of a network is to support these applications.

Option B is incorrect because it falsely states that EBGP cannot be configured on Spoke-PE or Spoke-CE if the Hub-CE and Hub-PE run IGP. In reality, EBGP can still be used between Spoke sites and PE devices, regardless of the protocol between the Hub PE and CE. EBGP is often used for PE-CE communication, including in Hub-and-Spoke architectures.

Exact Extract - Huawei HCIE-Datacom VPN Section:

“In Hub & Spoke deployments, EBGP can be deployed between Spoke-CE and Spoke-PE. The choice of routing protocol between Hub-CE and Hub-PE does not limit this.”

Comprehensive and Detailed In-Depth Explanation:

Analyzing the output:

A. Key authentication is disabled for the tunnel: Correct. The output explicitly states " key disabled " .

B. The destination IP address of the tunnel is 10.0.3.3: Correct. The output shows " destination 10.0.3.3 " .

C. The tunnel is a GRE tunnel: Correct. The output states " Tunnel protocol/transport GRE/IP " .

D. Keepalive detection is enabled on the tunnel: Incorrect. The output clearly shows " keepalive disabled " .

Therefore, the correct answer is D because the tunnel does not have keepalive enabled.

Huawei’s Network Access Control (NAC) Portal authentication supports various identity authentication methods for user login via a web page. These include:

Username and password — standard method.

Passcode — one-time password or PIN.

SMS verification code — users receive a dynamic code via SMS for identity verification.

However:

MAC address authentication is used in MAC-based authentication, not Portal. MAC authentication allows a device to be authenticated using its MAC address without user interaction (i.e., not via a Portal page).

Correct answer: D. User’s MAC address

SRv6 Instruction Naming Conventions

SRv6 (Segment Routing over IPv6) uses segment identifiers (SIDs) with specific functions, indicated by instruction keywords:

✅ A. T: Searches a specified routing table to forward packets.

T (Table Lookup) → Performs a lookup in a specified routing table and forwards packets accordingly.

❌ B. M: Searches a Layer 2 forwarding table for unicast forwarding.

Incorrect! SRv6 does not use M for Layer 2 unicast forwarding.

✅ C. V: Searches a VPN instance routing table to forward packets.

V (VPN Routing Table Lookup) → Performs a lookup in a VPN instance (VRF) table for forwarding.

✅ D. X: Forwards packets through one or a group of specified Layer 3 interfaces.

X (Cross-connect forwarding) → Forwards packets via a specified Layer 3 interface or group of interfaces.

Reference from Huawei HCIE-Datacom Documentation:

Huawei SRv6 Configuration Guide – SRv6 SID Naming and Instruction Set

HCIE-Datacom Study Material – Segment Routing over IPv6 (SRv6) Functionality

The MPLS header consists of:

Label (20 bits) – Label value used for forwarding.

EXP (3 bits) – QoS field (Class of Service).

S bit (1 bit) – Bottom-of-Stack indicator.

TTL (8 bits) – Time-to-Live, similar to the TTL field in the IP header.

Function of TTL in MPLS:

It is used to prevent infinite loops.

Every LSR decrements the TTL by 1.

When TTL reaches 0, the packet is discarded.

This mirrors the behavior of IP TTL and ensures loop prevention in MPLS networks.

Correct answer: D. This field is used to prevent packet forwarding loops, similar to the TTL field in an IP header.

MP-BGP is an extension of BGP-4 that supports multi-protocol address families such as IPv6, VPNv4, etc. When PE and CE exchange BGP routes, there is no need to create a BGP process per VPN on the CE. The CE typically runs a standard BGP process, while the PE maintains separate VPN routing tables (VRFs).

Exact Extract - Huawei HCIE-Datacom MP-BGP Chapter:

“CE devices use standard BGP, and multiple VPNs can share the same BGP process on the CE. The PE handles VPN route separation through VRFs and MP-BGP.”

✅ Hypertext Transfer Protocol (HTTP) is an application-layer protocol used for:

Accessing web pages and hypermedia content.

Client-server communication over the internet.

Stateless communication with request-response architecture.

Key Features of HTTP:

Application Layer Protocol in the TCP/IP model.

Uses TCP (Port 80) and HTTPS (Port 443) for secure communication.

Supports REST APIs, web applications, and cloud services.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Network Protocol Guide – HTTP and Web Services

HCIE-Datacom Study Material – Application Layer Protocols in TCP/IP Model

NETCONF defines datastores to manage device configurations:

running: Active configuration in use

candidate: Staging area for changes before applying

startup: Configuration loaded on reboot

NETCONF operations:

< commit > : Applies changes from candidate → running → ✅

< delete-config > : Deletes a specified datastore (e.g., startup) → ✅

< validate > : Validates syntax/logic in the candidate datastore → ✅

Statement D is incorrect: < commit > never submits config from startup to running — that’s handled automatically at boot time, not through NETCONF commands.

Correct answer: D

VXLAN Inter-Subnet Routing with Symmetric IRB

VXLAN supports inter-subnet routing using Integrated Routing and Bridging (IRB). In symmetric IRB, both ingress and egress VTEPs perform Layer 3 forwarding to ensure efficient packet forwarding across subnets.

✅ A. Both the ingress VTEP and egress VTEP forward packets based on the Layer 3 forwarding table.

In symmetric IRB, both ingress and egress VTEPs perform Layer 3 lookup and forwarding.

The ingress routes packets before encapsulating them in VXLAN, and the egress performs another Layer 3 lookup to determine final delivery.

✅ D. When VTEPs forward inter-subnet user communication packets, the VNI carried in the VXLAN header is the L3VNI.

L3VNI (Layer 3 VXLAN Network Identifier) is used for inter-subnet routing between VXLAN segments.

WRED (Weighted Random Early Detection) helps prevent congestion by randomly discarding packets before buffers are full.

Drop Probability Behavior:

Below lower threshold = 0% drop (packets pass normally).

Between lower & upper threshold = Progressively increasing drop probability.

Above upper threshold = 100% drop (probability = 1).

✅ Reference: Huawei HCIE-Datacom Guide - WRED Mechanism

Virtual Networks in Huawei CloudCampus Solution:

Virtual networks (VNs) are segmented based on services (e.g., IoT, Guest Wi-Fi, Enterprise Wi-Fi).

Each VN has its own routing and forwarding instance (VRF).

Isolation Between Virtual Networks:

By default, different virtual networks are isolated.

If inter-VN communication is required, it must be manually configured using policy-based routing (PBR), inter-VRF routing, or firewall policies.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Solution Guide – Virtual Networks and Segmentation

HCIE-Datacom Training Material – Policy-Based Inter-VN Communication

An IPsec Security Association (SA) includes the following critical components:

SPI (Security Parameter Index)

Destination IP address

Security Protocol (AH or ESP)

Encryption/Authentication algorithms

The Source IP address is not a defining parameter of an SA. SA is unidirectional and identified based on the SPI and destination address.

Exact Extract - Huawei Security Configuration Guide – IPsec Fundamentals:

“An SA is uniquely identified by the SPI, destination IP, and security protocol. The source address is not a determining factor in the SA.”

Forwarding Equivalence Class (FEC) is a key concept in MPLS (Multiprotocol Label Switching), where packets with the same forwarding characteristics are grouped into an FEC and assigned a label.

Correct Answers (Cannot be Used for FEC Allocation):

A. Fragment Offset – Incorrect as an FEC allocation standard

Fragment offset is used for reassembling fragmented IP packets at the receiver side.

It is not relevant for MPLS label assignment.

B. Application Protocol – Incorrect as an FEC allocation standard

MPLS does not classify packets based on application-layer protocols (e.g., HTTP, FTP).

It works mainly at Layer 2 and Layer 3.

Incorrect Answers (Valid FEC Allocation Standards):

C. Destination Address – Valid FEC allocation criterion

One of the most common MPLS FEC classifications.

Packets with the same destination are grouped into the same FEC.

D. Class of Service (CoS) – Valid FEC allocation criterion

MPLS uses CoS-based traffic classification (e.g., Exp bits in MPLS headers).

Different CoS levels can be mapped to different labels.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – FEC and Label Assignment

HCIE-Datacom MPLS VPN Configuration Guide

In OSPFv3, Link-LSA (Type 8) is generated by a router for each of its interfaces to advertise:

The router ' s link-local address on that interface.

The IPv6 prefixes associated with the interface.

Flags and options, such as router priority or loopback indicators.

From the output:

Link-LSA (Interface GigabitEthernet0/0/0)

Originating Router: 10.1.2.2

Link-Local Address: FE80::2E0:FCFF:FECD:4F79

Prefix: 2001:DB8:2345:23::/64

A. The link-local address of R2’s GE0/0/0 is FE80::2E0:FCFF:FECD:4F79→ This matches the Link-Local Address field in the LSA. ✅

B. The IPv6 address prefix of R2’s GE0/0/0 is 2001:DB8:2345:23::/64→ This matches the Prefix field in the LSA. ✅

C. This LSA indicates that R2 does not support external routes but can participate in IPv6 route calculation→ ❌ Incorrect.

The Link-LSA does not provide any indication about external route capabilities.

It simply advertises interface-specific IPv6 and link-local info.

Whether R2 supports external routes depends on Type 5 (External) or Type 7 (NSSA) LSAs, not Link-LSAs.

D. This LSA is generated by R2→ The Originating Router: 10.1.2.2 is R2’s router ID, so this LSA is definitely generated by R2. ✅

Correct Answers: A, B, D

The Link-LSA in OSPFv3 contains:

The link-local address used by the originating router on the link.

A list of all IPv6 prefixes associated with the link.

Flags such as router priority and the Router-LSA options.

These LSAs are always generated by the router itself and are not flooded beyond the link.

BGP EVPN in VXLAN Tunneling

✅ A. MP_REACH_NLRI is used to carry routing information.

MP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information) is used in BGP updates to carry VXLAN reachability information.

✅ B. Several BGP EVPN routes are defined through BGP extension.

BGP EVPN introduces multiple route types, such as Type 2 (MAC/IP Advertisement), Type 3 (Inclusive Multicast), and Type 5 (IP Prefix Advertisement).

✅ D. MP_REACH_NLRI is used to carry the RT.

RT (Route Target) defines route import/export policies in VPN environments.

MP_REACH_NLRI carries the RT attribute in BGP EVPN updates.

❌ Incorrect Answer:

❌ C. MP_REACH_NLRI is used to carry the RD.

Wrong! The Route Distinguisher (RD) is carried inside BGP attributes, but not in MP_REACH_NLRI.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VXLAN BGP EVPN Configuration Guide – BGP EVPN Route Types

HCIE-Datacom Training Material – VXLAN Dynamic Tunnel Establishment

OSPFv3 (used for IPv6) uses IPv6 multicast addresses for communication between routers:

FF02::5 — All OSPF routers.

FF02::6 — All OSPF Designated Routers (DRs) and Backup Designated Routers (BDRs).

FF08::x — These are used for organization-local scope, which is not applicable to standard OSPFv3 operation.

Therefore:

C. All OSPF routers use FF02::5 — Correct

D. The DR uses FF02::6 — Correct

A and B (FF08::x) — Incorrect. These addresses are not used by OSPFv3 in this context.

Correct answers: C and D

In MPLS LDP, there are two types of sessions:

Direct LDP sessions: Established between directly connected LSRs using LDP Hellos over a link.

Remote LDP sessions (also called targeted LDP sessions): Established between non-directly connected LSRs. These require manual configuration of the remote peer.

In this scenario, SWA and SWC are not directly connected, so a remote (targeted) LDP session must be set up.

For a remote LDP session:

You must configure the remote peer using the command:

[SWA-MPLS-LDP] targeted-peer x.x.x.x

Where x.x.x.x is the LSR ID of SWC (33.3.3.3 in this case).

The current configuration does not include this required step.

Thus, the correct statement is:

D. You need to create a remote peer and specify an LSR ID for the remote peer.

Before performing a network cutover (migration or upgrade), it is essential to collect baseline data to ensure that services operate normally before and after the change.

Importance of Pre-Cutover Information Collection:

Identifies Network Baseline – Helps compare pre-cutover and post-cutover performance.

Detects Hidden Issues – Ensures that no existing network issues interfere with the cutover process.

Prevents Service Interruptions – Ensures all dependent services are accounted for.

Provides Rollback Plan – If issues arise, administrators can restore previous configurations.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Network Change Management Guide – Pre-Cutover & Post-Cutover Best Practices

HCIE-Datacom Training Material – Service Assurance & Risk Analysis

Comprehensive and Detailed In-Depth Explanation:

By default, OSPF does not automatically associate a domain ID with a process ID. The concept of " domain ID " is primarily used when redistributing routes between OSPF and BGP, particularly in MPLS VPN scenarios. The domain ID in OSPF helps maintain loop prevention and correct route advertisement between different OSPF domains. You can manually configure the domain ID using the domain-id command within the OSPF process view, but it is not inherently set to the process ID.

VRRP (Virtual Router Redundancy Protocol) and Flapping

VRRP ensures gateway redundancy by allowing multiple routers to work together as a virtual router. Flapping occurs when the master and backup routers frequently switch roles.

Causes of VRRP Flapping:

✅ A. Too small interval between Advertisement packet transmissions – Can cause flapping

If the Advertisement interval is too short, frequent VRRP state changes can occur.

✅ C. Packet loss on an interface of the backup device – Can cause flapping

If the backup router loses VRRP packets, it might assume the master is down and initiate an election.

✅ D. Flapping on the link transmitting VRRP Advertisement packets – Can cause flapping

If the link used for VRRP experiences instability, packets may be lost, triggering VRRP role changes.

Incorrect Answer Explanation:

❌ B. Inconsistent preemption delay settings – Does NOT cause VRRP flapping

Preemption delay only affects when a router takes over as master after recovering from a failure.

It does not directly cause flapping because the role change happens only after a delay, preventing frequent transitions.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VRRP Configuration Guide – Preventing VRRP Flapping

HCIE-Datacom Study Material – VRRP Timers and Stability

In Huawei’s CloudCampus Solution, VNs (Virtual Networks) are isolated by default for security purposes. To enable inter-VN communication, you must explicitly configure policies that allow traffic between different VNs.

The correct way to control and enable this communication is via routing policies, especially inter-VN routing policies on the core or border nodes.

Static routes or OSPF deployments are not sufficient or appropriate for policy-controlled VN communication in this context.

Correct answer: D. Deploy a routing policy

Comprehensive and Detailed In-Depth Explanation:

In the Huawei iMaster NCE-Campus solution, when using a third-party Portal authentication application, the following process occurs:

After the Wi-Fi user connects to the network, any attempt to access a website for the first time triggers HTTP redirection.

The user is redirected to the login page provided by the third-party authentication application.

This mechanism ensures that the user authenticates before accessing external resources.

The redirection behavior is consistent with captive portal functionality, which is standard for user authentication on Wi-Fi networks.

Therefore, the statement is TRUE.

The free mobility solution in Huawei iMaster NCE-Campus allows:

Centralized policy management via the controller

Security group-based policies, decoupled from IPs/VLANs

Automatic policy delivery, no need to configure repeatedly per device

Dynamic mapping of users and IPs via security group subscriptions

Exact Extract - Huawei iMaster NCE-Campus Solution White Paper:

“Free mobility uses security groups and centralized control to enable consistent policy enforcement, avoiding repetitive configurations and simplifying policy management.”

Comprehensive and Detailed In-Depth Explanation:

An HTTP response from the server to the client typically includes the following components:

Protocol version (C): Specifies the HTTP version used (e.g., HTTP/1.1).

Status code (B): Indicates the response result (e.g., 200 for OK, 404 for Not Found).

Reason phrase (A): A textual description associated with the status code (e.g., " OK " , " Not Found " ).

Headers and Body: Contain additional information and the actual response content.

URI (D): The Uniform Resource Identifier is part of the HTTP request and not the HTTP response. Therefore, D is the correct answer.

The command output shows:

* > i before both networks, which means these routes are the preferred routes (*) and are learned via internal BGP (i).

Two networks are listed: 3002::3 and 3002::4, which means R1 does have these two routes in its BGP IPv6 routing table.

For 3002::4, the path origin shows 65001 i, which means this route originated from AS 65001 and was learned through IBGP.

The AS Path attribute is only shown for 3002::4, but both routes are clearly present.

Therefore, the correct conclusion is:

D. R1 has routes 3002::3/128 and 3002::4/128.

Huawei iMaster NCE-Campus provides open APIs for seamless integration with third-party applications and services. Each API serves a specific purpose in managing network security, operations, analytics, and user interactions.

1. Authentication and authorization → Third-party authentication API

This API is used to integrate third-party authentication systems, such as:

LDAP (Lightweight Directory Access Protocol)

RADIUS (Remote Authentication Dial-In User Service)

OAuth/OpenID authentication

It ensures secure user identity verification, access control, and single sign-on (SSO) in CloudCampus networks.

2. Network O & M → Infrastructure API

The Infrastructure API provides tools for network monitoring, diagnostics, and automated management.

It is used for:

Device status monitoring

Network topology visualization

Fault detection and real-time alerts

Performance optimization

3. LBS (Location-Based Services) → LBS API

The LBS API enables applications to access location data collected by the network.

It is used for:

Tracking users or assets within a campus network

Heatmap generation and movement analytics

Geo-fencing and location-based policies

4. Crowd profiling → VAS API

VAS (Value-Added Services) API is designed for advanced analytics and business intelligence.

It supports:

User behavior analytics

Demographic profiling

Marketing strategies based on network usage patterns

Reference from Huawei HCIE-Datacom Documentation:

HCIE-Datacom Training Guide – CloudCampus Solution

Huawei iMaster NCE-Campus API Documentation

Huawei CloudCampus Solution Whitepaper – Open API and Use Cases

Understanding MPLS Forwarding Mechanism

MPLS (Multiprotocol Label Switching) is a high-performance forwarding mechanism that operates on two planes:

1️⃣ Control Plane:

Establishes Label Switched Paths (LSPs) using protocols like LDP (Label Distribution Protocol), RSVP-TE (Resource Reservation Protocol - Traffic Engineering), or BGP-LU (BGP Label Unicast).

Assigns labels to packets based on routing policies.

2️⃣ Data Plane (Forwarding Plane):

Uses a Label Forwarding Information Base (LFIB) instead of traditional IP routing.

Packets are forwarded based on labels, not IP addresses.

Analysis of the Answer Choices

✅ C. The system automatically assigns an ID to the upper-layer application that uses a tunnel. This ID is also called the tunnel ID.

Correct: MPLS assigns a Tunnel ID to applications that utilize tunnels (e.g., VPNs, MPLS-TE, or L2/L3 services).

This ID helps differentiate between various tunnel applications, ensuring traffic follows the correct LSP.

❌ A. After an IP packet enters an MPLS domain, the MPLS device forwards the packet based on FIB table queries.

Incorrect: MPLS routers do NOT use the FIB (Forwarding Information Base) for forwarding once labels are assigned.

Instead, they use LFIB (Label Forwarding Information Base) to switch packets based on labels.

❌ B. If the tunnel ID is 0x0, the MPLS forwarding process starts.

Incorrect: If the Tunnel ID is 0x0, MPLS does NOT start; it means no label is assigned, and traditional IP forwarding occurs.

❌ D. If the tunnel ID is not 0x0, the normal IP forwarding process starts.

Incorrect: If the Tunnel ID is not 0x0, MPLS forwards traffic using label switching, not IP forwarding.

When Spanning Tree Protocol (STP) is not enabled on a network, loops can occur in Layer 2 Ethernet networks, leading to various network issues. STP is designed to prevent loops by blocking redundant paths, and its absence can cause broadcast storms, MAC address table instability, and resource exhaustion. Let’s analyze each option in the context of Huawei HCIE Datacom documentation and network behavior:

A. A loop alarm is generated on the LAN switch.

This option is incorrect. Huawei switches, as per HCIE Datacom standards, do not automatically generate a specific " loop alarm " unless configured with loop detection features (e.g., Huawei’s Loop Detection Protocol or similar mechanisms). Without STP or loop detection enabled, the switch may not explicitly generate an alarm for a loop; instead, it will exhibit symptoms like broadcast storms or flapping MAC entries. Therefore, this is not a direct symptom of an STP-less loop. Reference: Huawei HCIE Datacom V3.0 Training Materials, Section 4.2 – Spanning Tree Protocol and Loop Prevention.

B. CPU usage is too high.

This option is correct. When a loop occurs without STP, broadcast packets (and sometimes multicast or unknown unicast packets) circulate endlessly in the network. This leads to excessive processing by switches as they handle these packets, resulting in high CPU usage. Huawei switches, as described in HCIE Datacom documentation, can experience CPU overload due to continuous packet forwarding and processing in a looped environment. Reference: Huawei HCIE Datacom V3.0, Chapter 5 – Switch Performance and Loop Management.

C. MAC entries flap.

This option is correct. In a loop without STP, switches continuously receive frames from multiple ports, causing MAC address tables to update repeatedly as the same MAC address appears on different ports. This " flapping " of MAC entries destabilizes the network and can lead to incorrect frame forwarding. Huawei HCIE Datacom emphasizes MAC address table stability as a critical aspect affected by loops, as outlined in Section 4.3 – Ethernet Switching and Loop Mitigation. Reference: Huawei HCIE Datacom V3.0, Section 4.3.

D. Host receives a large number of broadcast packets.

This option is correct. A loop without STP causes broadcast packets to circulate indefinitely, creating a broadcast storm. Hosts connected to the network will receive an overwhelming number of these packets, potentially leading to performance degradation or even network timeouts. This is a well-documented symptom in Huawei HCIE Datacom training, specifically in discussions about loop prevention mechanisms. Reference: Huawei HCIE Datacom V3.0, Chapter 4 – Layer 2 Loop Prevention.

Thus, the correct symptoms of a loop occurring due to the absence of STP include high CPU usage, flapping MAC entries, and hosts receiving a large number of broadcast packets. Option A is incorrect as it requires specific loop detection configuration, which is not implied in the question.

Comprehensive and Detailed In-Depth Explanation:

An NVE (Network Virtualization Edge) interface is responsible for connecting physical or virtual devices to a VXLAN network. It functions as the VTEP (VXLAN Tunnel Endpoint) and supports encapsulation and decapsulation of VXLAN packets.

Layer 2 VXLAN gateway (D) is used for intra-subnet communication, but the NVE interface is the actual point where traffic enters the VXLAN network.

Layer 3 VXLAN gateway (A) is used for inter-subnet communication.

VLANIF interface (C) is used for VLAN-based communication, not directly for VXLAN.

Therefore, the NVE interface (B) is the correct answer as it serves as the traffic ingress and egress point for the VXLAN network.

Huawei IPsec supports multiple modes for establishing Security Associations (SAs):

A. Template negotiation — Used in IPsec policy templates and dynamic VPNs.

B. IKE auto-negotiation mode — Automatically negotiates parameters via IKE Phase 1/2.

C. Certificate negotiation — IPsec peers can authenticate each other using certificates during IKE negotiation.

D. Manual mode — Static IPsec SAs can be manually configured without IKE, often used in simple or static topologies.

Exact Extract - Huawei Security Configuration Guide (USG Series):

“IPsec SAs can be established manually or dynamically through IKE, including using PSKs or certificates. Template-based approaches simplify large-scale deployment.”

The basic constructs in YANG data modeling include:

Leaf node – A single data element with a specific type (e.g., integer, string).

List node – A repeating set of elements, each structured the same.

Incorrect options:

A. Set node – ❌ Not a valid YANG construct.

D. Tree node – ❌ Not an individual data model element. The entire model forms a tree structure, but there is no “tree node” in YANG syntax.

Exact Extract – Huawei YANG Modeling Fundamentals:

“YANG defines elements such as leaf, list, container, choice, and leaf-list. ' Set ' and ' tree ' are not YANG node types.”

Comprehensive and Detailed In-Depth Explanation:

The IP prefix list configuration:

ip ip-prefix TEST permit 10.0.0.0 24 less-equal 30

10.0.0.0/24: Matches because it falls within the 10.0.0.0/24 prefix with the same prefix length (24).

10.0.1.0/24: Matches because it also falls within the /24 network range.

10.0.2.0/24: Matches for the same reason as the above.

10.0.0.1/30: Matches because it falls within the /24 prefix and its subnet length (30) is within the less-equal 30 range.

The prefix list permits any route that falls within the 10.0.0.0/24 network with a subnet mask ranging from /24 to /30. Therefore, all given routes are matched.

In OSPFv3 (used for IPv6), Link LSAs (Type 8) are not advertised throughout the entire area. Instead, they are only advertised on a specific link (i.e., the local link). This differs from OSPFv2, where LSAs like Type 1 or Type 2 are advertised across the area.

Exact Extract - Huawei HCIE-Datacom V1.0 Courseware - Chapter: OSPFv3 Operation

“Link LSAs are generated by routers for each attached link and sent only on that link, not flooded throughout the area.”

Comprehensive and Detailed In-Depth Explanation:

OSPFv3, which supports IPv6, uses a router ID that is 32 bits in length, similar to OSPFv2. The router ID in OSPF is always a 32-bit number, typically represented in an IPv4 address format (dotted decimal). Although OSPFv3 is designed to support IPv6, it still relies on a 32-bit router ID for identification, which must be unique within an OSPF domain. The router ID does not change even though the protocol itself supports IPv6 addresses (128 bits).

Intra-Area-Prefix-LSA (Type 9) is used in OSPFv3 to carry IPv6 prefix information for a router or network and is flooded within the area.

Link-LSA (Type 8) is only sent on the local link and is not flooded throughout the area.

Inter-Area-Prefix-LSA (Type 3) and Inter-Area-Router-LSA (Type 4) are also flooded within an area but originate from ABRs, typically for cross-area route advertisement.

That said, Intra-Area-Prefix-LSA is specifically flooded within an area, matching the context of the question directly.

Exact Extract - Huawei HCIE-Datacom OSPFv3 Module:

“Intra-Area-Prefix-LSAs are flooded within the area and advertise the IPv6 prefixes associated with router and network LSAs.”

When selecting core devices for a WAN in enterprise networks, considerations typically include:

Service volume: Ensures the core device can handle expected traffic.

Physical location: Important for latency, redundancy, and network design.

Node quantity: Affects topology, scalability, and routing complexity.

Device naming conventions, however, are purely administrative and do not affect the functional selection of core devices.

Correct answer: A. Device naming conventions

Comprehensive and Detailed In-Depth Explanation:

BGP4+ (BGP for IPv6) uses the MP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information) attribute to advertise IPv6 routes. This attribute is part of BGP ' s multiprotocol extensions (RFC 2858), allowing BGP to support multiple address families, including IPv6.

MP_REACH_NLRI: Advertises reachable IPv6 prefixes along with next-hop information.

MP_UNREACH_NLRI: Used to withdraw previously advertised IPv6 routes.

Since IPv6 addresses are significantly different from IPv4 addresses in structure and length (128 bits), the traditional BGP update message format (which supports only IPv4) is insufficient. The MP_REACH_NLRI attribute solves this by carrying IPv6-specific information.

The Protocol Trace function of iMaster NCE-CampusInsight allows O & M teams to analyze the full packet exchange process (e.g., DHCP, authentication, IP acquisition) between clients and the network. In this scenario, it helped pinpoint DHCP address pool exhaustion as the cause.

Exact Extract - Huawei iMaster NCE-CampusInsight Product Documentation:

“The Protocol Trace function visualizes packet-level interaction processes for DHCP, ARP, 802.1X, and others, allowing fast identification of root causes for network access issues.”

In MPLS (Multiprotocol Label Switching), Label Switching Routers (LSRs) handle packets based on FECs (Forwarding Equivalence Classes) and their positions in the label-switched path:

Ingress LSR: The entry point for labeled packets; it classifies packets into FECs and assigns the initial label.

Transit LSR: Intermediate routers that swap labels and forward packets along the LSP.

Egress LSR: The last router in the LSP that removes the label and forwards the packet normally.

An LSR cannot be both an ingress and a transit router for the same FEC, because an ingress LSR is defined as the starting point for that specific FEC ' s LSP. If it’s the ingress, it means the labeled path starts there, so it can ' t be in the middle (transit) of that same path.

Therefore, the statement is FALSE.

DiffServ QoS model operates on per-hop behavior (PHB) and has these limitations:

A. ✅ Single-hop behavior; no end-to-end path awareness.

B. ✅ Cannot guarantee dedicated resources to individual users.

C. ✅ Does not address traffic bursts; congestion is still possible.

D. ✅ Queue limitations hinder fine-grained SLA assurance and deterministic delay.

Exact Extract – HCIE-Datacom QoS Section:

“DiffServ provides PHB without path-level control. It cannot guarantee SLA for individual users due to limited queuing mechanisms and lack of end-to-end visibility.”

In SR-MPLS (Segment Routing over MPLS), prefix SID conflicts may occur if multiple prefixes are assigned the same SID or vice versa.

Conflict resolution principle (Huawei standard):

When there are multiple SIDs for the same prefix, the SID with the lowest value wins.

When the same SID is assigned to multiple prefixes, the prefix with the smallest address wins.

Apply to this case:

Conflict: Two entries for 1.1.1.1/32 with SID 2 and SID 1.

SID 1 is lower, so 1.1.1.1/32 → SID 1 is selected.

Correct answer: D. 1.1.1.1/32 → SID 1

To automatically enable MPLS on an interface in SR-MPLS:

Segment routing must be enabled globally in the system view → ✅

Segment routing must also be enabled under the IGP process, and IGP (OSPF or IS-IS) must be enabled on the interface → ✅

Clarifications:

SRGB (Segment Routing Global Block) configuration defines SID ranges but does not trigger MPLS enablement → ❌

Static adjacency labels are advanced options and do not auto-enable MPLS → ❌

Correct answers: B, D

Huawei Switch Deployment Methods in CloudCampus

✅ A. DHCP Option 148 – Used for automatic device registration in iMaster NCE-Campus.

✅ B. CLI (Command-Line Interface) – Traditional manual configuration method using the command-line interface.

✅ C. Web Interface – Web GUI-based configuration for easy management.

✅ D. Huawei Registration Center – Cloud-based automatic registration and provisioning for plug-and-play deployment.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Deployment Guide – Device Onboarding Methods

HCIE-Datacom Training Material – Zero-Touch Deployment (ZTP) in CloudCampus

Understanding OSPF Neighbor States

OSPF (Open Shortest Path First) establishes neighbor relationships through several states:

1️⃣ Down: No Hello packets received.

2️⃣ Init: Router receives Hello packets but its own Router ID is missing in the received packets.

3️⃣ 2-Way: Routers see each other in Hello packets. (Stable state for non-DR/non-BDR routers).

4️⃣ ExStart: Routers start exchanging LSAs but may face MTU mismatches.

5️⃣ Exchange: Routers send Database Description (DBD) packets to synchronize link-state databases.

6️⃣ Loading: Routers exchange Link-State Requests (LSRs) & Updates (LSUs) to fully sync.

7️⃣ Full: Routers are fully synchronized.

Analysis of the Answer Choices

✅ A. For non-DR and non-BDR routers on an Ethernet link, the 2-Way state is acceptable.

Correct: Non-DR/Non-BDR routers remain in 2-Way state since they don’t need to form full adjacency.

✅ B. The Init state indicates that the router has received Hello packets from its neighbors, but the received Hello packets do not contain the OSPF RID of the receiving router.

Correct: If an OSPF router receives a Hello but does not see its own Router ID, it stays in the Init state.

✅ C. The ExStart state indicates that two neighbor routers have inconsistent MTUs or the same OSPF Router ID (RID).

Correct: If MTUs mismatch or RIDs conflict, the DBD exchange fails, causing routers to remain in ExStart state.

❌ D. The Attempt state indicates that the router does not send unicast Hello packets to configured neighbors.

Incorrect:

In Attempt state, routers send unicast Hello packets to manually configured neighbors (common in NBMA networks).

If no Hello responses are received, they remain in Attempt state, but they DO send Hellos.

Real-World Application

OSPF Troubleshooting: Identifying routers stuck in Init or ExStart states can point to MTU mismatches or neighbor misconfigurations.

NBMA Networks (Frame Relay, DMVPN): Manually configured neighbors may stay in Attempt state if Hello packets are lost.

✅ Reference: Huawei HCIE-Datacom Study Guide – OSPF Neighbor States & Troubleshooting

PQ (Priority Queuing) ensures low-latency services like voice and video are prioritized.

WFQ (Weighted Fair Queuing) fairly allocates remaining bandwidth to services like FTP.

Option B provides a balanced approach: guarantees for voice/video via PQ, and fairness for FTP via WFQ.

Exact Extract - Huawei HCIE-Datacom QoS Module:

“Voice and video traffic should be handled by PQ to minimize delay and jitter. Non-critical services such as FTP should be placed in WFQ queues to ensure bandwidth fairness.”

Comprehensive and Detailed In-Depth Explanation:

In the inter-AS MPLS VPN Option B solution:

Option B establishes a multi-hop eBGP connection between the ASBRs (ASBR-PE1 and ASBR-PE2) to exchange VPNv4 routes.

In this setup, the ASBRs exchange labeled VPNv4 routes via MP-BGP (Multiprotocol BGP).

The command:

[ASBR-PE1-bgp-af-vpnv4] undo peer 10.0.34.4 enable

is used to disable VPNv4 route exchange between the ASBR-PE1 and ASBR-PE2.

If this command is executed, ASBR-PE1 will not transmit VPNv4 routes to ASBR-PE2, breaking the inter-AS VPN connectivity.

Therefore, the statement is FALSE because ASBR-PE1 and ASBR-PE2 must exchange VPNv4 routes to maintain connectivity between the VPN sites across different ASes.

GRE (Generic Routing Encapsulation) has the following benefits:

B. VPN Construction — GRE is often used to build site-to-site VPNs.

C. ARP Encapsulation — GRE supports Layer 2 protocol encapsulation such as ARP.

D. Multicast Support — GRE tunnels can encapsulate multicast packets, unlike traditional IPsec.

A. Enlarging the hop limit is incorrect — GRE does not inherently change TTL or hop behavior; routing protocols still use standard IP processing.

Exact Extract - Huawei HCIE-Datacom Tunneling Chapter:

“GRE can encapsulate multicast and broadcast packets and supports L2 protocols like ARP. It is often used for VPN construction over the internet.”

The incorrect statement is Option C, which says “A site can only belong to only one VPN.” This is false because a single site can belong to multiple VPNs if needed. For example, in some enterprise designs, a site may be part of both the Finance VPN and the Management VPN by configuring multiple routing instances (VRFs) and policies accordingly.

Exact Extract - HCIE-Datacom VPN Technologies Chapter:

“A site may be associated with one or more VPNs, depending on business requirements. This is achieved through VRF and route-target configurations.”

FEC (Forwarding Equivalence Class) in MPLS is a group of packets that are forwarded in the same manner. MPLS can classify packets into FECs based on factors such as:

Destination IP address

Source address

CoS (Class of Service)

Application type

However, Fragment Offset, which is part of the IP header used for IP fragmentation, is not used in FEC classification. Fragment offset is more relevant to how IP packets are reconstructed and not suitable or used as a classification standard for forwarding decisions in MPLS.

Exact Extract - Huawei HCIE-Datacom V1.0 MPLS Chapter:

“FEC classification may be based on various parameters including destination address, source address, and even CoS values. However, fragment offset is not used as an FEC criterion, as MPLS forwarding occurs before IP reassembly.”

Comprehensive and Detailed In-Depth Explanation:

The diagram shows a WAN network where Segment Routing (SR) is used in conjunction with the iMaster NCE controller. The network consists of Data Centers (DCs), Branches, Provider Edge (PE) routers, and Route Reflectors (RR) within AS 65600. Let ' s analyze each network technology and its placement in the scenario.

1. BGP-LS (Border Gateway Protocol - Link State):

Application Location: 1 (PE to RR)

Explanation:

BGP-LS is used to collect and distribute network topology information from the IGP (Interior Gateway Protocol) domain.

It enables the iMaster NCE (controller) to learn about the network topology and SR information from PE routers.

The PE routers send their link-state information to the RR using BGP-LS.

Why Location 1:

The RR collects topology data from PEs and forwards it to the controller for path computation.

2. BGP (Border Gateway Protocol):

Application Location: 2 (RR to iMaster NCE)

Explanation:

Standard BGP is used for route distribution and network connectivity.

The RR uses BGP to exchange route information with the controller (iMaster NCE).

Why Location 2:

The RR aggregates routes and exchanges them with the iMaster NCE for centralized management.

3. MP-IBGP (Multiprotocol Internal BGP):

Application Location: 3 (PE to PE)

Explanation:

MP-IBGP is used to exchange VPNv4 and VPNv6 routes between PE routers within the same AS.

It allows PEs to advertise VPN routes across the backbone network.

Why Location 3:

PEs need to communicate VPN-related information within the AS, ensuring end-to-end connectivity between DCs and branches.

4. BGP SR-Policy/PCEP (Path Computation Element Protocol):

Application Location: 4 (iMaster NCE to PE)

Explanation:

BGP SR-Policy and PCEP are used by the controller to distribute SR policies to the PE routers.

The iMaster NCE calculates optimal paths and sends the SR policies to PEs via BGP SR-Policy or PCEP.

Why Location 4:

The controller programs the Segment Routing paths directly to the PEs for optimal traffic engineering.

Why This Mapping Is Correct:

The mapping is based on the roles and functions of each protocol within the SR-based WAN architecture. The controller uses BGP-LS to learn topology, BGP for route reflection, MP-IBGP for VPN route exchange, and BGP SR-Policy/PCEP for path computation and distribution.

When port security is enabled and the maximum number of learned MAC addresses is reached, the switch can trigger multiple security actions depending on configuration:

Discard packets with unknown source MACs

Generate alarms

Shut down the port (set to error-down)

Do all the above combined (default behavior)

The most comprehensive and commonly configured behavior is error-down + alarm generation, which corresponds to Option D.

Exact Extract - Huawei HCIE-Datacom Switching Guide:

“When the MAC address limit is reached on a port with port security enabled, the system can generate alarms and set the port to error-down state based on security policies.”
