Free and Premium Cisco 300-425 Dumps Questions Answers

 For a pre-deployment site survey, it’s important to know the AP model to understand the capabilities and coverage pattern of the APs. Additionally, knowing the number of clients helps to design a network that can handle the expected client density.

 In the scenario described, where some APs did not failover to their secondary controller despite having sufficient licenses, the issue likely lies with the configuration of the APs to recognize the secondary controller. Since the controllers are not in a mobility group but have A records for their hostnames in DNS, this suggests that they rely on DNS for AP discovery and failover. If APs are not failing over as expected, it could be due to an incorrect IP address configured for the secondary controller on the AP or within DNS. The exhibit shows that the “Secondary Controller” field has an IP address of “10.42.89.11”, which should be verified against DNS records and actual controller settings to ensure accuracy. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)

The Catalyst 9300X-48HX switches support PoE, which can power the 9166 APs. To ensure that all APs run with full functionalities, including PoE, the engineer should connect the APs to all available ports on the stack of two Catalyst 9300X-48HX switches. This will provide sufficient power and connectivity for the APs to operate effectively. References: Cisco Catalyst 9300X switch specifications and PoE requirements for 9166 APs.

FlexConnect mode is ideal for branch offices and remote locations where it’s necessary to minimize wireless traffic tunneled back to the Wireless LAN Controller (WLC). In FlexConnect mode, APs can perform client authentication locally and bridge traffic onto the local network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

EoIP (Ethernet over IP) is used for communication between controllers in a guest anchor setup, allowing for seamless roaming. Inter-Controller Roaming Mechanism (IRCM) support is necessary for the controllers to facilitate roaming across different wireless LAN controllers.

 To ensure the anchored traffic remains up if a single WLC in the high-availability cluster fails, the mobility MAC address for the high-availability cluster should be configured. This allows the APs to recognize the cluster as a single entity, maintaining the CAPWAP tunnel to the anchor WLC in the DMZ even if one of the WLCs in the cluster fails.

FlexConnect APs must be in a FlexConnect group to support 802.11r Fast Transition (FT). This grouping allows for local authentication and key management, which are necessary for fast roaming methods that improve voice quality and wireless IP phone performance during roaming.

References: The official Cisco FlexConnect configuration guide

 The redundancy management heartbeat in Cisco Wireless LAN Controllers (WLCs) running 8.x code in Stateful Switch Over (SSO) mode uses UDP packets for communication. When troubleshooting connectivity issues between two WLCs, it is essential to filter for UDP packets in a packet capture to verify the heartbeat communication. The heartbeat packets are sent on a specific UDP port, and filtering for this port can help isolate the heartbeat traffic from other types of traffic in the capture.

Quality of Service (QoS) is essential for prioritizing cloud services like email and real-time communication. It helps in managing bandwidth allocation and ensuring that critical applications receive the necessary resources for optimal performance.

 The wireless architecture described is a centralized deployment. This is characterized by access points distributed across multiple buildings and managed centrally by Wireless LAN Controllers (WLCs). Centralized deployments are common in larger environments like a technology company campus because they allow for centralized management, scalability, and advanced features such as load balancing and fault tolerance.

References:

• CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice Tests

For optimized roaming across multiple Wireless LAN Controllers (WLCs) with Cisco 8821 phones, configuring mobility groups between WLCs allows for seamless roaming and sharing of security contexts. Additionally, using Cisco Centralized Key Management (CCKM) for authentication reduces the time required for re-authentication during roaming, providing a more efficient transition between access points3

Jitter is the variation in time between packets arriving, caused by network congestion, timing drift, or route changes. In a Wi-Fi network designed to support video over Wi-Fi, if video multicast traffic is unreliable despite good coverage, jitter is a key performance metric to investigate. High jitter can cause the video to play erratically, freeze, or have sync issues between video and audio streams

In Cisco wireless networks, access points can be configured with failover priorities ranging from 1 to 4, with 1 being the highest priority and 4 being the lowest. An access point with priority 1 is considered critical and will be given preferential treatment in failover situations, ensuring that it reconnects to a backup controller before access points with lower priorities

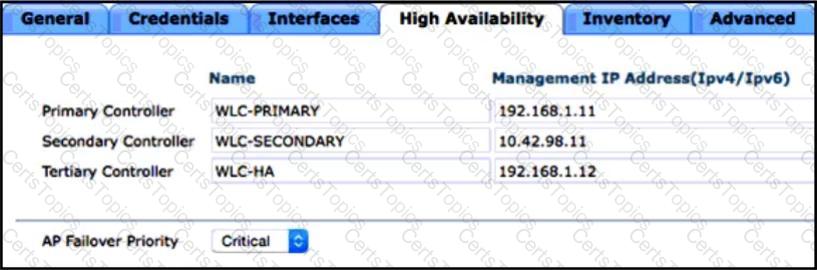

 To ensure that the most critical APs at remote sites remain functional in the event of a failure, the Global AP Failover Priority feature can be used. By setting the priority of the most important APs to “critical”, these APs will be given precedence over others during a failover scenario. This allows the engineer to prioritize which APs should remain online without impacting the main site’s APs, which are set to a “high” priority.

 The concern with existing gigabit uplinked switches providing 802.3at is the output power limitation. 802.11ac Wave 2 APs may require more power than what 802.3at can deliver, especially for features like Multi-User Multiple Input Multiple Output (MU-MIMO). References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

Setting AP fallback to disabled will prevent the AP from moving back to its defined Cisco WLCs automatically after failing over to an undefined controller. This allows manual intervention to determine when the AP should revert to its primary controller.

 LAG-based redundancy is chosen for its ability to provide continuous connectivity as long as one port in the LAG is operational (B), utilize the full bandwidth capacity of all the links in the LAG (E), and allow for the grouping of ports into multiple LAGs for increased redundancy and bandwidth (F). References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 To predict the number of APs needed to support approximately 300 wireless devices on a new floor with an 802.11ac network, the Demand Settings in the Cisco Prime Infrastructure Planning Tool must be adjusted. This setting allows the planner to specify client density and throughput requirements, which are crucial for determining the correct number of APs.

 Cisco Hyperlocation requires a high degree of accuracy in client location tracking. A recommended cell overlap of 50% ensures that client devices are consistently within the range of multiple access points, which improves location accuracy and reliability. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 Cisco FlexConnect mode is designed for branch offices that lack a wired backhaul. It allows APs to switch client data traffic locally while still performing client authentication centrally. This mode provides the flexibility needed for branch deployments, ensuring that client traffic is handled efficiently even if the WAN link to the central site is down. References: Cisco FlexConnect technical documentation and Designing Cisco Enterprise Wireless Networks (ENWLSD) training.

The WPlus license is suitable for environments using OfficeExtend Access Points (OEAP), which allows employees to work from home with a seamless connection to the corporate wireless network. The WPlus license enables features such as advanced security and increased scalability for remote workers. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 For supporting hyperlocation, it is recommended that APs be aligned in the same direction. This uniform alignment helps in accurately determining the AP Azimuth, X-Y, and ceiling height information, which is crucial for hyperlocation accuracy and minimizes confusion and user-entered errors.

 When a Wireless LAN Controller (WLC) SSO is set up between two WLCs in a service provider network, and there is a failover, the secondary WLC should ideally support the same client count as the primary. If only about half of the original client count is showing on the secondary WLC post-failover, it suggests that the WLCs had not completed the database synchronization before the primary WLC failed. This incomplete sync would result in a loss of client information, leading to a reduced client count on the secondary WLC.

The Virtual Switching Link (VSL) is essential for communication between the active and standby Wireless LAN Controllers (WLCs) in a Stateful Switch Over (SSO) setup. If the VSL goes down, it can lead to a split-brain scenario where both WLCs assume they are active, causing network disruptions and inconsistencies in client handling. References: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425) Official Cert Guide.

 Adjusting the RX-SOP (Receiver Start of Packet Detection Threshold) can help to control cell size by making APs less sensitive to low-level signals, thus requiring clients to be closer to the AP to connect, which can ensure they connect to the nearest AP with the highest data rates.

Mobility domains and mobility groups are concepts used in Cisco wireless networking to manage client roaming and controller interaction. When Wireless LAN Controllers (WLCs) are part of the same mobility domain, they share a common database, allowing them to communicate and facilitate seamless client roaming. A mobility group is a subset of this domain, where specific WLCs work together more closely to share client context and security credentials. This ensures that when a client roams from one access point (AP) to another across different controllers, the authentication and security context are maintained, allowing for a seamless transition without the need to re-authenticate. The mobility group also manages AP fail-over between controllers, ensuring clients can maintain their connections even if their current AP fails or becomes unreachable.

 Frequent disconnections may occur if the RSSI threshold set for optimized roaming is too high, causing clients to attempt roaming too late. Disabling optimized roaming and enabling 802.11v support allows for better client steering by the AP, as 802.11v includes the BSS Transition Management feature, which guides clients to a better AP based on the network’s conditions.

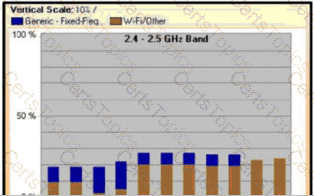

When performing a Layer 1 survey using Metageek Chanalyzer, the Cisco CleanAIR AP should be configured in Monitor mode. This mode allows the AP to scan the environment for interference without serving clients.

The data path being down while the control path is up indicates an issue with the data plane security configuration. The data-dtls setting on the AireOS 5520 WLC is responsible for enabling Datagram Transport Layer Security (DTLS) for the data plane, which encrypts the data traffic between the controllers. If this setting is disabled, the data path cannot be established securely, leading to the observed issue. Therefore, enabling data-dtls on the AireOS 5520 WLC is necessary to resolve the data path downtime.

 For Stateful Switchover (SSO) to function correctly, the redundancy ports on both the primary and secondary controllers must be directly connected. This allows for the necessary state and configuration information to be synchronized between the two controllers, preventing the secondary controller from entering maintenance mode in the event of a failover.

 In an office environment with cubicles, signal propagation is most commonly affected by absorption. This is because the materials used in cubicle walls, such as fabric and other dense substances, tend to absorb the radio frequency (RF) signals used in WLANs, leading to attenuation.

Aggregated Probe Response Optimization should be enabled on the controller to optimize roaming, especially for environments with a high density of Apple OS devices. This feature reduces airtime consumption and overhead by aggregating probe responses, which can improve the roaming experience for the employees.

An RSSI value of -77 dBm is within the range that a 5 GHz radio can receive and decode, provided it’s not below the RX-SOP threshold set for the RF profile. Since the RF profile is set to Medium for 802.11a, which operates in the 5 GHz band, the AP’s 5 GHz radio will decode the frames.

 When a data path mobility tunnel fails to come up, one of the troubleshooting steps is to check if the necessary ports are open and not being blocked by any firewalls in the path. Since the mobility tunnel uses CAPWAP, which operates on UDP ports 16666 (control path) and 16667 (data path), establishing a Telnet connection to the firewall on port 16666 can help determine if the control path is open and if there are any issues that need to be addressed3.

The sticky client issue occurs when a wireless client device clings to a suboptimal access point instead of roaming to a better one with a stronger signal. Enabling Optimize Roaming on the Cisco 9800 Series Wireless Controller can alleviate this issue. This feature prompts clients to roam by disassociating them when their signal strength drops below a threshold, encouraging them to seek a better connection.

When configuring high availability on an access point, a network engineer can configure a maximum of two controllers. One serves as the primary controller, and the other serves as the secondary controller.

To reduce full authentication requests and optimize roaming, enabling Cisco Centralized Key Management (CCKM) on the voice SSID is effective. CCKM allows for fast re-authentication during roaming, which is beneficial for voice applications. Adding APs to a FlexConnect group helps manage APs in remote branches more efficiently.

For mobility tunnels to come up between WLCs, they need to be part of the same mobility group. If they are configured with different mobility groups, the mobility tunnels will not establish, preventing the WLCs from sharing client, AP, and security information.

A centralized wireless architecture is suitable for a college with multiple buildings. It allows for centralized management of WLCs and supports seamless roaming for wireless clients across different APs and controllers.

For handheld mobile scanners processing credit card payments, security and seamless roaming are critical. The 802.11w standard, also known as Protected Management Frames (PMF), provides enhanced security that helps prevent disconnections and issues when roaming between access points. Incorporating 802.11w in the design ensures that the scanners maintain a secure and consistent connection while moving throughout the environment. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice

 Creating AP groups for each location allows for the mapping of specific VLANs to an internal SSID tailored for that area. This approach enables clients to be on different subnets based on their building location within a single controller environment.

In a high availability setup with Cisco 5508 Wireless LAN Controllers, the standby controller can be accessed via the console connection and the service port interface. The console provides direct access, while the service port interface allows for network-based access to the standby unit for management purposes.

 Metal doors cause the most signal attenuation in wireless design due to the properties of metal reflecting and absorbing radio waves, which can significantly reduce signal strength. Unlike materials such as cinder block or glass, metal can create a complete barrier for the signal, leading to a phenomenon known as “Faraday Cage” effect, where the metallic enclosure blocks electromagnetic fields. References: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425)

Creating a mobility group requires that all Wireless LAN Controllers (WLCs) share the same mobility group name. This allows them to recognize each other as peers and participate in client mobility events. The WLCs must be defined as peers in each other’s static mobility members list to facilitate inter-controller communication and roaming.

AP Fallback is a feature that allows APs to rejoin their primary controller after they have connected to a secondary controller due to a failure. By enabling AP Fallback on the primary controller, the APs will automatically rejoin it when it becomes available again after a power interruption. This ensures that APs return to their designated primary controller for normal operations.

Devices that only support 2.4 GHz can increase congestion on this frequency band, especially in environments where multiple devices are present. This is because the 2.4 GHz band has fewer non-overlapping channels compared to 5 GHz, leading to more interference and potential performance issues.

For outdoor wireless networks, especially in open areas prone to harsh weather, it’s crucial to install lightning arrestors to protect against electrical surges caused by lightning strikes. Additionally, grounding the antenna cables helps dissipate any electrical charge that could damage the equipment.

In a warehouse setting, the height at which access points are installed can significantly impact the wireless signal. If the access points are placed too high, the signal may not adequately reach the users. Additionally, absorption by materials commonly found in warehouses, such as metal racks and goods, can weaken the wireless signal, negatively affecting the users.

 RXSOP (Receive Start of Packet Detection Threshold) and TPC (Transmit Power Control) are two features that can help manage the challenges associated with a high AP (Access Point) count in a dense environment like a university auditorium. RXSOP can be adjusted to refine how APs differentiate between noise and valid packets, which is particularly useful in high-density areas where multiple APs might otherwise respond to the same signal. TPC helps in managing the transmit power of APs, allowing for better coverage and reduced interference among APs that are in close proximity to each other. References: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425)

 When designing a network with a DMZ and an EoIP tunnel, it’s important to ensure that the data plane is encrypted to protect the data as it traverses potentially unsecured networks. Cisco IOS-XE on the Catalyst 9800 supports encryption of the data plane, which is essential for this design.

 Cisco 3800 Series APs support higher speeds provided by IEEE 802.11ac Wave 2, which Fast Ethernet switches cannot fully support. Replacing them with mGig or gigabit switches with 10G uplinks will ensure the infrastructure can handle the increased data rates. The CAT 6A standard supports these speeds, so there’s no need to replace the wiring if it’s already CAT 6A.

In a Cisco wireless network, when designing for client roaming between access points (APs) that are connected to different controllers, especially in a global enterprise with multiple data centers, it is essential to ensure seamless client mobility. Mobility lists are used in such scenarios to define which controllers are allowed to participate in client roaming. This feature allows the APs connected to controllers within one group (e.g., Group ABC) to recognize and facilitate roaming clients from another group (e.g., Group XYZ). The mobility list is configured on each controller and includes the IP addresses of other controllers that should be considered part of the same mobility domain. When a client roams from an AP on one controller to an AP on another controller, if both controllers are in each other’s mobility list, they will establish a mobility tunnel through which they exchange the client’s context and security credentials. This ensures that the client can roam without re-authentication and maintains session continuity.

References:

• CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice Test.
• Designing Cisco Enterprise Wireless Networks (ENWLSD) course and training videos available on Cisco Learning Network and Cisco official website.

 In a mining facility, especially within mine shafts where the environment can be long and narrow, an omnidirectional antenna is typically used for a Layer 2 survey. This type of antenna radiates RF signal equally in all directions, providing coverage along the length of the shaft.

To minimize channel utilization and interference with existing tenant networks, it’s best to use the UNII-1 channels, which are typically less congested, and stick to 20-MHz channels to provide more non-overlapping channels and reduce co-channel interference.

 The most effective way to address the issue is to resurvey the areas with the correct survey devices. This ensures that the design accurately reflects the performance characteristics of the specified access points for each area type, leading to a more reliable and efficient wireless network design tailored to each environment’s specific needs.
