Solution:

Goal: fix nosql Deployment in haddock so the container stops OOM’ing by setting:

memory request = 128Mi

memory limit = half of the namespace’s maximum memory constraint

You must do this on the correct host.

0) Connect to the correct host

ssh ckad00032

1) Confirm the failing Deployment / Pods

kubectl -n haddock get deploy nosql

kubectl -n haddock get pods -l app=nosql 2>/dev/null || kubectl -n haddock get pods

If pods are crashing, check why (you’ll likely see OOMKilled):

kubectl -n haddock describe pod

2) Find the maximum memory constraint set for the haddock namespace

In CKAD labs, this is commonly enforced by a LimitRange (max memory per container). Sometimes it can also be a ResourceQuota.

2A) Check LimitRange (most likely)

kubectl -n haddock get limitrange

kubectl -n haddock get limitrange -o yaml

Extract the max memory value quickly:

MAX_MEM=$(kubectl -n haddock get limitrange -o jsonpath='{.items[0].spec.limits[0].max.memory}')

echo "Namespace max memory constraint: $MAX_MEM"

2B) If no LimitRange exists, check ResourceQuota

kubectl -n haddock get resourcequota

kubectl -n haddock describe resourcequota

If quota is used, you’re looking for something like limits.memory (but the question wording “maximum memory constraint” usually points to LimitRange max.memory).

3) Compute “half of the max memory constraint”

Run this small snippet to compute HALF in Mi (handles Mi and Gi):

HALF_MEM=$(python3 - <<'PY'

import os, re

q = os.environ.get("MAX_MEM","").strip()

m = re.fullmatch(r"(\d+)(Mi|Gi)", q)

if not m:

raise SystemExit(f"Cannot parse MAX_MEM='{q}'. Expected like 512Mi or 1Gi.")

val = int(m.group(1))

unit = m.group(2)

# convert to Mi

mi = val if unit == "Mi" else val * 1024

half_mi = mi // 2

print(f"{half_mi}Mi")

PY

)

echo "Half of max: $HALF_MEM"

Example: if MAX_MEM=512Mi → HALF_MEM=256Mi

Example: if MAX_MEM=1Gi → HALF_MEM=512Mi

4) Update the nosql Deployment (DO NOT delete it)

First, get the container name (Deployment may have a custom container name):

kubectl -n haddock get deploy nosql -o jsonpath='{.spec.template.spec.containers[*].name}{"\n"}'

Now set resources (this updates the Deployment in-place):

kubectl -n haddock set resources deploy nosql \

--requests=memory=128Mi \

--limits=memory=$HALF_MEM

5) Ensure the update rolls out successfully

kubectl -n haddock rollout status deploy nosql

6) Verify the pod has the right requests/limits

kubectl -n haddock get deploy nosql -o jsonpath='{.spec.template.spec.containers[0].resources}{"\n"}'

kubectl -n haddock get pods

Pick the new pod and confirm:

kubectl -n haddock describe pod | sed -n '/Requests:/,/Limits:/p'

You should see:

Requests: memory 128Mi

Limits: memory

If rollout fails (common cause)

If you accidentally set a limit above the namespace max, pods won’t start. Check events:

kubectl -n haddock describe deploy nosql

kubectl -n haddock get events --sort-by=.lastTimestamp | tail -n 20

Solution:

Solution:

Solution:

Solution:

To deploy the counter pod to the cluster using the provided YAML spec file, you can use the kubectl apply command. The apply command creates and updates resources in a cluster.

kubectl apply -f /opt/KDOB00201/counter.yaml

This command will create the pod in the cluster. You can use the kubectl get pods command to check the status of the pod and ensure that it is running.

kubectl get pods

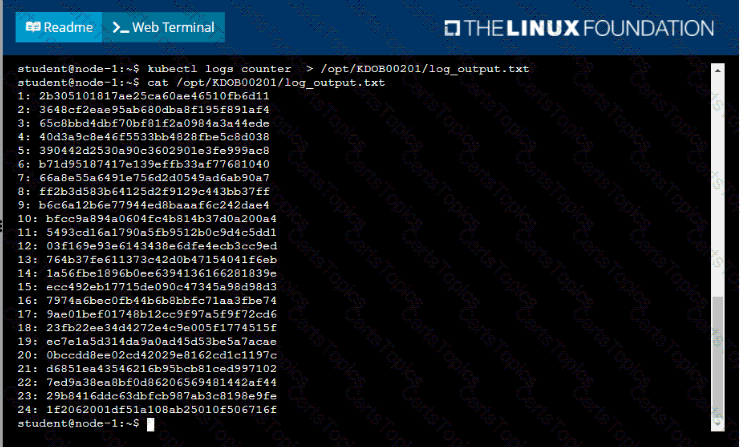

To retrieve all currently available application logs from the running pod and store them in the file /opt/KDOB0020l/log_Output.txt, you can use the kubectl logs command. The logs command retrieves logs from a container in a pod.

kubectl logs -f > /opt/KDOB0020l/log_Output.txt

Replace with the name of the pod.

You can also use -f option to stream the logs.

kubectl logs -f > /opt/KDOB0020l/log_Output.txt &

This command will retrieve the logs from the pod and write them to the /opt/KDOB0020l/log_Output.txt file.

Please note that the above command will retrieve all logs from the pod, including previous logs. If you want to retrieve only the new logs that are generated after running the command, you can add the --since flag to the kubectl logs command and specify a duration, for example --since=24h for logs generated in the last 24 hours.

Also, please note that, if the pod has multiple containers, you need to specify the container name using -c option.

kubectl logs -f -c > /opt/KDOB0020l/log_Output.txt

The above command will redirect the logs of the specified container to the file.

ssh ckad00025

You need to expose the existing app “web-app” externally at:

Host: external.sterling-bengal.local

Path: / (and anything starting with /) → route to web-app

In CKAD labs, this is almost always done with an Ingress pointing to the Service web-app.

1) Find where web-app Service lives (namespace + port)

kubectl get svc -A | grep -w web-app

You’ll get something like:

web-app ClusterIP ... /TCP

Set the namespace:

NS=

Check the service port(s):

kubectl -n $NS get svc web-app -o yaml

Note the service port number (commonly 80).

Also verify it has endpoints (so it actually routes to pods):

kubectl -n $NS get endpoints web-app -o wide

If endpoints are empty, the Service selector doesn’t match pods — tell me and I’ll give the exact fix. But usually it’s fine.

2) Create the Ingress to route / to web-app

Create a manifest (use the service port you saw; I’ll assume 80 below):

cat <<'EOF' > web-app-ingress.yaml

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: web-app-ingress

spec:

rules:

- host: external.sterling-bengal.local

http:

paths:

- path: /

pathType: Prefix

backend:

service:

name: web-app

port:

number: 80

EOF

Apply it:

kubectl -n $NS apply -f web-app-ingress.yaml

Verify:

kubectl -n $NS get ingress web-app-ingress

kubectl -n $NS describe ingress web-app-ingress

If your Service port is not 80, change number: 80 to the correct value and re-apply.

3) Test external reachability (as instructed)

Run exactly:

curl -i

If curl still fails (quick checks)

A) Is there an ingress controller running?

kubectl get pods -A | egrep -i 'ingress|nginx'

kubectl get svc -A | egrep -i 'ingress|nginx'

B) Does Ingress show an address?

kubectl -n $NS get ingress web-app-ingress -o wide

C) Do we have endpoints?

kubectl -n $NS get endpoints web-app -o wide

Solution:

Solution:

Solution:

Solution:

0) SSH to the correct host

ssh ckad00044

(Optional sanity)

kubectl config current-context

kubectl get ns | grep rapid-goat

1) Inspect the Deployment and current container name

kubectl -n rapid-goat get deploy busybox

kubectl -n rapid-goat get deploy busybox -o jsonpath='{.spec.template.spec.containers[*].name}{"\n"}'

kubectl -n rapid-goat get deploy busybox -o jsonpath='{.spec.template.spec.containers[*].image}{"\n"}'

Note the current container name (likely something like busybox). We need to rename it to musl.

2) Edit the Deployment (best for renaming container)

Renaming a container is easiest with edit:

kubectl -n rapid-goat edit deploy busybox

In the editor, find:

spec:

template:

spec:

containers:

- name:

image:

Change it to:

- name: musl

image: busybox:musl

Save and exit.

3) Ensure the rollout happens and completes

kubectl -n rapid-goat rollout status deploy busybox

4) Verify the new Pod template is correct

Check the Deployment template:

kubectl -n rapid-goat get deploy busybox -o jsonpath='{.spec.template.spec.containers[0].name}{"\n"}{.spec.template.spec.containers[0].image}{"\n"}'

Check running Pods and the image actually used:

kubectl -n rapid-goat get pods -o wide

POD=$(kubectl -n rapid-goat get pods -l app=busybox -o jsonpath='{.items[0].metadata.name}' 2>/dev/null || true)

If you don’t have that label selector, just pick a pod name from kubectl get pods and:

kubectl -n rapid-goat describe pod | sed -n '/Containers:/,/Conditions:/p'

Below is an exam-style, step-by-step solution (commands + verification). Follow exactly on host ckad000.

0) Connect to the right host

ssh ckad000

(Optional but good sanity check)

kubectl config current-context

kubectl get ns

1) Inspect the existing Deployment (to know its labels/ports)

kubectl -n prod get deploy nginx-deployment

kubectl -n prod get deploy nginx-deployment -o wide

Check what labels the Pod template already has (important for the Service selector):

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.metadata.labels}{"\n"}'

Check container ports (so we expose the correct targetPort):

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.spec.containers[0].ports}{"\n"}'

If ports output is empty, it’s still often nginx on 80, but the safest is to confirm by describing a pod later.

2) Update Deployment to 2 replicas

Fastest:

kubectl -n prod scale deploy nginx-deployment --replicas=2

Verify:

kubectl -n prod get deploy nginx-deployment

3) Add label role=webFrontEnd to the Pod (Pod template label)

You must add it under:

spec.template.metadata.labels

Use a patch (quick + safe):

kubectl -n prod patch deploy nginx-deployment \

-p '{"spec":{"template":{"metadata":{"labels":{"role":"webFrontEnd"}}}}}'

Verify the Deployment template now includes it:

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.metadata.labels}{"\n"}'

Now verify the running Pods have the label (important!):

kubectl -n prod get pods --show-labels

If the label doesn’t show on pods immediately, wait for rollout:

kubectl -n prod rollout status deploy nginx-deployment

kubectl -n prod get pods --show-labels

4) Create a NodePort Service rover exposing the Deployment’s Pods

4.1 Get a reliable target port

Try to read containerPort:

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.spec.containers[0].ports[0].containerPort}{"\n"}'

If this prints a number (commonly 80), use it as --target-port.

If it prints nothing/empty, check a pod:

POD=$(kubectl -n prod get pod -l role=webFrontEnd -o jsonpath='{.items[0].metadata.name}')

kubectl -n prod describe pod "$POD" | sed -n '/Containers:/,/Conditions:/p' | sed -n '/Ports:/,/Environment:/p'

Assuming nginx is on 80 (most common), create the service:

kubectl -n prod expose deploy nginx-deployment \

--name=rover \

--type=NodePort \

--port=80 \

--target-port=80

If your nginx container port is different (e.g., 8080), change --target-port=8080 accordingly.

5) Verify Service + endpoints (critical)

kubectl -n prod get svc rover -o wide

kubectl -n prod describe svc rover

kubectl -n prod get endpoints rover -o wide

You should see 2 endpoints (matching 2 pods).

Also confirm the pods are Ready:

kubectl -n prod get pods -l role=webFrontEnd -o wide

Quick “CKAD checkpoints”

Deployment in prod has replicas=2

Pod template has label role=webFrontEnd

Service rover in prod is NodePort

Service endpoints point to the nginx pods

To find the broken pod and store its name and namespace to /opt/KDOB00401/broken.txt, you can use the kubectl get pods command and filter the output by the status of the pod.

kubectl get pods --field-selector=status.phase=Failed -o jsonpath='{.items[*].metadata.namespace}/{.items[*].metadata.name}' > /opt/KDOB00401/broken.txt

This command will list all pods with a status of Failed and output their names and namespaces in the format /. The output is then written to the /opt/KDOB00401/broken.txt file.

To store the associated error events to a file /opt/KDOB00401/error.txt, you can use the kubectl describe command to retrieve detailed information about the pod, and the grep command to filter the output for error events.

kubectl describe pods --namespace | grep -i error -B5 -A5 > /opt/KDOB00401/error.txt

Replace and with the name and namespace of the broken pod you found in the previous step.

This command will output detailed information about the pod, including error events. The grep command filters the output for lines containing "error" and also prints 5 lines before and after the match.

To fix the issue, you need to analyze the error events and find the root cause of the issue.

It could be that the application inside the pod is not running, the container image is not available, the pod has not enough resources, or the liveness probe configuration is incorrect.

Once you have identified the cause, you can take appropriate action, such as restarting the application, updating the container image, increasing the resources, or modifying the liveness probe configuration.

After fixing the issue, you can use the kubectl get pods command to check the status of the pod and ensure
