Theattenuation factor for shielding materialis typically calculated using the formulaA = 20 log (R / M). This equation provides the attenuation in decibels (dB), whereRrepresents the measured electromagnetic field strength, andMis the maximum acceptable level. The logarithmic scale helps quantify how much the shielding reduces EMF levels relative to the maximum allowable value.

Detailed Explanation:

This formula calculates attenuation by comparing the measured value with the acceptable threshold, with the result expressed in decibels. A higher attenuation indicates more effective shielding material, essential for environments requiring robust EMF management.

EPI Data Center Specialist References:

EPI standards include the use of logarithmic formulas to evaluate attenuation levels, ensuring that shielding materials provide adequate reduction in EMF to protect sensitive equipment within data centers.

For aUPS systemin aRating-4 data center, the synchronization of output can indeeddepend on the specific settingsof the UPS. Generally, such systems allow for flexible configuration where the output can be synchronized to eitherpower feed A or B, depending on which feed is preferred for stability or redundancy purposes.

Detailed Explanation:

In dual-feed setups, such as those in high-redundancy data centers, the UPS can be set to synchronize with either feed. This ensures that the UPS maintains continuity in case one feed becomes unstable or fails. The flexibility to choose synchronization to either feed enhances theresiliency and reliability of power supply, which is critical in Tier IV (Rating-4) facilities where uptime is paramount.

EPI Data Center Specialist References:

The EPI Data Center Specialist course underscores the importance of configurable UPS systems in Rating-4 data centers, where redundancy and continuous power are critical. By allowing synchronization to either feed, the UPS can maintain the highest level of reliability, which aligns with the rigorous standards expected in such environments.

Asrelative humiditydecreases,Electrostatic Discharge (ESD)risks increase. Lower humidity levels reduce the amount of moisture in the air, which normally helps dissipate static charges. When the humidity drops from 50% to 35%, the likelihood of static electricity accumulating on surfaces rises, leading to a higher potential for ESD incidents that could damage sensitive IT equipment.

Detailed Explanation:

ESD events are more common in dry environments because there is less atmospheric moisture to neutralize electrical charges. Maintaining relative humidity above 40% helps minimize the risk of ESD, which is why data centers often control humidity levels tightly to protect equipment from static discharge that could cause hardware failures or data loss.

EPI Data Center Specialist References:

EPI data center best practices stress the importance of maintaining stable humidity levels to prevent ESD, particularly in computer rooms. Recommended humidity ranges are typically above 40% to prevent conditions that would foster static buildup.

To calculate thecooling airflow requirementfor ICT equipment, you can use the formula:

CFM=Power (kW)×3160ΔT(°F)\text{CFM} = \frac{\text{Power (kW)} \times 3160}{\Delta T (\text{°F})}CFM=ΔT(°F)Power (kW)×3160​

For equipment consuming6 kWwith aDelta-Tof20°F:

CFM=6×316020=948≈1,000 CFM\text{CFM} = \frac{6 \times 3160}{20} = 948 \approx 1,000 \, \text{CFM}CFM=206×3160​=948≈1,000CFM

Detailed Explanation:

This formula provides an estimate of the cubic feet per minute (CFM) of air required to cool the equipment based on its power consumption and the temperature difference (Delta-T) between intake and exhaust. The Delta-T represents the cooling effectiveness of the airflow.

EPI Data Center Specialist References:

EPI recommends using this calculation for determining airflow requirements in data centers, ensuring that cooling systems are adequately sized to maintain equipment within safe temperature limits.

A2(N+1) configurationimpliestwo independent UPS systems, each withN+1 redundancy. This configuration provides high availability by ensuring that each UPS system can independently support the load with an additional unit for redundancy. Given the80 kW load, this setup impliesthat two separate N+1 systems are running, providing reliability and fault tolerance for the data center’s power needs.

Detailed Explanation:

TheN+1notation denotes that each system has one additional unit beyond what is needed to carry the load, providing redundancy. With2(N+1), there are two such setups, ensuring that if one fails, the other can still support the load without interruption, fulfilling high availability requirements.

EPI Data Center Specialist References:

EPI teaches that multiple redundant systems, such as2(N+1), enhance data center reliability by ensuring that power is maintained even if a failure occurs in one system. This meets the stringent demands for uptime in critical environments.

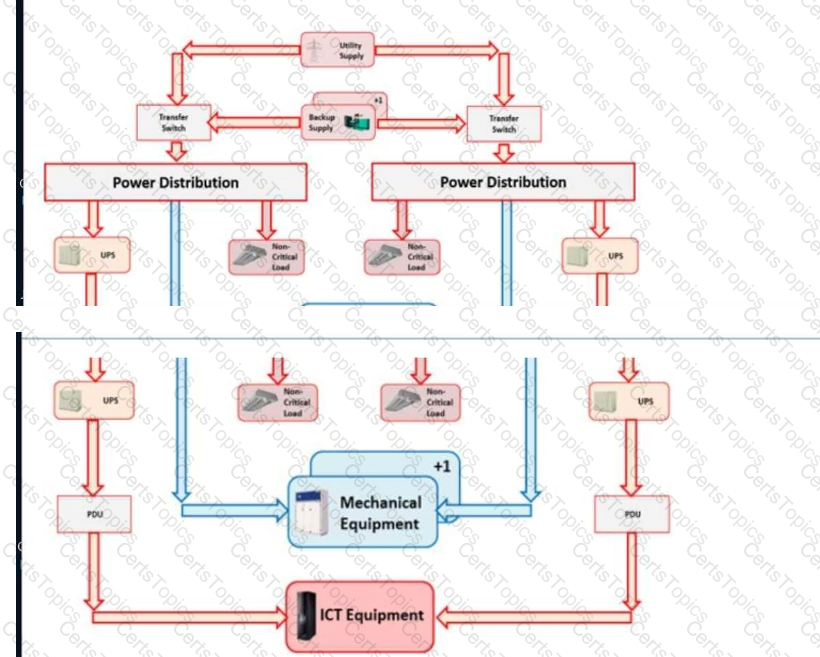

The electrical design shown in the diagrams represents aTIA-942 Rating-4configuration. This design includesfull redundancy and fault tolerance, as demonstrated by the dual power distribution paths from the utility supply to the critical loads. Each power distribution path isequipped with its own UPS, ensuring that the ICT equipment and mechanical equipment have uninterrupted power in case of any single point of failure.

Detailed Explanation:

ARating-4data center requires two independent power paths that are fully redundant and capable of supporting the load independently. In the diagrams:

There are dual feeds from the utility supply, each going through separate transfer switches and power distribution paths.

Both paths have backup sources (+1) and serve critical components through separate UPS systems, providing a completely redundant setup.

The design also includes redundant paths to the mechanical equipment and ICT equipment, which further indicates the fault-tolerant characteristics of a Rating-4 infrastructure.

This setup allows for concurrent maintainability and ensures that no single failure in power distribution or UPS can impact the data center’s operation, which is characteristic of the highest Tier/Rated-4 classification.

EPI Data Center Specialist References:

EPI guidelines confirm that TIA-942 Rating-4 requires full redundancy and fault tolerance for electrical infrastructure, ensuring continuous operation even during maintenance or failure events. This design meets all those requirements, thus aligning with Rating-4 standards.

ATop of Rack (ToR) designtypically requiresmore switchesbecause each rack has its own switch to manage network connections, as opposed toEnd of Row (EoR)or centralized designs, which consolidate switches. While ToR designs improve cabling efficiency and reduce latency, they also increase the number of switches, thus raising management complexity and potentially increasing capital and operational costs.

Detailed Explanation:

In a ToR setup, each rack’s individual switch allows for quick access and streamlined cabling within the rack. However, this setup means more devices to configure, monitor, and maintain, which can increase administrative overhead and network management complexity.

EPI Data Center Specialist References:

EPI documentation notes that ToR designs can improve performance but also lead to increased management needs due to the higher switch count, making them less ideal in environments where simplified network management is prioritized.

The correct formula for calculatingPhase-to-Neutral Voltagein a three-phase power system isPhase-to-Neutral Voltage = Phase-to-Phase Voltage / 1.732. This formula applies tobalanced three-phase systems, where 1.732 (or √3) represents the relationship between line-to-line and line-to-neutral voltages.

Detailed Explanation:

In three-phase systems,Phase-to-Phase Voltageis higher thanPhase-to-Neutral Voltageby a factor of √3. Dividing the phase-to-phase voltage by 1.732 gives the phase-to-neutral voltage, which is critical for understanding power distribution in three-phase electrical systems commonly found in data centers.

EPI Data Center Specialist References:

EPI electrical training highlights the importance of knowing these calculations for designing and maintaining balanced power systems, which are essential for stable and efficient data center operations.

In a data center with noise levels of 91 dB (A), employers are indeed required to take precautions to protect personnel, as this level exceeds commonly accepted safety thresholds for occupational noise exposure. Regulations, such as those from the Occupational Safety and Health Administration (OSHA) or similar agencies, mandate specific controls and protections for environments with high noise levels.

Detailed Explanation:

Noise levels above 85 dB (A) typically trigger requirements for hearing conservation programs. At 91 dB (A), steps like providing ear protection, conducting regular noise assessments, and possibly implementing engineering controls to reduce noise should be taken. Extended exposure to such levels can lead to hearing loss, so regulatory compliance ensures both immediate and long-term protection for personnel.

EPI Data Center Specialist References:

EPI guidelines for data center safety address noise exposure as part of the environmental safety measures. EPI recommends adhering to local occupational health regulations, as excessive noise can harm personnel and affect operational efficiency due to potential health hazards.

When installingoverhead data cabling, it’s crucial tomaintain minimum separationfrompower cablesto prevent electromagnetic interference. Additionally, cabling should be arranged so that it does not obstructfire detection and suppression systems, allowing for proper sensor function and suppression agent dispersion in the event of a fire.

Detailed Explanation:

Separation between power and data cabling minimizes the risk of interference and helps ensure compliance with standards for signal integrity. Proper placement relative to fire suppression systems ensures that any smoke or heat can be effectively detected, and suppression agents can be evenly distributed without obstruction from cabling.

EPI Data Center Specialist References:

EPI guidelines emphasize maintaining adequate separation between power and data cables for safety and performance and ensuring cabling does not interfere with essential safety systems in data centers.

The amount of FM200 gas required can be calculated using the formula:

Weight of Gas=Net Volume×Design Concentration×S-Factor\text{Weight of Gas} = \text{Net Volume} \times \text{Design Concentration} \times \text{S-Factor}Weight of Gas=Net Volume×Design Concentration×S-Factor

Using metric units:

Net Volume: 2,500 m³

Design Concentration: 7% (or 0.07)

S-Factor: 0.1359

Calculation:

2,500 m3×0.07×0.1359=821.325 kg2,500 \, \text{m}^3 \times 0.07 \times 0.1359 = 821.325 \, \text{kg}2,500m3×0.07×0.1359=821.325kg

Rounded to the closest answer:820 kg

In imperial units:

Net Volume: 88,287 ft³

S-Factor: 1.885

Calculation:

88,287 ft3×0.07×1.885=1,165.27 lbs88,287 \, \text{ft}^3 \times 0.07 \times 1.885 = 1,165.27 \, \text{lbs}88,287ft3×0.07×1.885=1,165.27lbs

Rounded, this is approximately1,800 lbs.

EPI Data Center Specialist References:

EPI instructs on using specific formulas and S-factors provided by manufacturers for each gas type, ensuring that calculations reflect the correct concentration for the given room volume.

When installing araised floor, the best starting point is typicallyfrom the farthest corner away from the entrance, in this case,Point B. This method allows for the floor installation to progress towards the entrance, ensuring that workers can avoid walking over the newly installed tiles, thus minimizing the risk of damage and maintaining cleanliness during installation.

Detailed Explanation:

Starting at the farthest corner (Point B) and working towards the entrance (Point A) is a standard practice in raised floor installation. This approach ensures that installers do not walk over freshly laid tiles, which could lead to shifting or misalignment. Additionally, it allows for more controlledplacement and alignment, as well as convenient egress when installation is complete.

EPI Data Center Specialist References:

EPI guidelines for raised floor installation emphasize beginning at the farthest point from the entrance and working back towards it, which aligns with industry best practices for efficiency and quality assurance. This method reduces potential damage and supports precise alignment across the floor area.

Theserver’s repeated overheatingdespite adequate intake and exhaust temperatures suggests thatdust buildup inside the servermay be impeding heat transfer. Dust accumulation can obstruct airflow within the server, insulate components, and disrupt the convection-based cooling systems that regulate internal temperatures, leading to overheating and potential hardware failures.

Detailed Explanation:

While the intake and exhaust temperatures appear within acceptable ranges, internal dust can reduce airflow and impede cooling efficiency, causing internal components to overheat despite seemingly normal ambient conditions. Regular cleaning and maintenance are critical for preventing dust-related issues, especially in high-powered equipment like a 5kW server.

EPI Data Center Specialist References:

EPI emphasizes regular maintenance to prevent dust buildup in data center equipment. Dust can significantly impact cooling efficiency and lead to overheating, which underlines the importance of routine cleaning for optimal server performance.

Thebreaking capacityof afuse or breakerindicates themaximum currentit can safely interrupt without being damaged or creating a dangerous arc. This value is crucial for ensuring that the device can handle fault conditions and prevent equipment damage or fire risks due to excessive current flow.

Detailed Explanation:

The breaking capacity, also known as the interrupting rating, ensures that the fuse or breaker can safely handle fault currents up to a specified limit. Exceeding this capacity could result in the device failing to interrupt the current, potentially causing hazardous conditions like electrical arcs.

EPI Data Center Specialist References:

EPI training underscores the importance of matching fuses and breakers with appropriate breaking capacities for the anticipated fault levels in data centers to ensure reliable and safe operation.

When thewindow areaexceeds themaximum exposed areaspecified for fire-rated glass, it is necessary to split the window into sections that comply with the fire rating requirements. This means creating smaller sections that are each within the 3 sqm/32 sqft limit and using fire-rated frames to ensure that the entire assembly meets fire safety standards. This approach maintains the fire-rated integrity of the glass, while allowing for larger window areas.

Detailed Explanation:

Fire-rated glass is designed to contain fire and prevent it from spreading. If the window exceeds the maximum exposed area defined by the supplier, the integrity of the fire-rated glass could be compromised. By dividing the window into compliant sections with fire-rated frames, you ensure that each pane performs as intended in the event of a fire. Fire-rated frames help maintain the fire resistance across the entire assembly, making this option the best for safety and compliance.

EPI Data Center Specialist References:

EPI recommends adhering strictly to fire safety standards, especially when using materials like fire-rated glass. The guidelines emphasize that modifications should always respect the manufacturer’s specifications to ensure the system remains effective in containing and preventing the spread of fire.

When calculatingPower Usage Effectiveness (PUE)in a data center that useschilled water from an external source, like from a building owner, aweight factor for district chilled watermust be applied. This is because PUE calculations aim to measure the energy efficiency of the data center’s own operations, and external utilities like district chilled water aren’t directly powered by the data center. A weight factor of0.4is typically used to account for the energy consumed to produce and deliver the chilled water, reflecting the indirect impact on the data center’s total energy consumption.

Detailed Explanation:

PUE is calculated as the ratio of the total facility energy to the IT equipment energy. If the cooling is provided by an external chilled water source, it’s necessary to adjust the calculations to accurately reflect the energy impact. By incorporating the 0.4 weight factor, data centers can calculate a more accurate PUE, aligning with standard methods and industry best practices.

EPI Data Center Specialist References:

EPI training on PUE highlights the importance of adjusting for external energy sources, such as district cooling, in the calculations. This ensures that PUE values remain accurate and comparable across different data centers, even when external utilities are used.

In locations with consistentlycold temperatures, such asabove the Arctic Circle, anairside economizeris the most energy-efficient cooling solution. Airside economizers use cool outside air to lower indoor temperatures, reducing or even eliminating the need for mechanical cooling. Given the consistently low temperatures, this method maximizes energy efficiency by leveraging natural cooling.

Detailed Explanation:

Airside economizers are ideal in environments where outside temperatures are consistently low. By drawing in and filtering cold outdoor air, they directly cool the indoor environment, thereby reducing energy consumption significantly compared to traditional air conditioning. This cooling approach aligns with energy efficiency goals by minimizing mechanical cooling demands.

EPI Data Center Specialist References:

EPI recommends the use of airside economizers in cold climates to achieve high energy efficiency, as they allow data centers to capitalize on ambient conditions for cooling, aligning with sustainability and cost-saving practices.

Raised floor tiles with air deflectors or louversare typically heavier than standard tiles due to the additional materials and mechanisms used to direct airflow. The added weight can pose challenges for installation and adjustment, and consideration must be given to the floor’s load capacity and ease of maintenance.

Detailed Explanation:

Tiles with deflectors or louvers help direct airflow, enhancing cooling efficiency by focusing cool air where needed. However, these tiles are often heavier, which can affect handling and require reinforced raised floor systems. It's essential to factor in the weight for any floor tile replacements or installations to ensure they are compatible with the raised floor's structural capacity.

EPI Data Center Specialist References:

EPI data center design training mentions the potential impact of heavy tiles on floor handling and load capacity. Data center operators need to plan for safe handling and load-bearing capacity when using such specialized tiles.
