To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

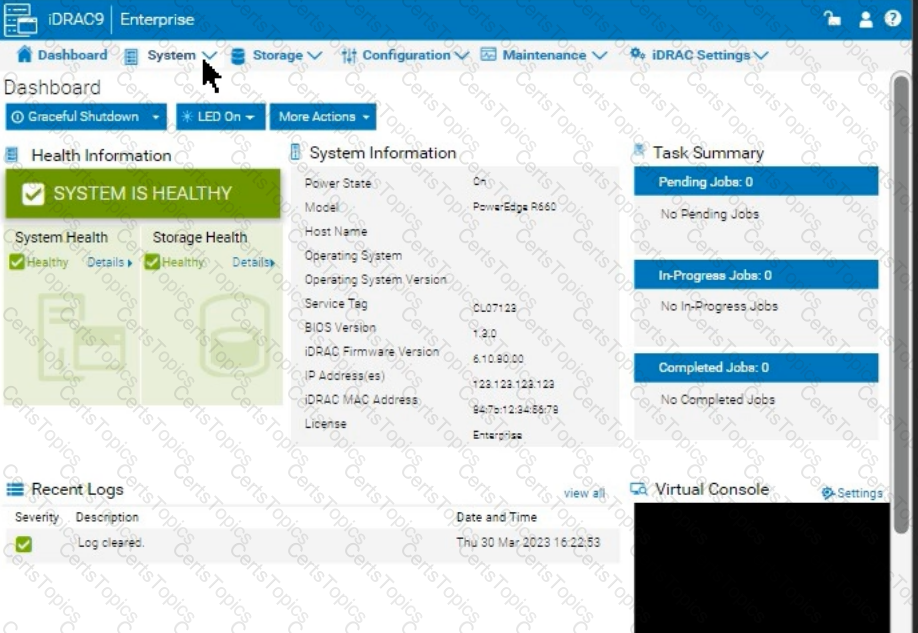

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration.

Change the NIC Selection to Shared. This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared, additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port. This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.

To prevent unwanted configuration changes in the iDRAC UI, you can adjust user roles, permissions, or enable specific security settings to restrict access for junior IT staff. Here are the steps to secure the iDRAC configuration:

Step-by-Step Guide:

Access User Settings:

In the iDRAC interface, navigate to iDRAC Settings from the main menu.

Choose User Authentication or Users to manage user accounts and permissions.

Adjust User Roles and Permissions:

Identify the accounts associated with junior IT staff.

For each user account, adjust the role to Read-Only if you want them to have view-only access without making configuration changes.

Alternatively, set their permissions to exclude configuration changes. This may involve assigning a custom role with limited access based on your needs.

Enable Configuration Lock (if available):

Some versions of iDRAC offer a Configuration Lock feature, which prevents any configuration changes until the lock is removed by an administrator.

Navigate to Configuration > System Security or User Authentication, depending on the version, and enable the Configuration Lock option.

Set Up Two-Factor Authentication (Optional):

For added security, enable Two-Factor Authentication under iDRAC Settings > Network or Security settings. This step ensures only authorized users can access and make changes to the iDRAC UI.

Save and Apply Security Changes:

After setting up the desired restrictions and permissions, save the settings to apply the changes.

Verify that junior IT staff accounts now have restricted access and cannot make configuration changes.

Log Out and Test the Changes:

Log out of the administrator account and log in with a junior IT staff account to confirm that the permissions are set correctly.

Ensure that configuration changes are disabled and that the user can only view the iDRAC interface as per the restrictions.

By following these steps, you can restrict junior IT staff from making any configuration changes within the iDRAC interface, thus preventing accidental or unauthorized modifications.

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture.

Enable Verbose Mode or Capture Full POST Sequence. This setting ensures that the entire POST process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs, enable it to ensure detailed logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save.

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot. Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can then be reviewed to identify any hardware or configuration issues preventing the server from booting successfully.

 Launch the Simulator:

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

 Navigate to System Information:

In the top menu bar, select the "Configuration" tab.

From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

 Check the H965i Storage Controller:

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed: Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

Selecting the Appropriate PowerEdge Model for GPU Density and High-Capacity Storage

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Position the server in the market landscape

Understanding Customer Requirements

Optimize GPU Density for Maximum Performance: The customer needs a server that supports a high number of GPUs for intensive computational tasks.

High-Capacity Storage: Requires substantial storage capabilities within the server.

Evaluation of PowerEdge Models

Option A: XR12

Explanation: The PowerEdge XR12 is a ruggedized server designed for edge computing environments. It offers limited GPU support and is optimized for space-constrained, harsh conditions.

Conclusion: Not suitable for maximizing GPU density and high-capacity storage.

Option B: R660

Explanation: The PowerEdge R660 is a 1U rack server optimized for performance and density but has limited GPU support due to its size. It is ideal for virtualization and database applications but not for high GPU density.

Conclusion: Does not meet the GPU density requirement.

Option C: XE9640

Explanation: The PowerEdge XE9640 is designed for extreme compute performance and supports high GPU density. It can accommodate multiple high-performance GPUs and offers substantial storage options, making it ideal for HPC, AI, and data analytics workloads.

Features:

Supports up to eight double-width GPUs.

Offers high-capacity storage configurations.

Conclusion: Correct Answer.

Option D: C6620

Explanation: The PowerEdge C6620 is a high-density compute server optimized for scale-out environments. It focuses on compute density rather than GPU density and has limited support for GPUs.

Conclusion: Not the best fit for maximizing GPU density and storage.

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications: Understanding the capabilities of different server models to meet specific customer needs.

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU: Knowledge of which servers support high GPU density.

Conclusion

PowerEdge XE9640 is the optimal choice for the customer's requirements, providing maximum GPU density and high-capacity storage for peak performance.

Entering BIOS Progress Mode on a Non-Responsive Dell PowerEdge R660 During POST

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST

Analyze the visual indicators on server components - system ID, PSU, and BLINK

Understanding the Scenario

Server Model: Dell PowerEdge R660

Issue: Not responding during POST (Power-On Self-Test)

Objective: Enter BIOS Progress Mode to troubleshoot the issue

What is BIOS Progress Mode?

BIOS Progress Mode is a diagnostic feature that allows the system to display detailed POST codes and progress indicators during the boot process. This can help administrators identify where the boot process is stalling.

How to Enter BIOS Progress Mode

Method: Press and hold the System ID button for more than five seconds during the boot process.

Effect:

Forces the server into BIOS Progress Mode.

Displays detailed POST information on the screen.

Helps in diagnosing issues that prevent the server from completing POST.

Explanation of Options

Option A: Press and hold the power button for 15 seconds.

Analysis:

Holding the power button for an extended period typically forces a hard shutdown or initiates a power reset.

Does not help in entering BIOS Progress Mode.

Conclusion: Incorrect.

Option B: Enter <F2> when the server tries to POST.

Analysis:

Pressing during POST is the standard method to enter the BIOS Setup Utility.

However, if the server is not responding during POST, this method may not be effective.

Does not specifically enable BIOS Progress Mode.

Conclusion: Less effective.

Option C: Press and hold the System ID button for more than five seconds.

Analysis:

Pressing and holding the System ID button for over five seconds triggers the server to enter BIOS Progress Mode.

This method is designed for situations where the server is unresponsive during POST.

Conclusion: Correct Answer.

Option D: Disconnect and reconnect the power cables for both PSUs.

Analysis:

Power cycling the server by disconnecting and reconnecting power may not resolve POST issues.

Does not enable BIOS Progress Mode.

Conclusion: Unlikely to help.

Dell Operate References

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST:

Understanding how to enter BIOS Progress Mode is essential for diagnosing POST-related issues.

Analyze the visual indicators on server components - system ID, PSU, and BLINK:

System ID Button:

Located on the front panel of the server.

Serves multiple functions, including identifying the server in a rack and triggering diagnostic modes.

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management:

Familiarity with BIOS access methods and diagnostic tools is crucial for system administrators.

Conclusion

When a Dell PowerEdge R660 server is not responding during POST, pressing and holding the System ID button for more than five seconds will force the server into BIOS Progress Mode. This allows the administrator to see detailed POST codes and identify where the boot process is failing.

Identifying 16th Generation PowerEdge Rack Servers

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Position the server in the market landscape

Understanding Dell PowerEdge Server Generations and Models

Dell PowerEdge servers are categorized by generation (denoted as "G") and model numbers. The 16th Generation (16G) represents the latest series of Dell servers as of 2023, featuring the newest technologies and enhancements.

Evaluation of Options:

Option A: R650

Explanation: The PowerEdge R650 is a 15th Generation (15G) server.

Conclusion: Not a 16G server.

Option B: MX760C

Explanation: The PowerEdge MX760c is a compute sled for the Dell PowerEdge MX7000 modular chassis.

Generation: It is part of the 16th Generation, but it is a modular blade server, not a rack server.

Conclusion: Since the question asks for rack servers, this may not be the best fit.

Option C: R760

Explanation: The PowerEdge R760 is a 16th Generation rack server.

Features:

2U rack form factor

Supports latest Intel Xeon Scalable processors

Enhanced performance and scalability

Conclusion: Correct Answer.

Option D: C6620

Explanation: The PowerEdge C6620 is a 15th Generation server designed for high-density compute environments.

Conclusion: Not a 16G server.

Option E: XE9680

Explanation: The PowerEdge XE9680 is a 16th Generation rack server designed for extreme performance, particularly for AI and HPC workloads.

Features:

Supports up to eight GPUs

High-performance computing capabilities

Conclusion: Correct Answer.

Additional Notes:

Rack Servers vs. Modular Servers:

Rack Servers: Standalone servers that mount directly into standard server racks (e.g., R-series, XE-series).

Modular Servers: Compute modules that fit into a shared chassis (e.g., MX-series). While they can be mounted in racks, they are not considered standalone rack servers.

Dell Operate References:

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature: Understanding model numbers helps identify the server generation.

Identify server features and specifications: Recognizing the characteristics of 16G servers.

Position the server in the market landscape: Knowing which servers are current and their intended workloads.

Conclusion:

The PowerEdge R760 and XE9680 are both 16th Generation rack servers. They represent the latest in Dell's server technology and are designed to meet modern data center needs.

Understanding the Unique Attribute of the Lifecycle Log

Server Troubleshooting (32%)

Explain the server logs and memory error

What is the Lifecycle Log?

The Lifecycle Log in Dell PowerEdge servers is a comprehensive log that records system events related to hardware configuration changes, firmware updates, errors, and other critical information. It is maintained by the Integrated Dell Remote Access Controller (iDRAC) and provides valuable data for troubleshooting and auditing.

Unique Attribute of the Lifecycle Log

Message ID:

Explanation:

Each entry in the Lifecycle Log is assigned a unique Message ID.

The Message ID is a specific code that identifies the type of event or error.

These codes are standardized and can be cross-referenced with Dell's documentation to understand the exact nature of the event.

Uniqueness:

While other logs may include timestamps, severity indicators, and event descriptions, the use of standardized Message IDs is unique to the Lifecycle Log.

This attribute allows for precise identification and correlation of events across systems.

Explanation of Options

Option A: Message ID

Analysis:

The Message ID is unique to the Lifecycle Log, providing specific identifiers for events.

Conclusion: Correct Answer.

Option B: Severity indicator

Analysis:

Severity indicators (e.g., informational, warning, critical) are common in various system logs.

Not unique to the Lifecycle Log.

Conclusion: Incorrect.

Option C: System event is recorded

Analysis:

Recording system events is a fundamental function of all logs.

Not an attribute unique to the Lifecycle Log.

Conclusion: Incorrect.

Option D: Date and timestamp

Analysis:

Date and timestamp entries are standard in virtually all logs to indicate when events occurred.

Not unique to the Lifecycle Log.

Conclusion: Incorrect.

Dell Operate References

Server Troubleshooting (32%)

Explain the server logs and memory error:

Understanding the structure and attributes of the Lifecycle Log is essential for effective troubleshooting.

Recognizing the importance of Message IDs aids in diagnosing and resolving issues quickly.

Server Management and Configuration Tools (14%)

Explain the management interface options - LCC, racadm, OMSA, iSM, OME:

The Lifecycle Controller (LCC) and iDRAC provide access to the Lifecycle Log and its detailed entries.

Conclusion

The Message ID is the attribute unique to the Lifecycle Log. It allows administrators to identify and interpret specific events accurately, facilitating efficient troubleshooting and system management.

Understanding the Last Crash Tool in iDRAC

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST

What is the Last Crash Tool in iDRAC?

Last Crash Screen: A feature in iDRAC that captures the last crash screen output from the operating system before a system crash or unexpected reboot.

Purpose: Provides valuable information for diagnosing the cause of a system crash, aiding in troubleshooting efforts.

Operating System Support

The Last Crash Screen feature is dependent on the operating system's ability to output crash information to the VGA console, which iDRAC can then capture.

Explanation of Options

Option A: MS Windows

Explanation: While Windows systems do produce crash screens (Blue Screen of Death), capturing this screen via iDRAC requires specific configurations and may not be fully supported.

Conclusion: Less likely to be the correct answer.

Option B: ESXi

Explanation: VMware ESXi can produce Purple Screen of Death (PSOD), but capturing this via iDRAC's Last Crash Screen feature is not typically supported without additional configuration.

Conclusion: Less likely to be the correct answer.

Option C: SUSE Linux

Explanation: SUSE Linux supports kernel crash dumps and can output crash information to the console, which iDRAC can capture using the Last Crash Screen feature.

Conclusion: Correct Answer.

Option D: Unix

Explanation: "Unix" is a broad term encompassing various operating systems. Without specifying, it's unclear which Unix variant is being referred to, and support may vary.

Conclusion: Less specific; not the best answer.

Dell Operate References

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST: Emphasizes the importance of understanding features like the Last Crash Screen for troubleshooting.

System Administration (18%)

Verify health status and iDRAC license: Ensuring that the necessary features are enabled and supported on the operating system in use.

Conclusion

SUSE Linux supports the Last Crash Screen tool in iDRAC, allowing for the capture and analysis of crash information directly from the server's console output.

Understanding the iDRAC Direct USB Port and Its Default IP Address

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Overview of iDRAC Direct USB Port

The Integrated Dell Remote Access Controller (iDRAC) provides remote management capabilities for Dell PowerEdge servers. The iDRAC Direct USB port allows administrators to connect directly to the iDRAC interface using a USB cable, facilitating quick and secure server management without needing network access.

Default IP Address for iDRAC Direct USB Port

When an administrator connects to the iDRAC Direct USB port, the connection is assigned a default IP address to establish communication between the server and the management station. The default IP address is crucial for accessing the iDRAC web interface via a browser.

The default IP address for the iDRAC Direct USB connection is 169.254.0.3.

Explanation of Options

Option A: 169.254.0.3

Correct Answer: This is the default IP address assigned to the iDRAC Direct USB port for direct management access.

Option B: 169.254.0.4

Incorrect: This IP address is not the default for the iDRAC Direct USB port.

Option C: 192.168.1.20

Incorrect: While this is a common private IP address, it is not used by default for iDRAC Direct USB connections.

Option D: 192.168.0.20

Incorrect: Similar to Option C, this is a private IP address but not associated with the iDRAC Direct USB port.

Dell Operate References

Server Management and Configuration Tools (14%): Understanding different connection methods to iDRAC is essential.

Define the function of the iDRAC, login procedures, licensing, and connection methods: Knowledge of default IP addresses and connection protocols is crucial for effective server management.

Conclusion

Knowing the default IP address for the iDRAC Direct USB port allows administrators to establish a direct connection efficiently, ensuring quick access for configuration and troubleshooting tasks.

Understanding iDRAC License Types and Virtual Console Availability

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Overview of iDRAC Licensing

The Integrated Dell Remote Access Controller (iDRAC) provides administrators with remote management capabilities for Dell PowerEdge servers. iDRAC comes with different license levels, each offering various features:

iDRAC Basic

Limited remote management functionality.

Does not support Virtual Console or Virtual Media.

Included by default with most servers.

iDRAC Express

Adds basic remote management features over iDRAC Basic.

Includes monitoring and alerting capabilities.

Does not include Virtual Console access.

iDRAC Enterprise

Offers advanced management features.

Includes Virtual Console and Virtual Media support.

Provides full remote administration capabilities.

iDRAC Datacenter

Includes all features of iDRAC Enterprise.

Adds advanced data center management features, such as telemetry streaming.

Includes Virtual Console functionality.

Explanation of Options

Option A: iDRAC Basic

Incorrect: iDRAC Basic does not provide Virtual Console access.

Option B: iDRAC Datacenter

Correct: Supports Virtual Console, offering advanced remote management features.

Option C: iDRAC Express

Incorrect: Does not include Virtual Console capabilities.

Option D: iDRAC Enterprise

Correct: Provides Virtual Console access and advanced management features.

Dell Operate References

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods: Understanding the different iDRAC license levels and their associated features is crucial for effective server management.

System Administration (18%)

Configure user access: Knowing which licenses enable certain features helps in setting up appropriate user permissions.

Conclusion

The Virtual Console feature is available with both iDRAC Enterprise and iDRAC Datacenter licenses. These licenses enable administrators to perform comprehensive remote management tasks, including accessing the server's console over the network.
