When deploying to Runtime Fabric, there are several tools available within the Anypoint Platform ecosystem that facilitate the deployment process. These include:

• AnypointCLI: This command-line interface tool provides comprehensive capabilities for deploying applications to Runtime Fabric. Using AnypointCLI, you can script and automate deployments, which is useful for integrating into CI/CD pipelines.
• Anypoint Platform REST APIs: These APIs allow for programmatic deployment and management of applications on Runtime Fabric. They provide flexibility for integrating deployment processes with other systems and tools.
• Mule Maven Plugin: This plugin can be used within a Maven project to package and deploy Mule applications to Runtime Fabric as part of a build process.

However, directly uploading a JAR file from the Runtime Manager is not a supported method for deploying to Runtime Fabric.

References:

• Anypoint CLI Documentation
• Mule Maven Plugin Documentation

To discover which API specifications have been created within the organization before starting a new project, a developer can use Anypoint Exchange. Anypoint Exchange is a centralized repository on the Anypoint Platform where developers can find, share, and collaborate on API specifications, connectors, templates, and other reusable assets.

In Anypoint Exchange, developers can browse the currently released API specifications, try them out using the built-in testing tools, and access documentation and other resources. This facilitates the reuse of existing APIs and ensures that the new project aligns with the organization's API strategy.

References

• MuleSoft Documentation on Anypoint Exchange
• Best Practices for API Reuse and Discovery

Explanation

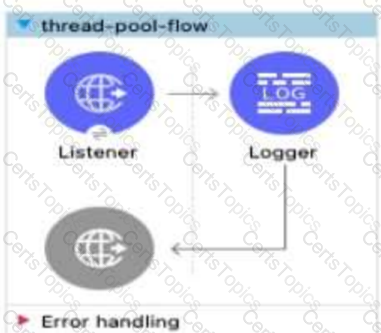

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

To minimize the risk of exposing sensitive data such as credit card information while still allowing it to be converted back to its original value when necessary, tokenization is the most effective approach. Tokenization replaces sensitive data with a non-sensitive equivalent, called a token, which has no exploitable value. This method ensures that the original sensitive data is stored securely and only accessible through a secure tokenization system.

In this scenario, applying a tokenization policy at the API Gateway ensures that sensitive information is replaced with tokens before the data leaves the trusted boundary. This minimizes the risk of matching sensitive data to the original. When the original data is needed, the tokenization system can detokenize the token back to its original value securely.

References:

• MuleSoft Documentation on Tokenization

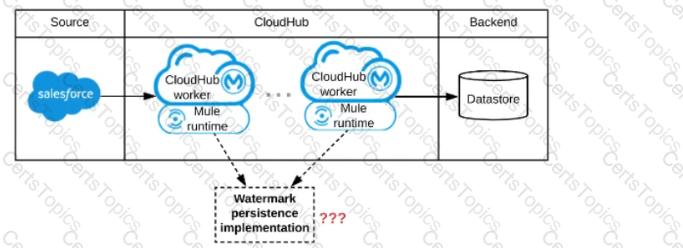

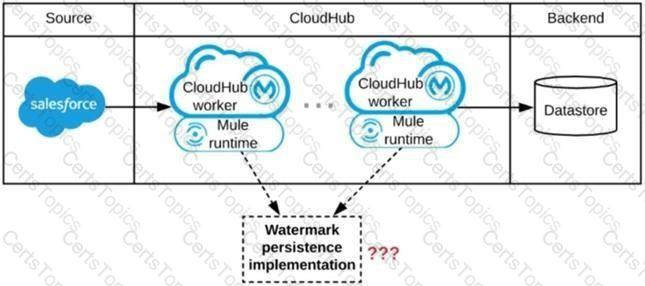

Explanation

* An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

* Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime.

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent.

In a standalone Mule runtime, Mule creates a default persistent store in the file system. If you do not specify an object store, the default persistent object store is used.

MuleSoft Reference:

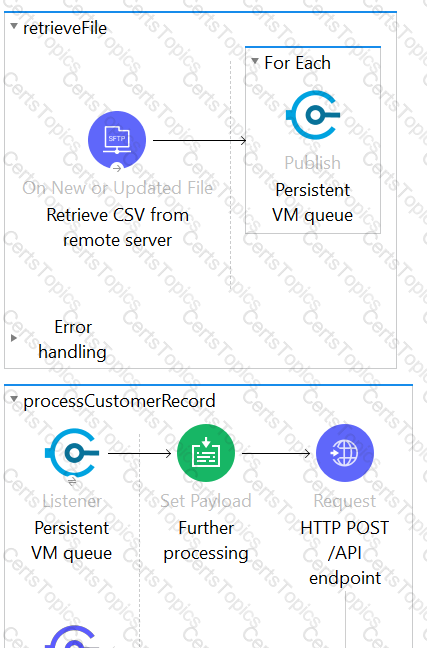

When processing files synchronously from an FTPS server to a back-end database using VM intermediary queues for load balancing VM events on CloudHub, reliability is critical. CloudHub persistent queues should be used for FTPS file processing to ensure that no data is lost in case of worker failure or restarts. These queues provide durability and reliability since they store messages persistently.

For the batch job scope, it is not necessary to configure additional VM queues. By default, batch jobs on CloudHub use the worker's disk for VM queueing, which is reliable for handling medium-rate records processing from a source to a target system. This approach ensures that both FTPS file processing and batch job processing meet reliability requirements without additional configuration for batch job scope.

References

• MuleSoft Documentation on CloudHub and VM Queues
• Anypoint Platform Best Practices

• Requirement Analysis: The Mule application needs secure access to both an on-premises database and a Kafka cluster in AWS VPC.
• Solution: Setting up Anypoint VPN for the on-premises corporate data center and VPC peering with AWS VPC ensures secure and seamless connectivity.
• Implementation Steps:
• Advantages:

References

• MuleSoft Documentation on Anypoint VPN
• AWS Documentation on VPC Peering

To ensure that the Java Invoke static connector in a Mule 4 application can access a static method in a dependency jar file, you need to make the dependency visible to the connector's class loader. Here are the two effective methods to achieve this:

• Using Maven Command:

com.example example-library 1.0.0

• uk.co.certification.simulator.questionpool.PList@18be75a0

mvn clean package

• Configuring Dependency as a Shared Library:

xml

com.example example-library 1.0.0 provided

• Steps for Java Invoke Configuration:
• Benefits:

References:

• MuleSoft Documentation on Java Module
• Maven Documentation on Dependency Management

Explanation

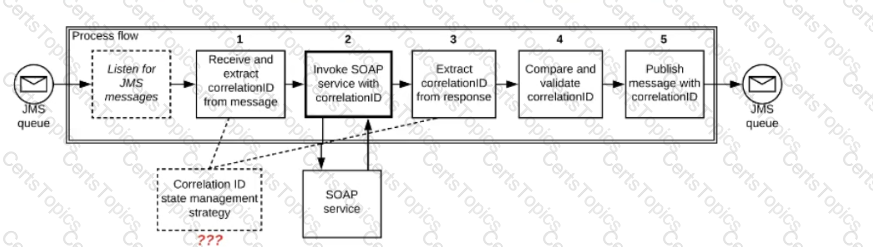

* If we store Correlation id value in step 1 as Mule event variables/attributes, the values will be cleared after server restart and we want system to be fault tolerant.

* The Correlation ID value in Step 1 should be stored in a persistent object store.

* We don't need to store Correlation ID value in Step 3 to persistent object store. We can store it but as we also need to make application performant. We can avoid this step of accessing persistent object store.

*  Accessing persistent object stores slow down the performance as persistent object stores are by default stored in shared file systems.

*  As the SOAP service is idempotent in nature. In case of any failures , using this Correlation ID saved in first step we can make call to SOAP service and validate the Correlation ID.

Top of Form

Additional Information:

* Competing Consumers are multiple consumers that are all created to receive messages from a single Point-to-Point Channel. When the channel delivers a message, any of the consumers could potentially receive it. The messaging system's implementation determines which consumer actually receives the message, but in effect the consumers compete with each other to be the receiver. Once a consumer receives a message, it can delegate to the rest of its application to help process the message.

Diagram Description automatically generated

* In case you are unaware about term idempotent re is more info:

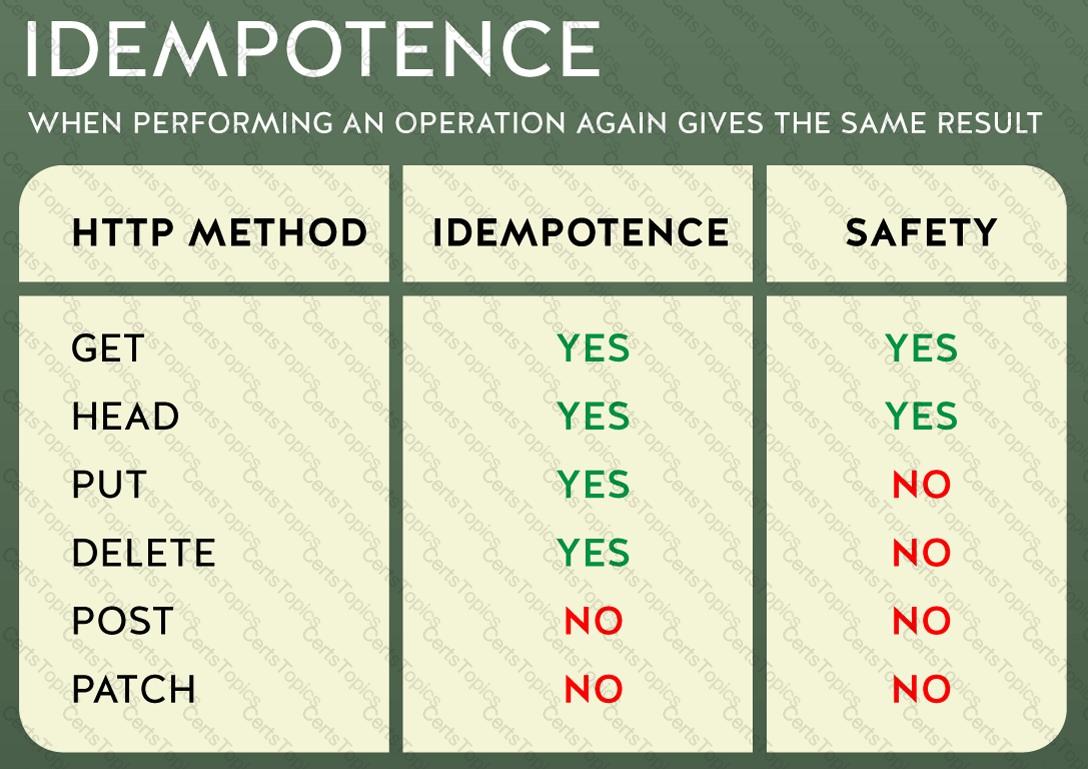

Idempotent operations means their result will always same no matter how many times these operations are invoked.

Table Description automatically generated

Bottom of Form

To meet the requirements of enriching logging with more context and improving throughput while reducing latency, the customer should use an asynchronous logging approach. Here's why option B is correct:

• Async Logger: Asynchronous logging helps in improving the performance by decoupling the logging from the main thread of execution. This reduces the latency of message processing since logging operations are offloaded to a separate thread.
• Logging Level Greater than INFO: Logging at levels such as WARN, ERROR, or FATAL ensures that only essential logs are written asynchronously, further enhancing performance. Avoiding DEBUG or TRACE levels unless necessary reduces the overhead of logging.
• Pattern Layout with [%MDC]: Using the pattern layout with [%MDC] in the log4j2.xml configuration file allows the inclusion of mapped diagnostic context in the logs. MDC is a feature that provides context-specific information, such as transaction IDs or user IDs, which helps in tracing and debugging.

Example configuration in log4j2.xml:

This configuration ensures that the logs are enriched with context information provided by MDC and processed asynchronously to maintain high throughput and low latency.

References

• Log4j2 Asynchronous Logging
• Mapped Diagnostic Context (MDC) in Log4j2

When configuring the TLS context for an HTTP request to the Google Maps API, the primary goal is to ensure that the Mule application can establish a secure connection. Here’s a detailed explanation of the necessary steps:

• Download Google Public Certificate:
• Generate JKS File from Certificate:

keytool -importcert -file google.cer -keystore truststore.jks -alias google

• Add JKS File to Truststore:

• Configure HTTP Request Connector:

By completing these steps, your Mule application will trust the Google Maps API server’s certificate, allowing for secure communication.

References

• MuleSoft Documentation: Configuring TLS
• Google Maps API Documentation

Explanation

* Organization should continue to use SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching.

* Reason is that Anypoint exchange is not full fledged version repositories like GitHub.

* But at same time it is tightly coupled with Mule assets

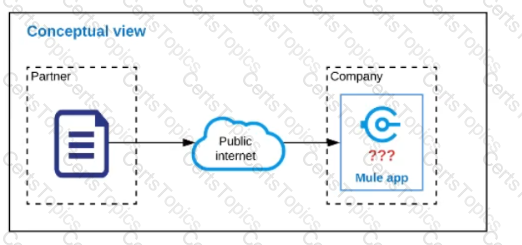

To securely consume compressed and digitally signed files from a partner's FTPS server, the following inputs are required:

• PGP Public Key of the Partner:
• PGP Private Key for the Company:
• FTP Username and Password:

By using these inputs, the Mule application can securely connect to the FTPS server, verify the integrity and authenticity of the files using PGP, and decrypt the contents for further processing.

References

• MuleSoft FTPS Connector
• MuleSoft PGP Module

Explanation

● Option A says "Perform EACH DB insert in a SEPARATE DB transaction". In this case if first DB insert is successful and second one fails then first insert won't be rolled back causing inconsistency. This option is ruled out.

● Option D says Perform BOTH DB inserts in ONE DB transaction.

Rule of thumb is when one or more DB connections are required we must use XA transaction as local transactions support only one resource. So this option is also ruled out.

● Option B acknowledges the before DB processing, so message is removed from the queue. In case of system failure at later point, message can't be retrieved.

● Option C is Valid: Though it says "do not ack JMS message", message will be auto acknowledged at the end of transaction. Here is how we can ensure all components are part of XA transaction:

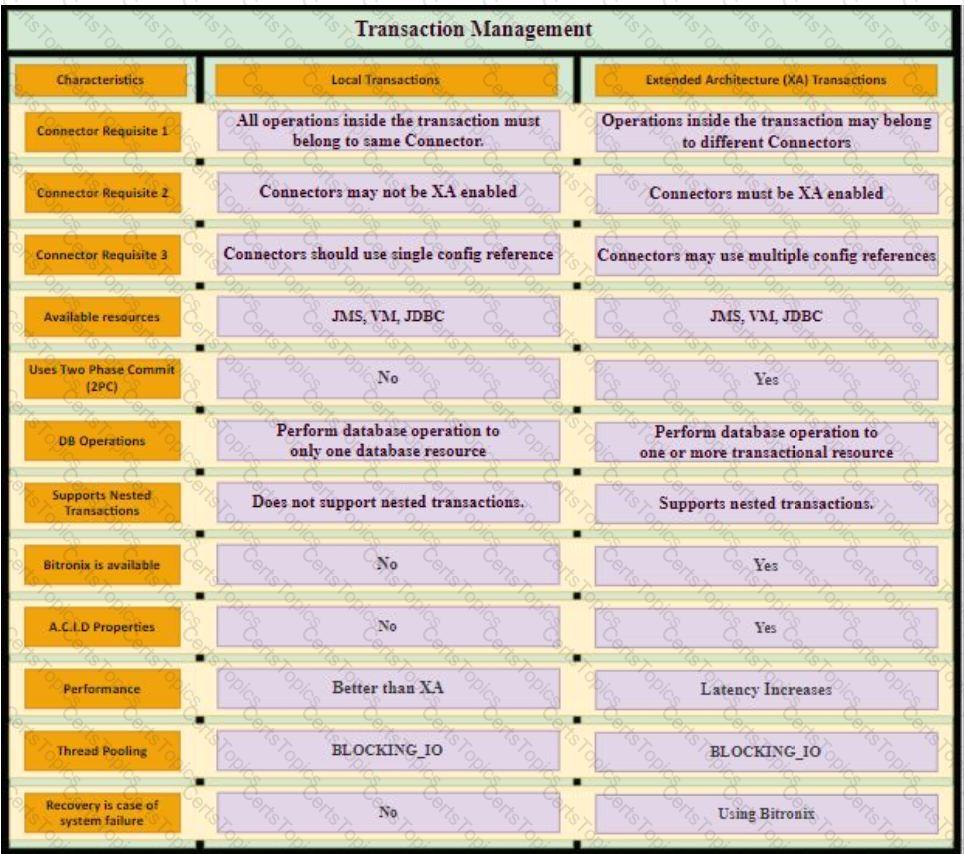

Additional Information about transactions:

● XA Transactions - You can use an XA transaction to group together a series of operations from multiple transactional resources, such as JMS, VM or JDBC resources, into a single, very reliable, global transaction.

● The XA (eXtended Architecture) standard is an X/Open group standard which specifies the interface between a global transaction manager and local transactional resource managers.

The XA protocol defines a 2-phase commit protocol which can be used to more reliably coordinate and sequence a series of "all or nothing" operations across multiple servers, even servers of different types

● Use JMS ack if

– Acknowledgment should occur eventually, perhaps asynchronously

– The performance of the message receipt is paramount

– The message processing is idempotent

– For the choreography portion of the SAGA pattern

● Use JMS transactions

– For all other times in the integration you want to perform an atomic unit of work

– When the unit of work comprises more than the receipt of a single message

– To simply and unify the programming model (begin/commit/rollback)

To reduce the overall development time to release the System API, the most efficient approach is to use the Anypoint Connector for Salesforce. This connector is specifically designed to interact with Salesforce APIs, providing a seamless and optimized way to access customer data directly from Salesforce. Using this connector simplifies development, reduces complexity, and leverages built-in capabilities for authentication and data retrieval, ensuring a faster and more secure implementation.

References:

• Anypoint Connector for Salesforce
• Connecting to Salesforce with Anypoint Platform

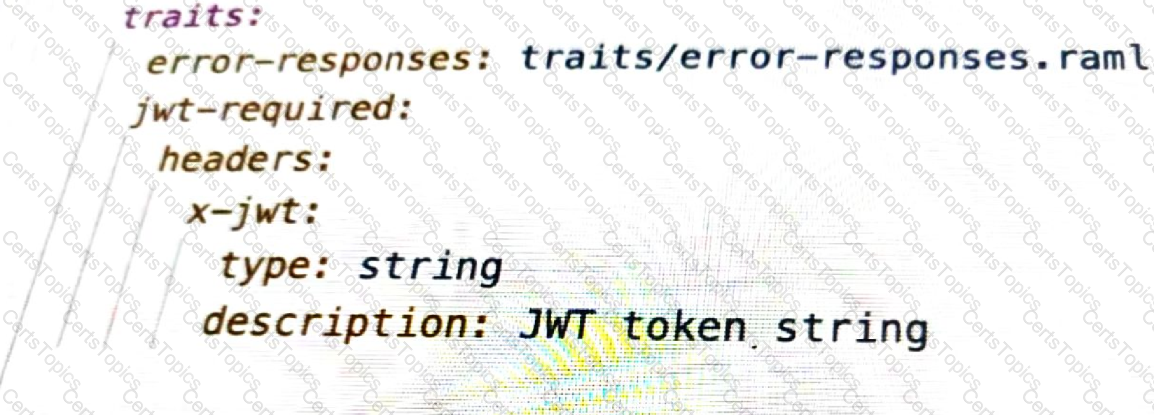

The data format shown in the exhibit is YAML (YAML Ain't Markup Language). YAML is a human-readable data serialization standard that is commonly used for configuration files and data exchange between languages with different data structures. In the exhibit, the indentation and the use of colons to define key-value pairs are characteristic of YAML.

JSON (JavaScript Object Notation) and XML (eXtensible Markup Language) have different syntax structures, and CSV (Comma-Separated Values) is a flat file format that uses commas to separate values. The format shown in the exhibit fits the structure and style of YAML.

References

• YAML Specification Documentation
• MuleSoft Documentation on Supported Data Formats

Explanation

An SLA for the upstream API CANNOT be provided.

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

• NIST Definition of Cloud Computing
• Hybrid Cloud Overview and Benefits

To support the company's goals of unlocking key systems and data, quickly deploying scalable APIs, and connecting to on-premises systems, while also preparing for future migrations, the best runtime deployment option is using Runtime Fabric on self-managed Kubernetes. Here's why:

• Scalability: Kubernetes is designed to scale applications easily and efficiently. By deploying Mule runtimes on a self-managed Kubernetes cluster, the company can dynamically scale its APIs based on demand, ensuring performance and reliability.
• Flexibility: Running on self-managed Kubernetes allows the company to have control over the infrastructure. They can customize the environment to meet their specific needs, integrate with existing on-premises systems, and support their microservices architecture running in Docker containers.
• Future-Proofing: Kubernetes supports hybrid and multi-cloud deployments, making it easier to migrate workloads between different environments as needed. This aligns with the company's goal of being able to migrate their systems as part of their strategic approach.
• Efficiency: By leveraging Kubernetes, the company can automate deployment, scaling, and management of containerized applications, reducing the burden on IT and DevOps teams.

References:

• MuleSoft Documentation on Runtime Fabric: https://docs.mulesoft.com/runtime-fabric/1.9/
• Kubernetes Documentation: https://kubernetes.io/docs/home/

Data confidentiality involves protecting information from unauthorized access and disclosure. Encrypting a file containing personally identifiable information (PII) is a prime example of ensuring data confidentiality. Encryption transforms the data into a format that is unreadable without the appropriate decryption key, thereby safeguarding sensitive information such as PII from being accessed by unauthorized parties. This measure is essential for compliance with data protection regulations and maintaining the privacy and security of personal data.

References

• MuleSoft Security Best Practices
• Data Protection and Encryption Standards Documentation

In a microservices application architecture, each service is designed to be an independent deployment artifact. This means that services can be deployed, updated, and scaled independently of one another. This characteristic allows for greater flexibility and agility in managing applications, as individual services can be scaled up or down based on demand without impacting other services. It also enhances fault isolation, as issues in one service do not necessarily affect the entire application.

This is in contrast to monolithic architectures, where all components are packaged and deployed together, often resulting in a single point of failure and difficulties in scaling and updating specific parts of the application.

References

• MuleSoft Documentation on Microservices Architecture
• Principles of Microservices Design

Explanation

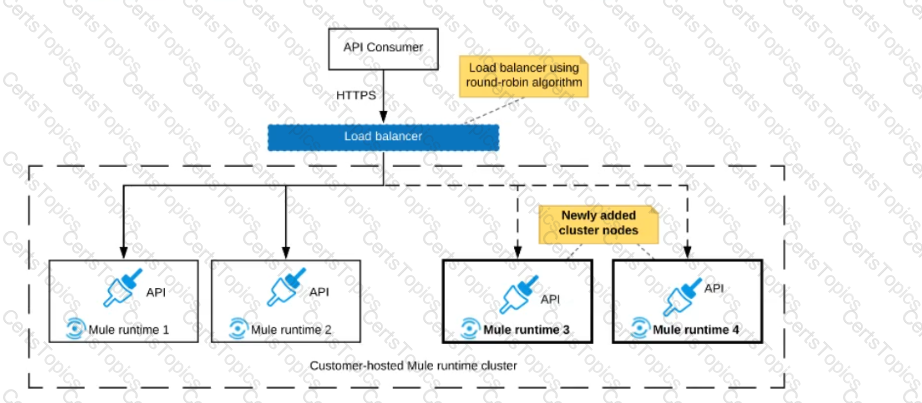

* Mule High Availability Clustering provides basic failover capability for Mule. * When the primary Mule Runtime becomes unavailable, for example, because of a fatal JVM or hardware failure or it’s taken offline for maintenance, a backup Mule Runtime immediately becomes the primary node and resumes processing where the failed instance left off. * After a system administrator recovers a failed Mule Runtime server and puts it back online, that server automatically becomes the backup node. In this case, Alice, once up, will become backup ---------------------------------------------------------------------------------------------------------------------------------------------- Reference: So correct choice is : Files are polled form Bob node Bob is now the primary node

After completing the build and test activities for a Mule application that implements a System API, the team should use Runtime Manager to both deploy and monitor the System API implementation. Runtime Manager is a component of Anypoint Platform that provides capabilities for deploying, managing, and monitoring Mule applications and APIs. It allows teams to manage applications and APIs across various environments, ensuring they operate correctly and efficiently.

References:

• Anypoint Runtime Manager
• Deploying and Managing Applications with Runtime Manager

Explanation

* As per definition of API by Mulesoft , it is Application Programming Interface using HTTP-based protocols. Non-HTTP-based programmatic interfaces are not APIs.

* HTTP-based programmatic interfaces are APIs even if they don’t use REST or JSON. Hence implementation based on Java RMI, CORBA/IIOP, raw TCP/IP interfaces are not API's as they are not using HTTP.

* One more thing to note is FTP was not built to be secure. It is generally considered to be an insecure protocol because it relies on clear-text usernames and passwords for authentication and does not use encryption.

* Data sent via FTP is vulnerable to sniffing, spoofing, and brute force attacks, among other basic attack methods.

Considering the above points only correct option is

-XML over ActiveMQ

- XML over SFTP

- XML/REST over HTTPS

Before API developers implement the API specification, it is crucial for the API designer to publish the API specification to Anypoint Exchange and solicit feedback from the API's consumers. This step aligns with MuleSoft's recommended approach to full lifecycle API development, which emphasizes collaboration and feedback to ensure the API meets the needs and expectations of its consumers.

Generating test cases, creating an API portal, and versioning the API specification are important steps in the development lifecycle, but soliciting feedback ensures that any potential issues or improvements are identified early in the process. This collaborative approach helps in building a more effective and consumer-friendly API.

References

• MuleSoft API Design Best Practices
• Anypoint Platform Documentation on API Development Lifecycle

Object Store v2 (OSv2) in MuleSoft allows multiple applications within the same Anypoint Virtual Private Cloud (VPC) to share data. To achieve this, the OSv2 connector must be configured in each application to access the common persistent object store instance. This configuration enables the applications to read from and write to the same object store, facilitating data sharing. Object Store v2 is designed to be persistent and reliable, making it suitable for scenarios where data needs to be retained and shared across multiple applications.

References:

• MuleSoft Documentation on Object Store v2

Explanation

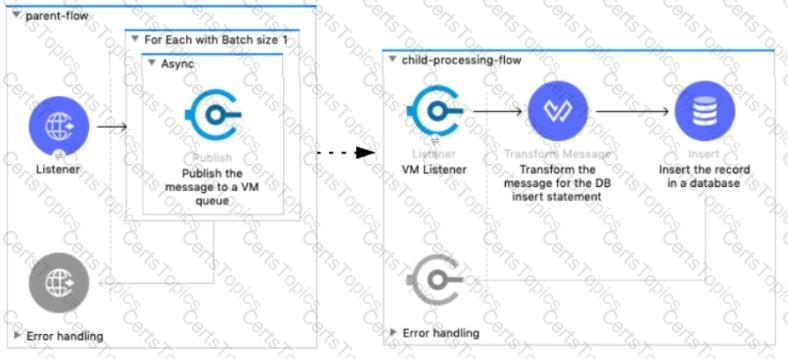

Correct answer is For Each scope in the parent flow On Error Continue error handler in the child flow. You can extract below set of requirements from the question a) Records should be sent to downstream system in the same order that it was received in the array b) Any validation or communication failures should not prevent further processing of the remaining records First requirement can be met using For Each scope in the parent flow and second requirement can be met using On Error Continue scope in child flow so that error will be suppressed.

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

• Create a Mule domain project.
• Add the Database connector and its configuration to the domain project.
• Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

• MuleSoft Documentation on Domain Projects
• Best Practices for Reusable Configuration in MuleSoft

To ensure that data is encrypted both in-transit and at-rest, and to validate incoming requests to the Payment Processing API, the following approach is recommended:

• TLS Inbound Policy: Apply a Transport Layer Security (TLS) - Inbound policy in API Manager. This policy ensures that the data is encrypted during transmission and can be decrypted by the API Manager before it reaches the Mule application.
• Decryption: With the TLS policy applied, the message payload is decrypted when it is received by the API Manager.
• JSON Validation: After decryption, the Mule application can use the JSON Validation module to validate the structure and content of the JSON data. This ensures that the payload conforms to the specified format and contains valid data.

This approach ensures that data is securely transmitted and properly validated upon receipt.

References:

• Transport Layer Security (TLS) Policies
• JSON Validation Module

Anypoint Platform provides the productivity advantage of automatic API proxy generation. This feature enables developers to quickly create proxies for their APIs, which act as intermediaries that forward requests to the appropriate backend services. Automatic proxy generation simplifies the process of securing and managing APIs, allowing developers to enforce policies, monitor traffic, and analyze usage without having to manually configure these aspects.

References:

• API Proxies on Anypoint Platform
• Improving API Productivity with Anypoint Platform

Explanation

Context of the question is about managing and governing mule applications deployed on Anypoint platform.

Anypoint API Manager (API Manager) is a component of Anypoint Platform that enables you to manage, govern, and secure APIs. It leverages the runtime capabilities of API Gateway and Anypoint Service Mesh, both of which enforce policies, collect and track analytics data, manage proxies, provide encryption and authentication, and manage applications.

Mule Ref Doc :

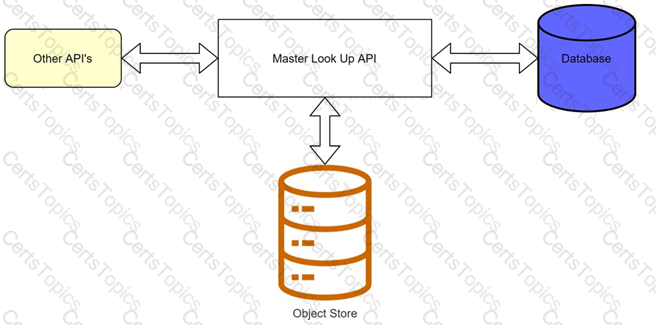

To design a caching strategy that queries the database only when there is an update to the Employees table, follow these steps:

• On Table Row Operation: Configure an On Table Row operation to monitor the Employees table for updates.
• Invalidate Cache: When the On Table Row operation detects an update, trigger the invalidate cache operation to clear the cache.
• Object Store Caching Strategy: Use an object-store-caching-strategy to store the cached responses.
• Default Expiration Interval: Use the default expiration interval for the cache, which ensures that cached data is invalidated based on the detection of changes in the Employees table rather than a fixed time interval.

This strategy ensures that the cache is only invalidated when there are actual changes in the Employees table, thereby minimizing redundant transactions and optimizing database performance.

References

• MuleSoft Documentation on Caching Strategies
• Best Practices for Database Integration with MuleSoft

Explanation

Correct answer is Use a Batch job scope to bulk insert records into the database

* Batch Job is most efficient way to manage millions of records.

A few points to note here are as follows :

Reliability: If you want reliabilty while processing the records, i.e should the processing survive a runtime crash or other unhappy scenarios, and when restarted process all the remaining records, if yes then go for batch as it uses persistent queues.

Error Handling: In Parallel for each an error in a particular route will stop processing the remaining records in that route and in such case you'd need to handle it using on error continue, batch process does not stop during such error instead you can have a step for failures and have a dedicated handling in it.

Memory footprint: Since question said that there are millions of records to process, parallel for each will aggregate all the processed records at the end and can possibly cause Out Of Memory.

Batch job instead provides a BatchResult in the on complete phase where you can get the count of failures and success. For huge file processing if order is not a concern definitely go ahead with Batch Job

A design-first approach in API development focuses on creating a detailed API specification before any implementation begins. This specification acts as a contract that defines the API's endpoints, request/response formats, and error codes. By developing this specification early, potential consumers can provide feedback, and testing can be conducted against mock implementations to ensure the API meets their needs. This approach helps identify issues early in the development process, improving the likelihood of successful implementation and adoption.

References:

• API Design Best Practices
• Design-First API Development

Explanation

Correct answer is It is not possible to store logs for 2 years in CloudHub deployment. External log management system is required. CloudHub has a specific log retention policy, as described in the documentation: the platform stores logs of up to 100 MB per app & per worker or for up to 30 days, whichever limit is hit first. Once this limit has been reached, the oldest log information is deleted in chunks and is irretrievably lost. The recommended approach is to persist your logs to a external logging system of your choice (such as Splunk, for instance) using a log appender. Please note that this solution results in the logs no longer being stored on our platform, so any support cases you lodge will require for you to provide the appropriate logs for review and case resolution

Explanation

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

Below are the typical characteristics of unit testing.

-- Unit tests do not require deployment into any special environment, such as a staging environment

-- Unit tests san be run from within an embedded Mule runtime

-- Unit tests can/should be implemented using MUnit

-- For read-only interactions to any dependencies (such as other APIs): allowed to invoke production endpoints

-- For write interactions: developers must implement mocks using MUnit

-- Require knowledge of the implementation details of the API implementation under test

Explanation

* XA transaction add tremendous latency so "Reduce Latency" is incorrect option XA transactions define "All or No" commit protocol.

* Each local XA resource manager supports the A.C.I.D properties (Atomicity, Consistency, Isolation, and Durability).

---------------------------------------------------------------------------------------------------------------------

So correct choice is "Ensure consistency"

Explanation

* Object Store and VM Store is used for sharing data inter or intra mule applications in same setup. Can't be used with external Business Partner

* Also File connector will not be useful as the two companies currently have no shared IT infrastructure. It's specific for local use.

* Correct answer is SFTP connector. The SFTP Connector implements a secure file transport channel so that your Mule application can exchange files with external resources. SFTP uses the SSH security protocol to transfer messages. You can implement the SFTP endpoint as an inbound endpoint with a one-way exchange pattern, or as an outbound endpoint configured for either a one-way or request-response exchange pattern.

According to the MuleSoft Catalyst framework, an Integration Architect plays a crucial role in defining and achieving business outcomes. One of their key responsibilities is to agree upon Key Performance Indicators (KPIs) and help develop an overall success plan. This involves working with stakeholders to identify measurable goals and ensure that the integration initiatives align with the organization’s strategic objectives.

KPIs are critical for tracking progress, measuring success, and making data-driven decisions. By agreeing on KPIs and developing a success plan, the Integration Architect ensures that the organization can objectively measure the impact of its integration efforts and adjust strategies as needed to achieve desired business outcomes.

References:

• MuleSoft Catalyst Knowledge Hub

Explanation

* Setting a transaction timeout for the Bitronix transaction manager

● Set the transaction timeout either

– In wrapper.conf

– In CloudHub in the Properties tab of the Mule application deployment

● The default is 60 secs. It is defined as

mule.bitronix.transactiontimeout = 120

* This property defines the timeout for each transaction created for this manager.

If the transaction has not terminated before the timeout expires it will be automatically rolled back.

---------------------------------------------------------------------------------------------------------------------

Additional Info around Transaction Management:

Bitronix is available as the XA transaction manager for Mule applications

● To use Bitronix, declare it as a global configuration element in the Mule application

● Each Mule runtime can have only one instance of a Bitronix transaction manager, which is shared by all Mule applications

● For customer-hosted deployments, define the XA transaction manager in a Mule domain

– Then share this global element among all Mule applications in the Mule runtime

Graphical user interface, table Description automatically generated with medium confidence

Anypoint Exchange is the Anypoint Platform component that helps integration developers discover and share reusable APIs, connectors, and templates. It acts as a central repository where developers can publish and access various assets, facilitating reuse and collaboration within the organization. By using Anypoint Exchange, developers can reduce duplication of effort, speed up development processes, and ensure consistency across integrations.

Other components like API Manager, Anypoint Studio, and Design Center serve different purposes, such as managing APIs, developing Mule applications, and designing API specifications, but they are not specifically focused on discovering and sharing reusable assets.

References

• MuleSoft Documentation on Anypoint Exchange
• Best Practices for Asset Reuse on Anypoint Platform

CloudHub, part of MuleSoft's Anypoint Platform, is an example of a Platform as a Service (PaaS) offering. PaaS provides a cloud-based platform that allows developers to build, deploy, and manage applications without dealing with the complexities of maintaining the underlying infrastructure. CloudHub provides the necessary tools and services to develop and deploy Mule applications and APIs in the cloud, offering features such as scalability, high availability, monitoring, and management. This allows developers to focus on writing code and developing applications rather than managing servers and infrastructure.

References

• MuleSoft CloudHub Documentation
• Overview of Cloud Computing Service Models

Explanation

* Clustering is a group of servers or mule runtime which acts as a single unit.

* Mulesoft Enterprise Edition supports scalable clustering to provide high availability for the Mulesoft application.

* In simple terms, virtual servers composed of multiple nodes and they communicate and share information through a distributed shared memory grid.

* By default, Mulesoft ensures the High availability of applications if clustering implemented.

* Let's consider the scenario one of the nodes in cluster crashed or goes down and under maintenance. In such cases, Mulesoft will ensure that requests are processed by other nodes in the cluster. Mulesoft clustering also ensures that the request is load balanced between all the nodes in a cluster.

* Clustering is only supported by on-premise Mule runtime and it is not supported in Cloudhub.

Correct answer is External monitoring tools or log aggregators must be configured to recognize the new nodes

* Rest of the options are automatically taken care of when a new node is added in cluster.

A. Implement HTTP caching policy for all GET endpoints for the master lookup API and implement locking to synchronize access to object store

Comprehensive Detailed Step by Step ExplanationTo resolve the performance issue observed during the performance testing of the Master lookup API, the best approach involves caching and synchronization:

• HTTP Caching Policy:
• Object Store Locking:

By implementing these two strategies, the response time of the Master lookup API will be significantly improved, and the performance issue will be resolved.

References

• MuleSoft HTTP Caching Policy
• MuleSoft Object Store Connector

When multiple Mule applications need to listen on the same port (e.g., port 443), configuring them individually will cause a conflict because only one application can bind to a specific port on a server at a time. To resolve this, you can use a Mule domain project, which allows multiple Mule applications to share configurations, including HTTP listeners. Here’s how you can do it:

• Create a Mule Domain Project:
• Configure the Shared HTTP Listener:

• Reference the Shared HTTP Listener in Mule Applications:

• Deploy the Domain Project and Applications:

By using a domain project to centralize the HTTP listener configuration, you ensure that both APIs can listen on port 443 without conflicts, allowing customers to access both APIs through the same port.

References

• MuleSoft Documentation: Domain Projects
• MuleSoft Documentation: HTTP Listener Configuration

In the context of Mule applications running on Runtime Fabric for Self-Managed Kubernetes (RTF-BYOKS) in a multi-cloud environment, understanding the thread pools used for communication between Agents and Runtime Manager is crucial:

• Shared NIO Selector Pool: This pool is responsible for handling non-blocking IO operations, such as network communication. It ensures efficient handling of IO operations by using a small number of threads to manage multiple IO tasks simultaneously.
• CPU_LITE: This thread pool is used for lightweight CPU operations. It is designed to handle tasks that do not require significant computational resources, ensuring that lightweight operations are processed efficiently without overwhelming the system.

The combination of the Shared NIO Selector Pool and CPU_LITE thread pool ensures efficient and reliable communication between Agents and Runtime Manager in the RTF environment.

References:

• MuleSoft Threading and Thread Pools
• Runtime Fabric Architecture

To close the IT delivery gap, MuleSoft recommends that IT organizations make their technology assets easily discoverable via a central repository. This approach ensures that existing assets, such as APIs, connectors, templates, and other reusable components, are accessible to all teams within the organization. By having a central repository, teams can quickly find and leverage these assets, reducing duplication of effort, speeding up project delivery, and fostering a culture of reuse and collaboration. This strategy aligns with the principles of an API-led connectivity approach, where reusable assets and APIs form the foundation for scalable and efficient IT delivery.

References

• MuleSoft Documentation on API-led Connectivity
• Anypoint Platform Best Practices for Asset Management

Leveraging existing Java-based capabilities for data transformations in a Mule application can enhance efficiency and reuse. Here’s how to integrate Java classes for transformations:

• Create Java Classes:
• Configure DataWeave to Call Java Methods:

%dw 2.0 import * from my.package.ClassName output application/json --- { transformedData: ClassName::methodName(payload) }

• Perform Transformations:
• Test Transformations:

This approach allows for seamless integration of existing Java logic into Mule applications, leveraging DataWeave’s power for comprehensive data transformations.

References

• MuleSoft Documentation: DataWeave and Java Integration
• MuleSoft Documentation: Using Java with Mule

Explanation

Correct answer is Workers are randomly distributed across available AZs within that region. This ensure high availability for deployed mule applications Mulesoft documentation reference :

Scatter-Gather sends a request message to multiple targets concurrently. It collects the responses from all routes, and aggregates them into a single message.

Explanation

•Scatter Gather: When running within a transaction, Scatter Gather does not execute in parallel. This means that the second route is executed after the first one is processed, the third after the second one, etc. In case of error, all routes will be rolled back

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

Explanation

High availability is about up-time of your application

A) High availability can be achieved only in CloudHub isn't correct statement. It can be achieved in customer hosted runtime planes as well

B) An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. It can be used for disaster recovery but not for High Availability. Using object store can't guarantee that all instances won't go down at once. So not an appropriate choice.

Explanation

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

• MuleSoft Documentation on MUnit
• Best Practices for Automated Testing with MUnit

• Digital Transformation Goals:
• CloudHub Runtimes:
• Suitability for Digital Transformation:

References:

• MuleSoft Documentation on CloudHub: CloudHub
• MuleSoft Digital Transformation Insights: MuleSoft Digital Transformation

To convey the necessary non-functional requirement (NFR) related to protecting backend services from a high rate of requests according to SLAs, the following steps should be taken:

• Create a Shared RAML Fragment: Develop a RAML fragment that defines the NFR, including the SLAs for different subscription levels ("Gold", "Silver", "Platinum"). This fragment should include the details on rate limiting and throttling based on the new parameter added to the Accounts object.
• Update API Specifications: Integrate the shared RAML fragment into each API specification. This ensures that the NFR is consistently applied across all relevant APIs.
• Publish to Exchange: Publish the updated API specifications and the shared RAML fragment to Anypoint Exchange. This makes the NFR visible and accessible to all stakeholders and developers, ensuring compliance and implementation consistency.

This approach ensures that the NFR is clearly communicated and applied uniformly across all API implementations.

References

• MuleSoft Documentation on RAML and API Specifications
• Best Practices for API Design and Documentation

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

References:

• MuleSoft Documentation on JMS

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

Explanation

Correct answer is IBM: CICS CRM: SOAP

* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.

* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

Explanation

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece:

In a microservices architecture, a service mesh manages the communication between microservices. This involves handling service discovery, load balancing, failure recovery, metrics, and monitoring. Service meshes also provide more complex operational requirements like A/B testing, canary releases, rate limiting, access control, and end-to-end authentication. By abstracting these functionalities away from individual microservices, a service mesh allows developers to focus on business logic while ensuring reliable and secure inter-service communication.

References:

• Understanding Service Mesh
• Service Mesh for Microservices

Explanation

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

When configuring secure communication with an FTPS server and handling signed files, the necessary components include:

• FTPS Server Login Credentials: The username and password used to authenticate with the company's FTPS server.
• TLS Context Trust Store: This should contain the public certificate for the FTPS server (ftps.partner.com) to establish a secure SSL/TLS connection.
• Partner's PGP Public Key: This is used to verify the signature of the files received from the partner, ensuring data integrity and authenticity.

These components collectively ensure secure communication and data validation.

References

• MuleSoft Documentation on FTPS and PGP Encryption
• Best Practices for Secure File Transfer and Encryption

The most performant way to handle intermittent network issues with vendor applications and ensure successful transaction reprocessing is to use a combination of the Scatter-Gather scope and the Until-Successful scope. Here’s how it works:

• Scatter-Gather Scope: This scope allows you to send requests to multiple endpoints (in this case, the two vendor applications) simultaneously. This ensures that both vendors are queried at the same time, reducing overall processing time.
• Until-Successful Scope: This scope is used to implement a retry mechanism. By wrapping each route to the vendor applications with an Until-Successful scope, the flow can automatically retry the request if a timeout error occurs. This scope retries the request until it succeeds or until a specified number of retries is reached.

Implementation Steps:

• Configure a Scatter-Gather scope in your Mule application.
• Inside each route of the Scatter-Gather scope, place an Until-Successful scope.
• Configure the Until-Successful scope with appropriate retry policies, such as retry count and delay between retries.
• Inside the Until-Successful scope, configure the HTTP request to the vendor application.

This approach ensures that:

• Both vendor applications are queried in parallel.
• Each request is retried upon timeout errors, ensuring eventual success without manual intervention.

References:

• MuleSoft Documentation: Scatter-Gather
• MuleSoft Documentation: Until-Successful Scope

When migrating from an on-premises cluster to a Runtime Fabric (RTF) cluster, and needing to enable Mule applications to store and share data across application replicas and restarts, the use of Anypoint Object Store V2 is the most suitable option. Here’s why and how to implement it:

• Understanding Object Store V2:
• Setting Up Anypoint Object Store V2:
• Configuration Steps:

xml

• uk.co.certification.simulator.questionpool.PList@18be5ce0

xml

• Deploying on RTF:
• Benefits:

References:

• MuleSoft Documentation on Object Store V2
• MuleSoft Documentation on Runtime Fabric

Explanation

We need to note few things about the scenario which will help us in reaching the correct solution.

Point 1 : The APIs are all publicly available and are associated with several mobile applications and web applications. This means Apply an IP blacklist policy is not viable option. as blacklisting IPs is limited to partial web traffic. It can't be useful for traffic from mobile application

Point 2 : The organization does NOT want to use any authentication or compliance policies for these APIs. This means we can not apply HTTPS mutual authentication scheme.

Header injection or removal will not help the purpose.

By its nature, JSON is vulnerable to JavaScript injection. When you parse the JSON object, the malicious code inflicts its damages. An inordinate increase in the size and depth of the JSON payload can indicate injection. Applying the JSON threat protection policy can limit the size of your JSON payload and thwart recursive additions to the JSON hierarchy.

Hence correct answer is Apply a JSON threat protection policy to all APIs to detect potential threat vectors

Explanation

The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation

This is based on below definitions API client • An application component • that accesses a service • by invoking an API of that service - by definition of the term API over HTTP API consumer • A business role, which is often assigned to an individual • that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIs API implementation • An application component • that implements the functionality

• Understanding the Operations:
• Parallel For-Each Scope:
• Async Scope:
• Performance Optimization:

References:

• MuleSoft Documentation on Scopes: Mule Scopes
• MuleSoft Best Practices for Performance: Performance Best Practices

A major distinguishing characteristic of an application network, according to MuleSoft, is that it is built for change and self-service. An application network connects applications, data, and devices with APIs, enabling self-service access and reuse of assets. This architecture allows organizations to rapidly adapt to changing business needs, fosters innovation, and reduces time to market by empowering different teams to access and integrate systems independently without waiting for centralized IT.

References:

• Application Networks: The Future of Integration
• MuleSoft's Approach to Building Application Networks

When a batch job instance running on a runtime fabric environment with two cluster replicas encounters an unexpected failure, the following sequence of events occurs:

• Failure Detection: The runtime fabric environment detects the failure of the replica running the batch job.
• Replica Replacement: A new replica is provisioned to replace the failed one.
• Batch Job State Recovery: MuleSoft’s batch processing mechanism ensures that the state of the batch job is periodically saved (checkpointing). This allows the new replica to resume processing from the last saved state.
• Resumption of Processing: The new replica takes over the batch job, continuing from where the previous one left off, thus processing the remaining 99,000 records without starting from scratch or causing duplicate processing.

References:

• MuleSoft Documentation on Batch Processing
• Runtime Fabric Guide

=======================

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

• MuleSoft IT Operating Model Guidelines
• Anypoint Platform Documentation on Decoupling IT Projects
