CoS and DSCP are both methods of marking packets for quality of service (QoS) purposes. QoS is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc. CoS stands for Class of Service and is a 3-bit field in the 802.1Q VLAN tag header. CoS can only be used on Ethernet frames that have a VLAN tag, and it can only be preserved within a single VLAN domain. DSCP stands for Differentiated Services Code Point and is a 6-bit field in the IP header. DSCP can be used on any IP packet, regardless of the underlying layer 2 technology, and it can be preserved throughout the IP packet flow, unless it is modified by intermediate devices. References:

The reason is that the linkup delay timer is a feature that delays bringing downstream VSX links up, following a VSX device reboot or an ISL flap. The linkup delay timer has two phases: initial synchronization phase and link-up delay phase.

The initial synchronization phase is the download phase where the rebooted node learns all the LACP+MAC+ARP+STP database entries from its VSX peer through ISLP. The initial synchronization timer, which is not configurable, is the required time to download the database information from the peer.

The link-up delay phase is the duration for installing the downloaded entries to the ASIC, establishing router adjacencies with core nodes and learning upstream routes. The link-up delay timer default value is 180 seconds. Depending on the network size, ARP/routing tables size, you might be required to set the timer to a higher value (maximum 600 seconds).

When both VSX devices reboot, the link-up delay timer is not used.

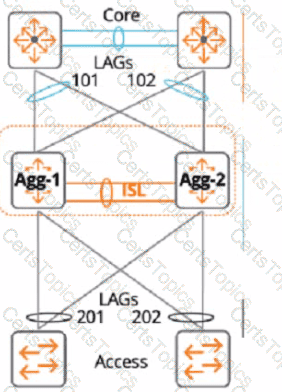

Therefore, by configuring the linkup delay timer to include LAGs 101 and 102, which are part of the same VSX device as LAG 201, you can ensure that both devices have enough time to synchronize their databases and form routing adjacencies before bringing down their downstream links.

Loop protection is a feature that detects and prevents loops in layer 2 networks. Loop protection can be enabled on ports, LAGs, or VLANs. When loop protection is enabled, the switch sends periodic loop protection messages on the interface and expects to receive them back. If a loop protection message is received back on the same interface, it indicates a loop and the switch takes an action to disable the interface or block traffic on it3. The loop-protect re-enable-timer command is used to configure the length of time the switch waits before re-enabling an interface that was disabled due to loop detection. The default value is 0, which means that the interface remains disabled until manually re-enabled3. To automate the process of resuming the port operational state once a loop on a client port is cleared, the loop-protect re-enable-timer command can be used with a non-zero value on the interface range that includes the client ports3. Therefore, answer C is correct.

The reason is that AOS 10.x does not support clustering gateways with different versions in the same cluster profile. A cluster profile defines the configuration settings for a group of gateways that are managed by Aruba Central.

According to the Aruba documentation2, “You can combine 7200 Series and 7000 Series gateways in the same cluster with a maximum size of four devices with reduced AP client capacity on 7000 Series gateways.”
