Comprehensive and Detailed Explanation:

LDAP over SSL (LDAPS)usesport 636to providesecure, encrypted authenticationfor directory services.

Breakdown of Options:

A. SMTP (Simple Mail Transfer Protocol)– Usesport 25, not 636.

B. Syslog– Usesport 514 (UDP),not 636.

C. TFTP (Trivial File Transfer Protocol)– Usesport 69 (UDP),not 636.

D. LDAPS (Lightweight Directory Access Protocol Secure)–✅Correct answer.Usesport 636forsecure directory authentication.

A /23 subnet provides 512 total addresses, of which 510 are usable (subtracting 2 for network and broadcast addresses). This would satisfy the need for 255 additional addresses.

Availability refers to ensuring that data is accessible when needed. If a customer's data is accidentally deleted, it impacts availability, as the data can no longer be accessed.

=================

RADIUS (Remote Authentication Dial-In User Service) is a networking protocol that provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service. RADIUS is often used to manage access to wireless networks, enabling users to authenticate with their company credentials, ensuring secure access to the network.References: CompTIA Network+ study materials. ​

Comprehensive and Detailed Explanation:

If aping to 10.0.100.19 is unreachable, themost likely issueis that users areon the wrong subnetand cannot communicate with the server.

Breakdown of Options:

A. The users are on the wrong subnet.✅Correct answer.If users are ona different subnetwithout proper routing,they won't reach the server.

B. The DHCP server renewed the lease.– Wouldchange the client’sIP, but the server’sstatic IP should remain unchanged.

C. The IP address was not reserved.– DHCP reservations matter fordynamic IPs, but RDP serverstypically have static IPs.

D. The hostname was changed.– Would affectDNS resolution, butpinging the IP directly would still work.

The most likely reason an insurance brokerage would enforce VPN usage is to encrypt sensitive data in transit. VPNs (Virtual Private Networks) create a secure tunnel between the user's device and the corporate network, ensuring that data is encrypted and protected from interception.

Encryption: VPNs encrypt data, preventing unauthorized access and ensuring data privacy during transmission over public or unsecured networks.

Data Protection: Essential for industries handling sensitive information, such as insurance brokerages, to protect customer data and comply with regulatory requirements.

Security: Enhances overall network security by providing secure remote access for employees.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses the role of VPNs in securing data in transit.

Cisco Networking Academy: Provides training on VPN technologies and their importance in data security.

Network+ Certification All-in-One Exam Guide: Explains VPN usage and its benefits in protecting sensitive information.

•A. Isolate smart devices to their own network segment: Network segmentation using VLANs or separate SSIDs ensures that smart devices (like speakers) are not on the same network as guests, preventing unauthorized control.

•E. Change the default credentials: Many IoT devices (e.g., smart speakers) come with default usernames and passwords. If these are not changed, unauthorized users can easily take control.

•Why not the other options?

•B. Configure IPS: IPS (Intrusion Prevention System) detects threats but cannot block specific guest actions on an IoT device.

•C. Install a new AP: A new access point does not solve the unauthorized control issue.

•D. Set up a syslog server: Helps with logging, but does not prevent unauthorized access.

•F. Configure GRE: Generic Routing Encapsulation (GRE) is used for VPN tunneling, which is irrelevant in this case.

To increase overall security after a recent breach, implementing least privilege network access and central policy management are effective strategies.

Least Privilege Network Access: This principle ensures that users and devices are granted only the access necessary to perform their functions, minimizing the potential for unauthorized access or breaches. By limiting permissions, the risk of an attacker gaining access to critical parts of the network is reduced.

Central Policy Management: Centralized management of security policies allows for consistent and streamlined implementation of security measures across the entire network. This helps in quickly responding to security incidents, ensuring compliance with security protocols, and reducing the chances of misconfigurations.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network security principles, including least privilege and policy management.

Cisco Networking Academy: Provides training on implementing security policies and access controls.

Network+ Certification All-in-One Exam Guide: Covers strategies for enhancing network security and managing policies effectively.

When a network interface's indicator lights are not blinking on either the computer or the switch, it suggests a physical layer issue. Here is the detailed reasoning:

Ethernet Properly Connected: The Ethernet cable is correctly connected, eliminating issues related to a loose or faulty cable.

No Indicator Lights: The absence of blinking indicator lights on both the computer and the switch typically points to the port being administratively shut down.

Switch Port Shut Down: In networking, a switch port can be administratively shut down, disabling it from passing any traffic. This state is configured by network administrators and can be verified and changed using the command-line interface (CLI) of the switch.

Command to Check and Enable Port:

bash

Copy code

Switch> enable

Switch# configure terminal

Switch(config)# interface [interface id]

Switch(config-if)# no shutdown

The command no shutdown re-enables the interface if it was previously disabled. This will restore the link and the indicator lights should start blinking, showing activity.

Basic Configuration Commands PDF, sections on interface configuration (e.g., shutdown, no shutdown)​​.

802.1x is a network access control protocol that provides an authentication mechanism to devices trying to connect to a LAN or WLAN. This ensures that only authorized devices can access the network, making it ideal for mitigating the risk of unknown devices connecting to the network, especially in accessible areas.

802.1x Authentication: Requires devices to authenticate using credentials (e.g., username and password, certificates) before gaining network access.

Access Control: Prevents unauthorized devices from connecting to the network, enhancing security in public or semi-public areas.

Implementation: Typically used in conjunction with a RADIUS server to manage authentication requests.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers 802.1x and its role in network security.

Cisco Networking Academy: Provides training on implementing 802.1x for secure network access control.

Network+ Certification All-in-One Exam Guide: Explains the benefits and configuration of 802.1x authentication in securing network access.

Network segmentation involves dividing a network into smaller segments or subnets. This is particularly important when integrating OT (Operational Technology) devices to ensure that these devices are isolated from other parts of the network. Segmentation helps protect the OT devices from potential threats and minimizes the impact of any security incidents. It also helps manage traffic and improves overall network performance.References: CompTIA Network+ study materials.

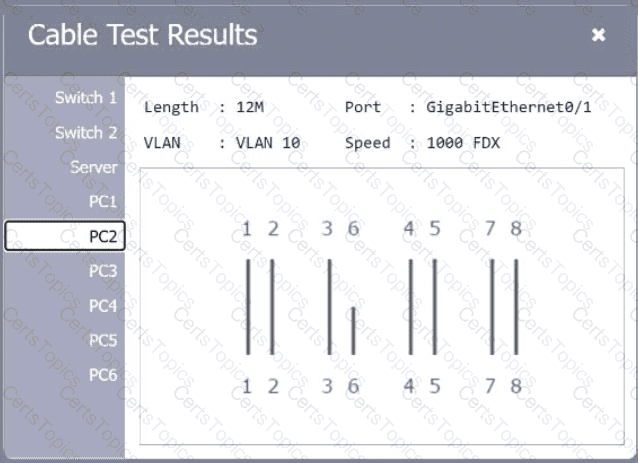

Cross talk can often be caused by improper termination of cables. The first step in troubleshooting should be to inspect the connectors for any wires that might be touching or exposed. Ensuring that all wires are correctly seated and that no conductors are exposed can help reduce or eliminate cross talk. This step should be taken before attempting to re-terminate the connections or check for other sources of interference.References: CompTIA Network+ study materials.

Comprehensive and Detailed Explanation:

BNC connectorsare commonly used forcoaxial cables, including those connecting toexternal antennasinWi-Fi, radio, and surveillance systems.

Breakdown of Options:

A. BNC–Correct answer.Used forcoaxial cablesinwireless and antenna connections.

B. ST– Used forfiber optic cables,not antennas.

C. LC– Afiber optic connector,not for antennas.

D. MPO– Used formulti-fiber optic cables,not RF antennas.

A TXT record can be used to store SPF (Sender Policy Framework) and DKIM (DomainKeys Identified Mail) information, which help verify that an email has been sent from a trusted source.

=================

The loopback address 127.0.0.1 is used to test the TCP/IP stack of the local machine. Pinging this address confirms whether the local system's networking stack is functioning correctly.

=================

Comprehensive and Detailed Explanation:

VXLAN (Virtual Extensible LAN)encapsulates Ethernet frames inside UDP packets, increasing packet size. This can lead tofragmentation and performance degradationunlessJumbo Framesare enabled.

Breakdown of Options:

A. 802.1Q tagging– VLAN tagging enables segmentation but doesnot address fragmentation issues.

B. Spanning tree– STP prevents loops but doesnot improve performancefor VXLAN traffic.

C. Link aggregation– LACP combines links forhigher bandwidthbut doesnot prevent fragmentation.

D. Jumbo frames–Correct answer.EnablingJumbo Framesallows larger packet sizes,reducing fragmentationandimproving VXLAN performance.

In a data center that uses hot aisle/cold aisle ventilation, equipment is typically installed so that cool air enters from the cold aisle (front) and hot air is exhausted to the hot aisle (rear). This configuration maximizes cooling efficiency.

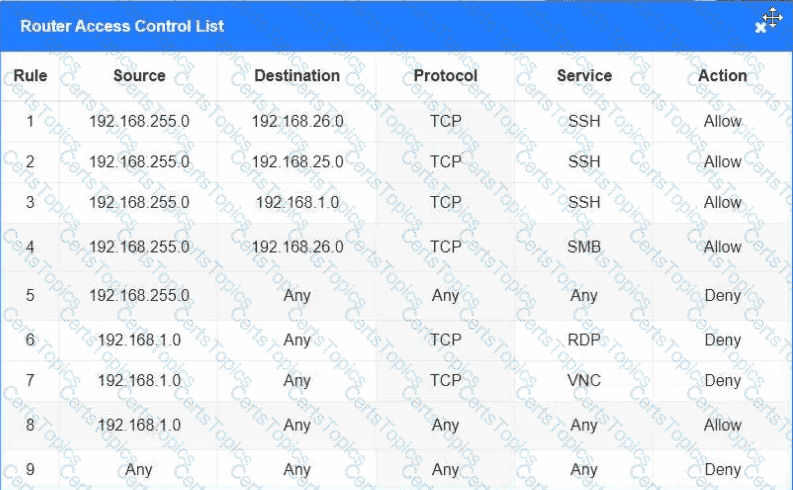

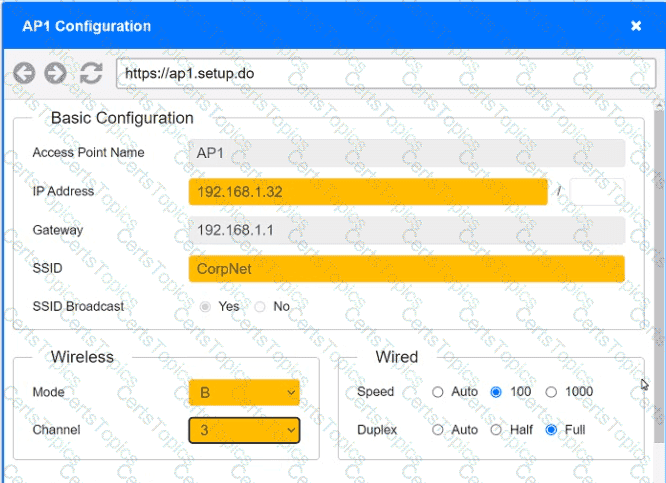

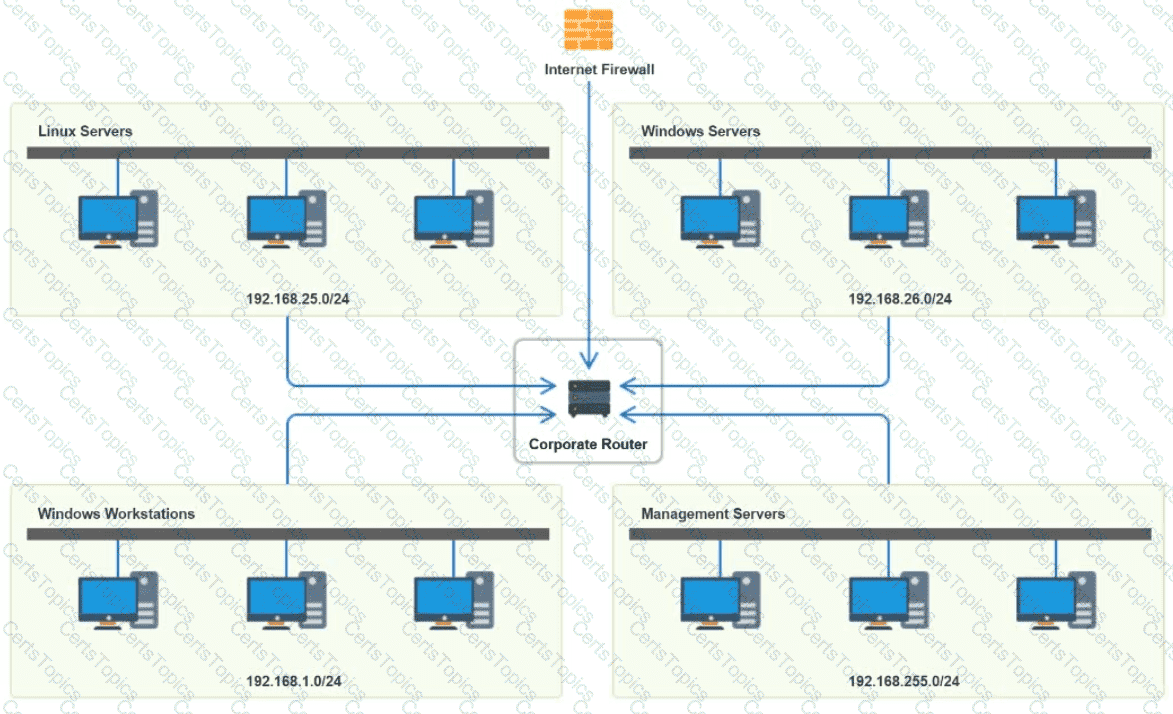

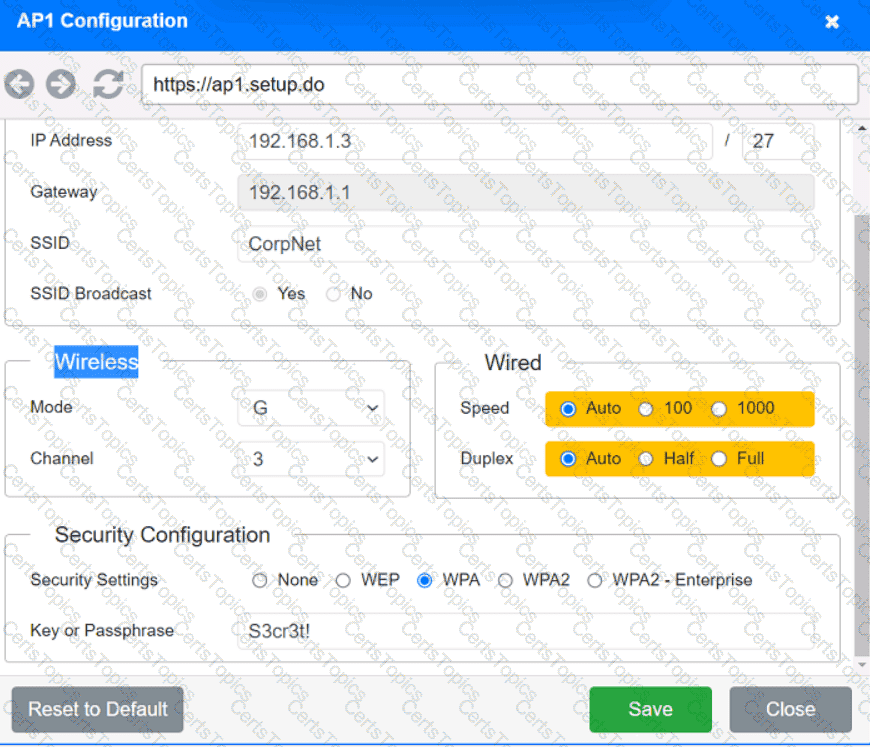

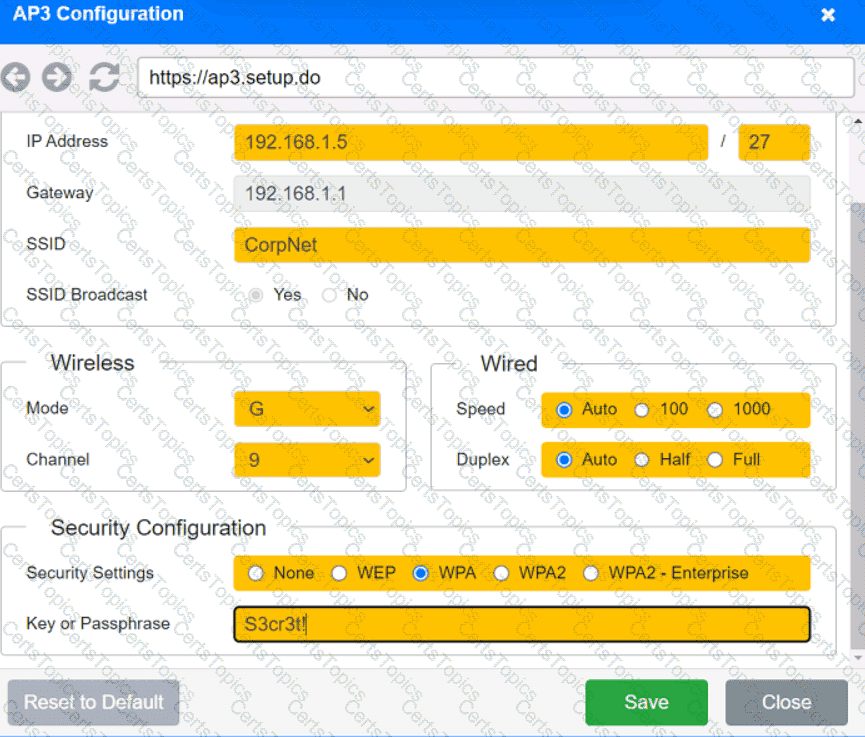

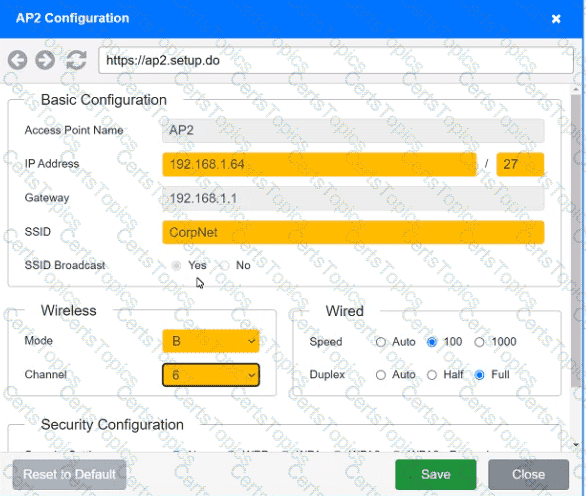

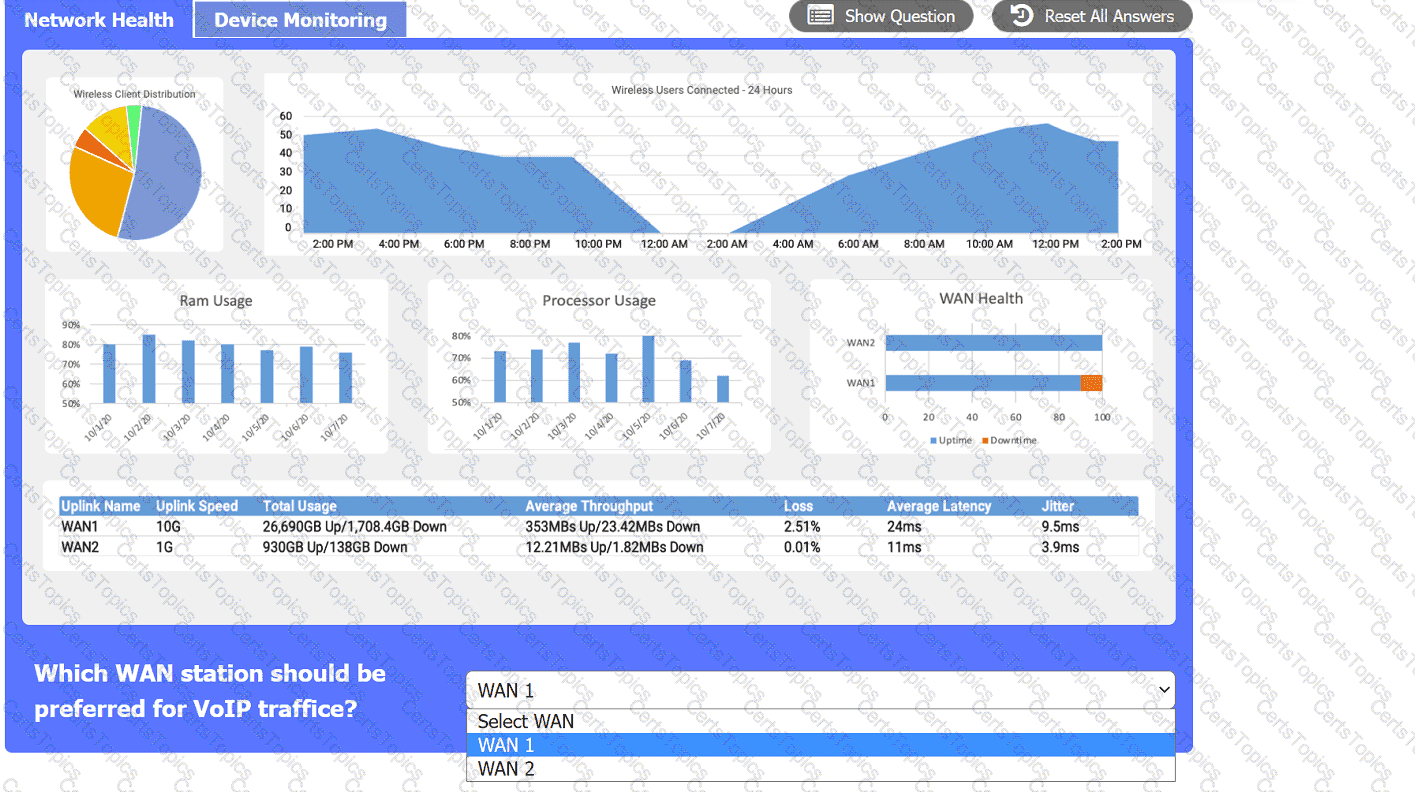

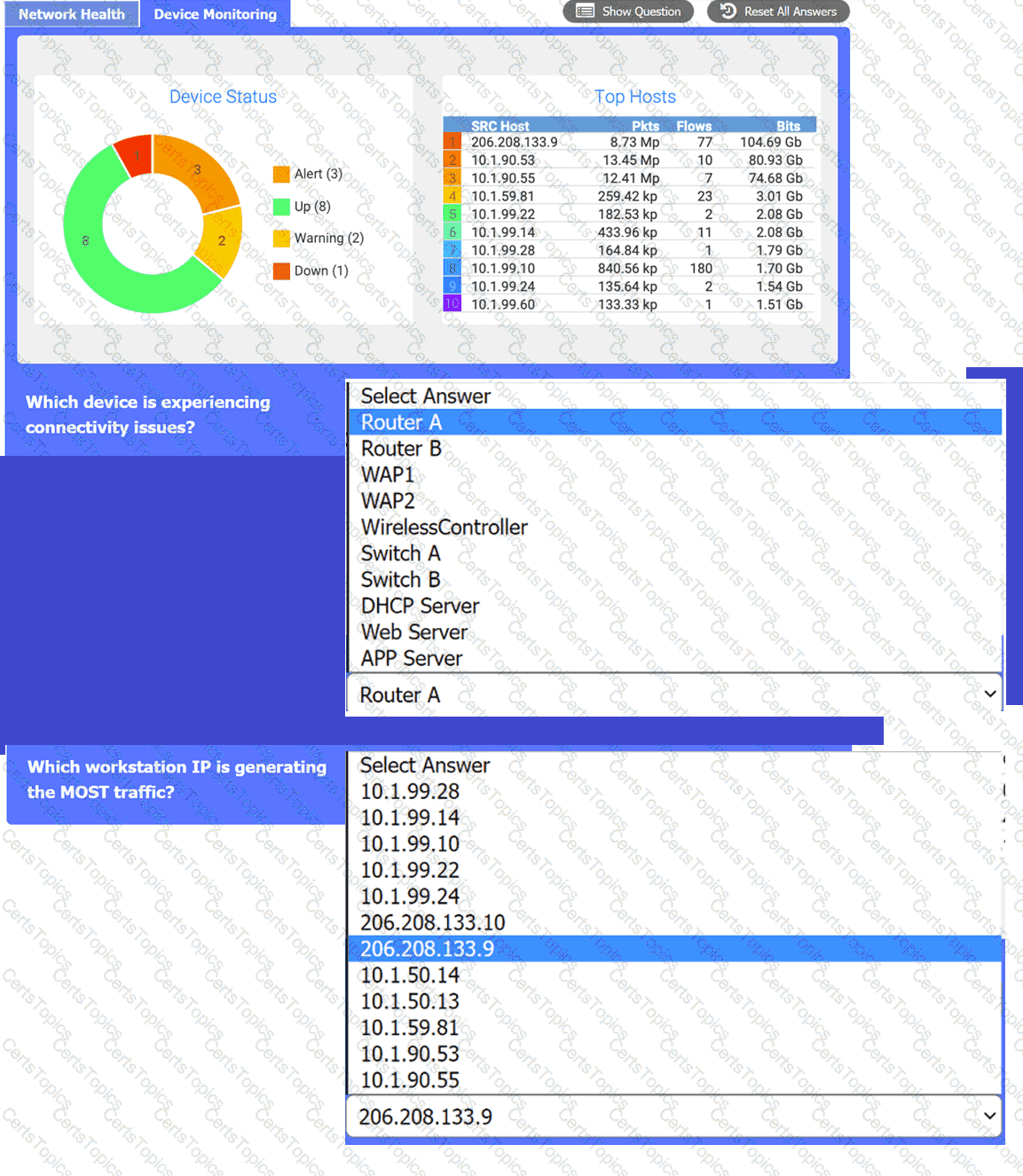

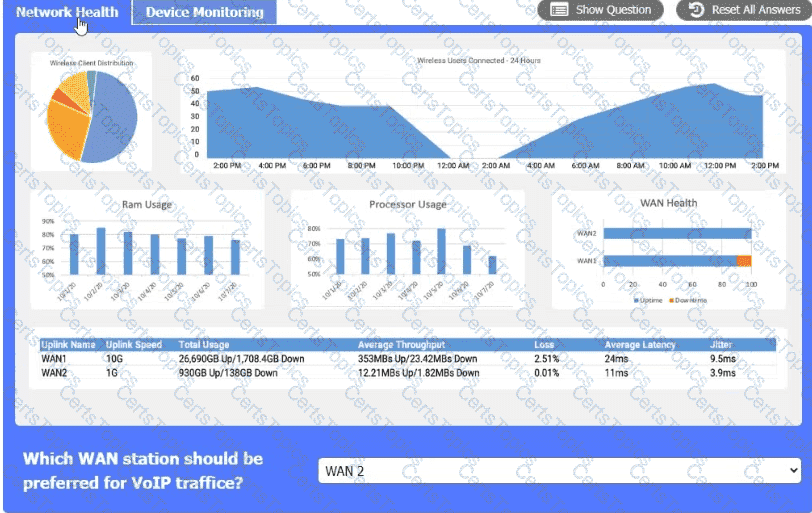

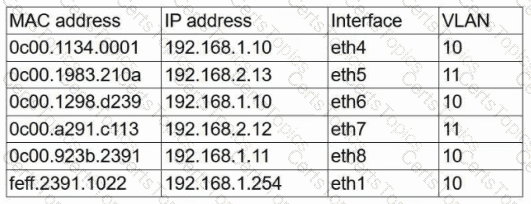

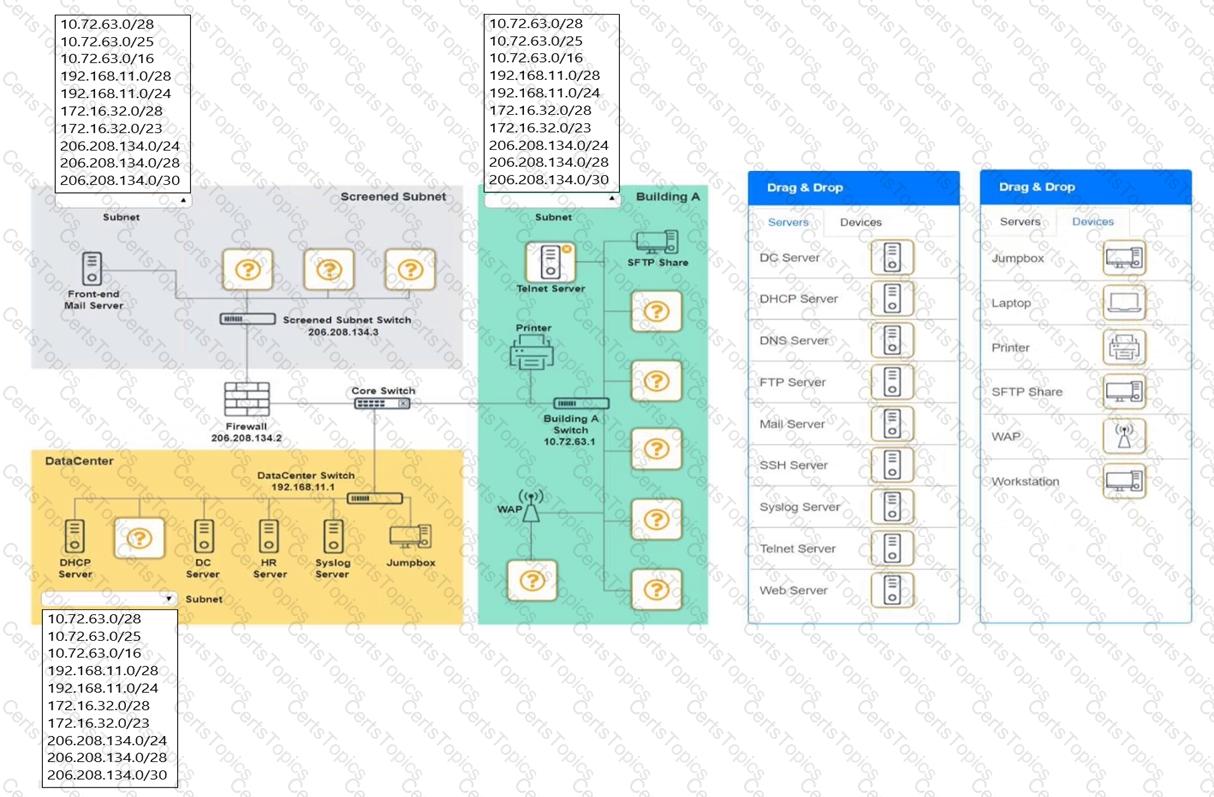

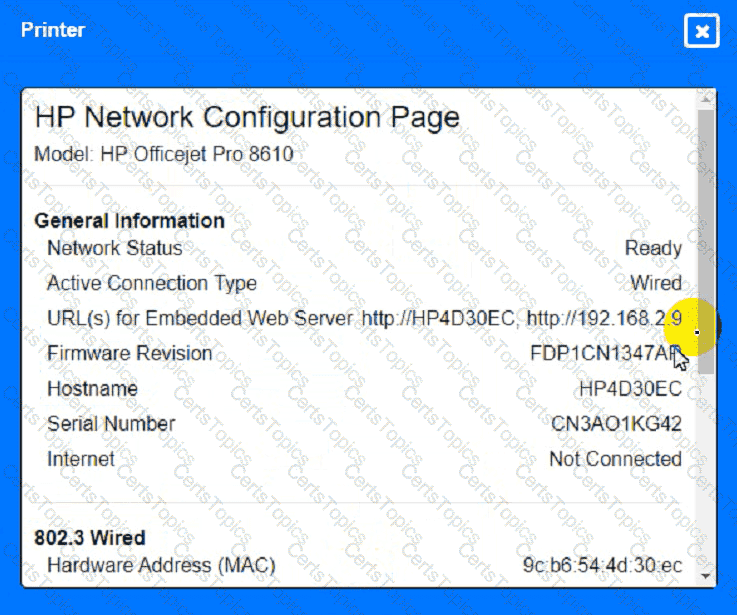

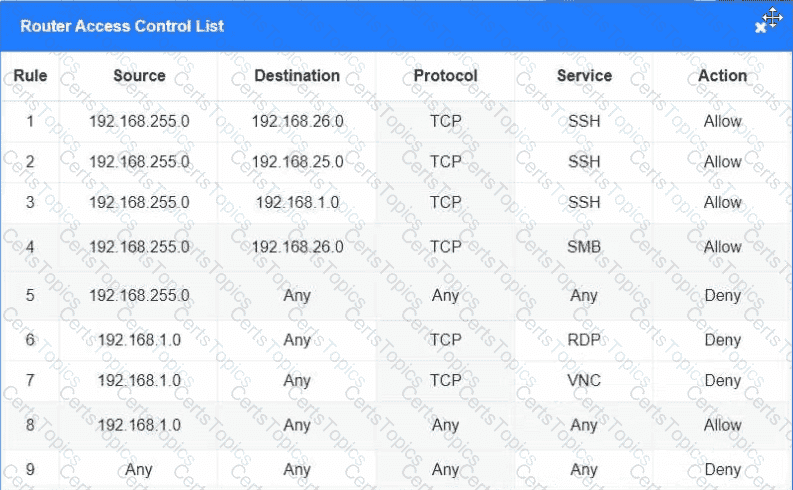

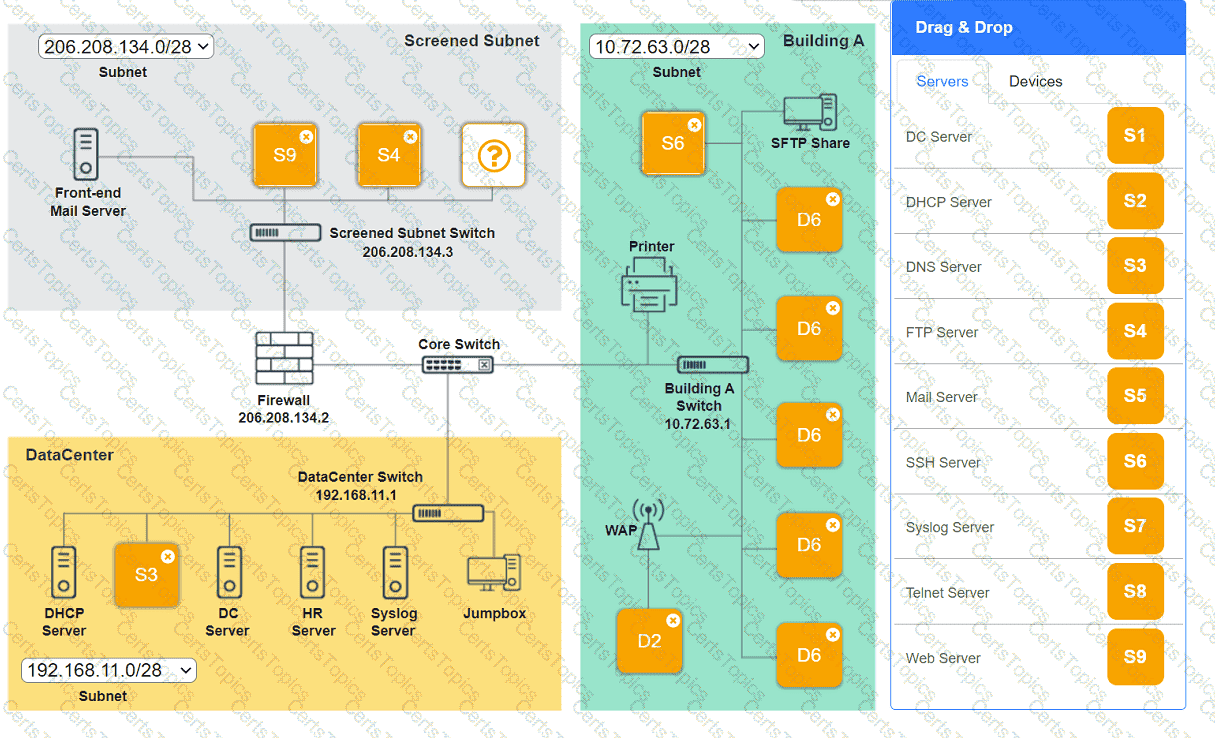

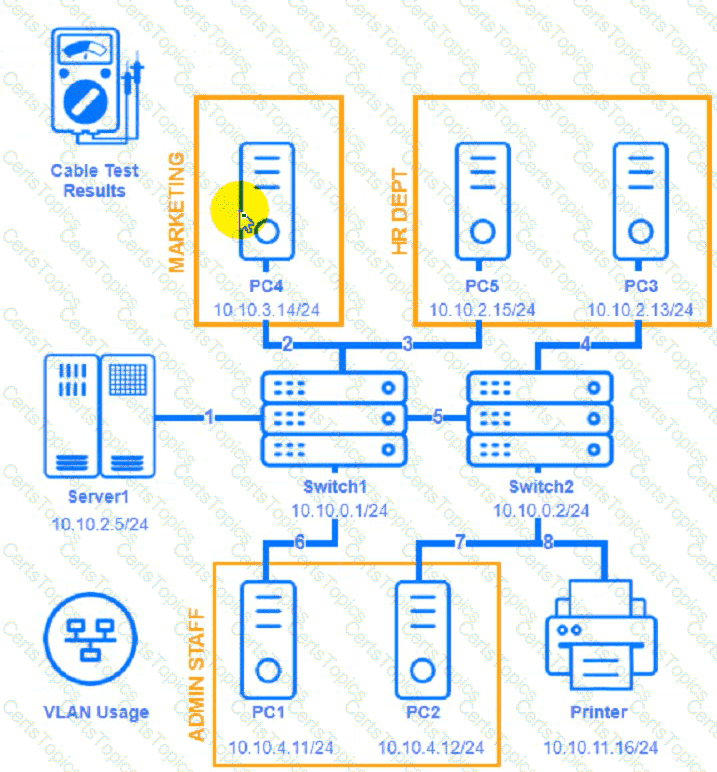

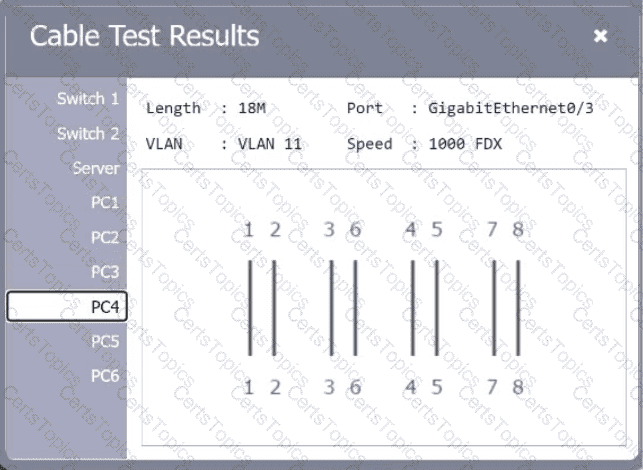

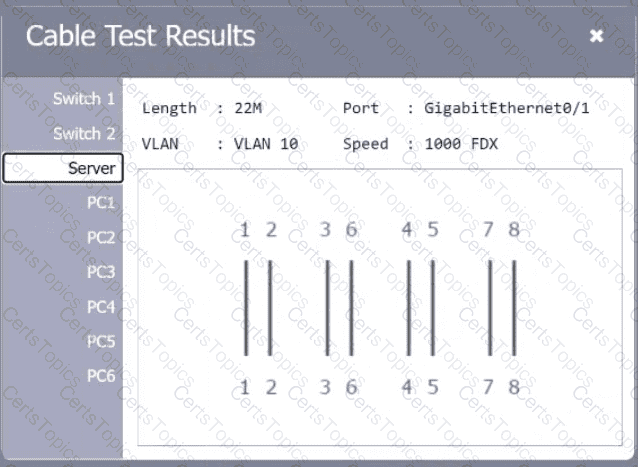

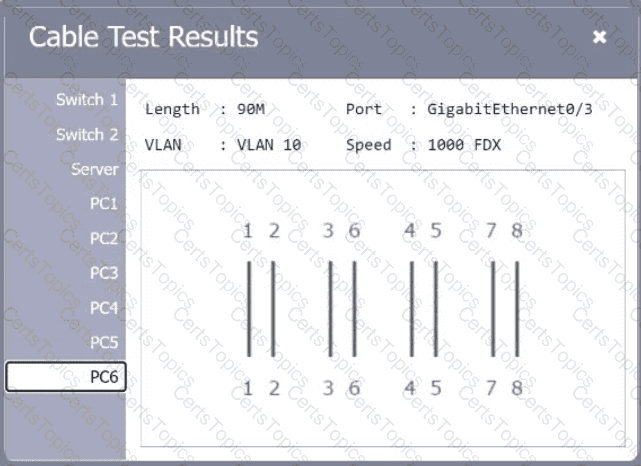

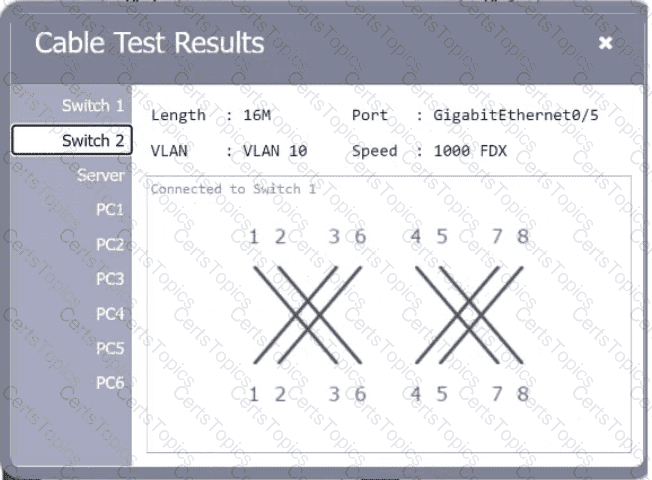

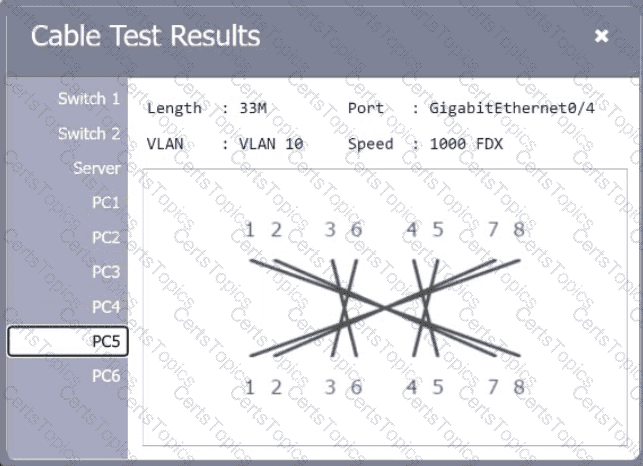

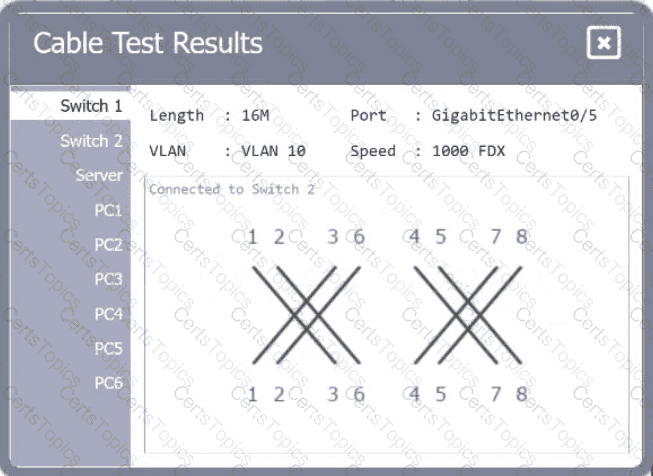

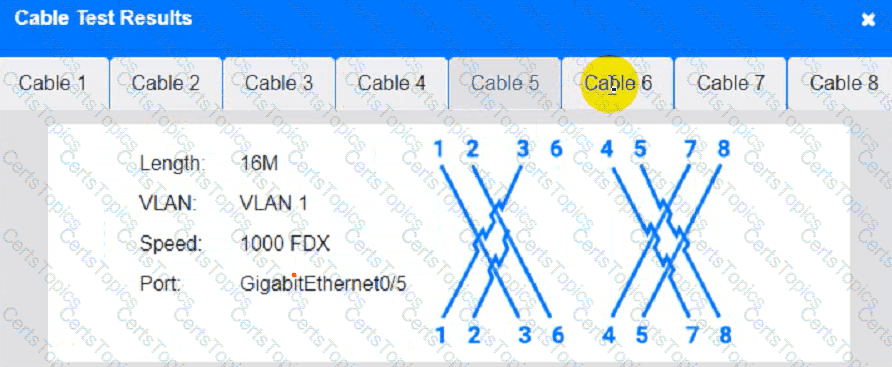

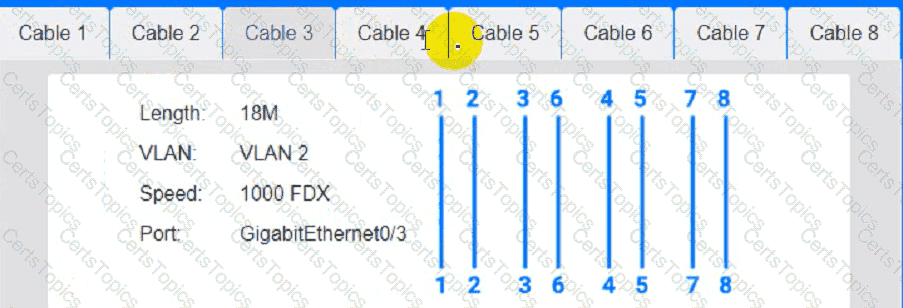

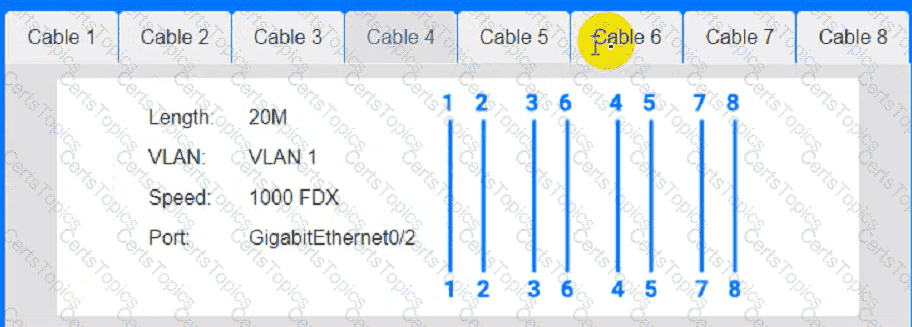

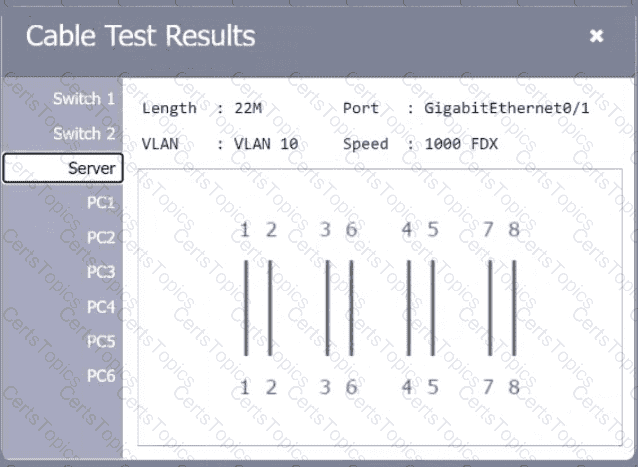

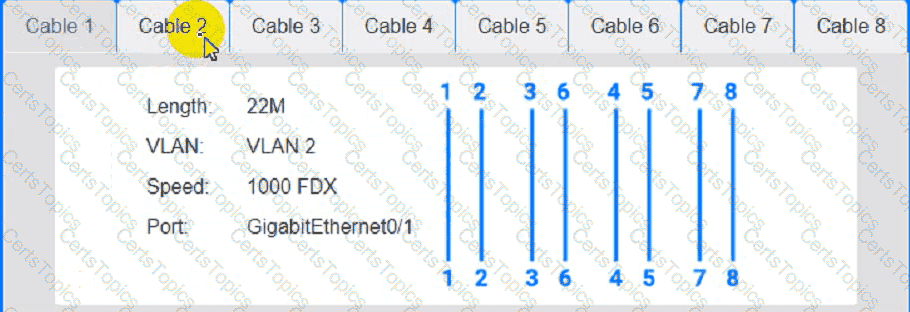

An incorrect pinout on the patch cable could prevent network connectivity due to mismatched wiring. Even if the cables are the correct length and type, a pinout issue can cause continuity problems and prevent data transmission. Proper crimping with the correct pinout is essential for network cables to function. (Reference: CompTIA Network+ Study Guide, Chapter on Network Media and Topologies)

Console Access:

Purpose: Console access to a switch allows administrators to configure and manage the device directly. This is typically done using a terminal emulator program on a computer.

RJ45 Connector:

Common Use: The RJ45 connector is widely used for Ethernet cables and also for console connections to network devices like switches and routers.

Console Cables: Console cables often have an RJ45 connector on one end (for the switch) and a DB9 serial connector on the other end (for the computer).

Comparison with Other Connectors:

ST (Straight Tip): A fiber optic connector used for networking, not for console access.

BNC (Bayonet Neill-Concelman): A connector used for coaxial cable, typically in older network setups and not for console access.

SFP (Small Form-factor Pluggable): A modular transceiver used for network interfaces, not for console access.

Practical Application:

Connection Process: Connect the RJ45 end of the console cable to the console port of the switch. Connect the DB9 end (or USB via adapter) to the computer. Use a terminal emulator (e.g., PuTTY, Tera Term) to access the switch’s command-line interface (CLI).

Direct Connect refers to a dedicated network connection between an on-premises network and a cloud service provider (such as AWS Direct Connect). This link bypasses the public internet, providing a more reliable and higher-bandwidth connection. It may not inherently include encryption because it relies on the security measures of the dedicated physical connection itself. In contrast, other options like VPN typically involve encryption as they traverse the public internet.

Comprehensive and Detailed Explanation:

Since the switch supportsonly 10Gbps per port, achieving40Gbps throughputrequireslink aggregation(LACP), which combines multiple10Gbpslinks into onelogical interfacefor higher bandwidth.

Breakdown of Options:

A. 802.1Q tagging– VLAN tagging helps segment traffic but doesnot increase throughput.

B. Jumbo frames– Jumbo framesreduce overhead but do not increase bandwidth.

C. Half duplex– Half duplexrestricts communication,reducingperformance instead of improving it.

D. Link aggregation–Correct answer.LACP combines multiple10Gbpslinks to provide a40Gbpsconnection.

Comprehensive and Detailed Explanation:

Wi-Fi 6Eis thebest choiceforhigh-density environments, as it provideshigher speeds, more capacity, and lower latency.

Troubleshooting Methodology:

Confirming the Root Cause: After testing and confirming the theory, the next logical step is to address the issue by implementing a solution.

Implementation of the Solution:

Resolve the Issue: Implement the identified solution to rectify the problem. This step involves making necessary changes to the network configuration, replacing faulty hardware, or applying software patches.

Documentation: Document the solution and the steps taken to resolve the issue to provide a reference for future troubleshooting.

Comparison with Other Steps:

Determine Resolution Steps: This is part of the implementation process where specific actions are outlined, but the actual next step after testing is to implement those steps.

Duplicate the Problem in a Lab: This step is typically done earlier in the troubleshooting process to understand the problem, not after confirming the root cause.

Present the Theory for Approval: In some scenarios, presenting the theory might be necessary for major changes, but generally, once the root cause is confirmed, the solution should be implemented.

Final Verification:

After implementing the solution, it is important to verify that the issue is resolved and that normal operations are restored. This may involve monitoring the network and testing to ensure no further issues arise.

The tracert (Traceroute) command is used to determine the path packets take from the source to the destination. It helps in identifying routing issues by showing each hop the packets pass through, along with the time taken for each hop. This command can pinpoint where the connection is failing or experiencing delays, making it an essential tool for troubleshooting routing issues.References: CompTIA Network+ study materials and common network troubleshooting commands. ​

802.1X is a port-based network access control (PNAC) protocol that provides an authentication mechanism to devices wishing to connect to a LAN or WLAN. It is widely used for secure network access, ensuring that only authenticated devices can access the network, whether they are connecting via wired or wireless means. 802.1X works in conjunction with an authentication server, such as RADIUS, to validate the credentials of devices trying to connect.References: CompTIA Network+ study materials.

IPsec (Internet Protocol Security) is the most secure way to provide site-to-site connectivity. It provides robust security services, such as data integrity, authentication, and encryption, ensuring that data sent across the network is protected from interception and tampering. Unlike other options, IPsec operates at the network layer and can secure all traffic that crosses the IP network, making it the most comprehensive and secure choice for site-to-site VPNs.References: CompTIA Network+ study materials and NIST Special Publication 800-77.

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

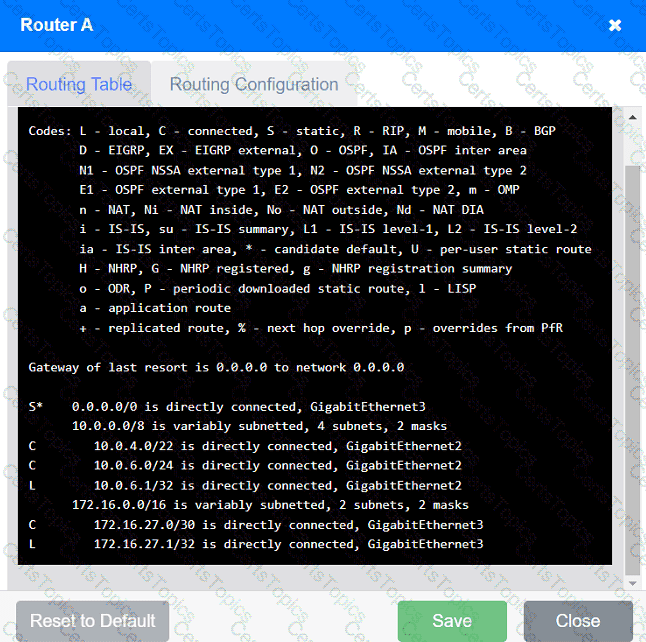

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

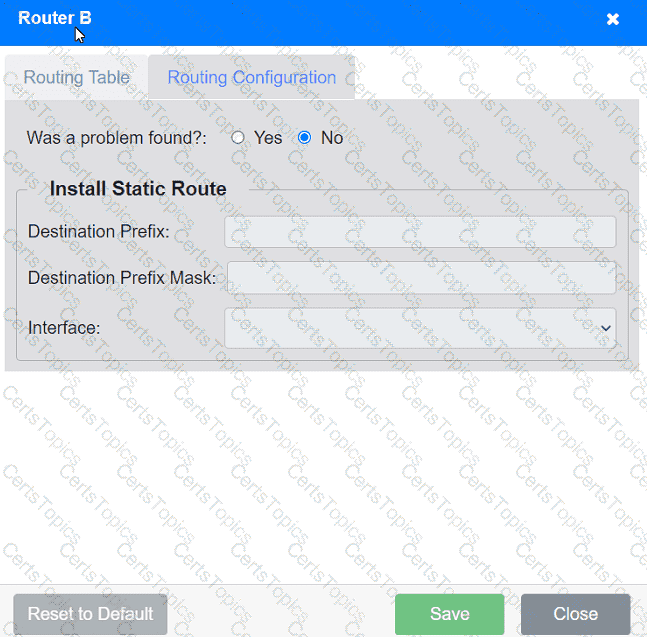

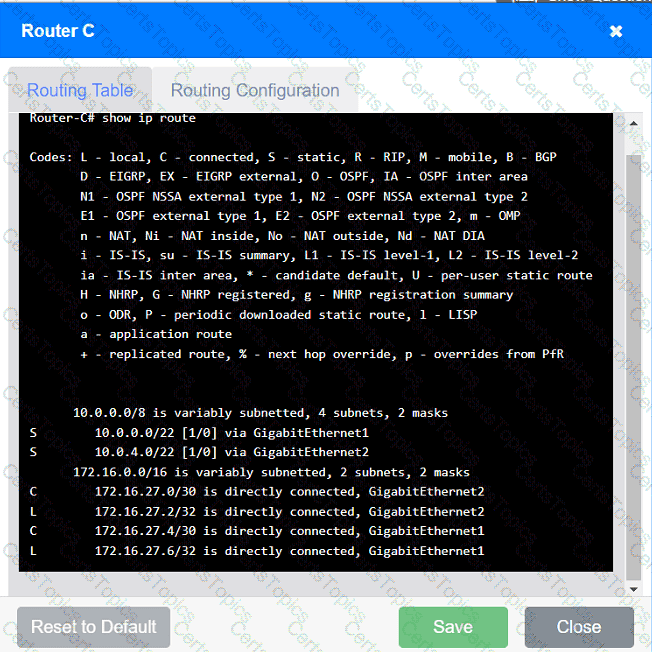

Routing Table:

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

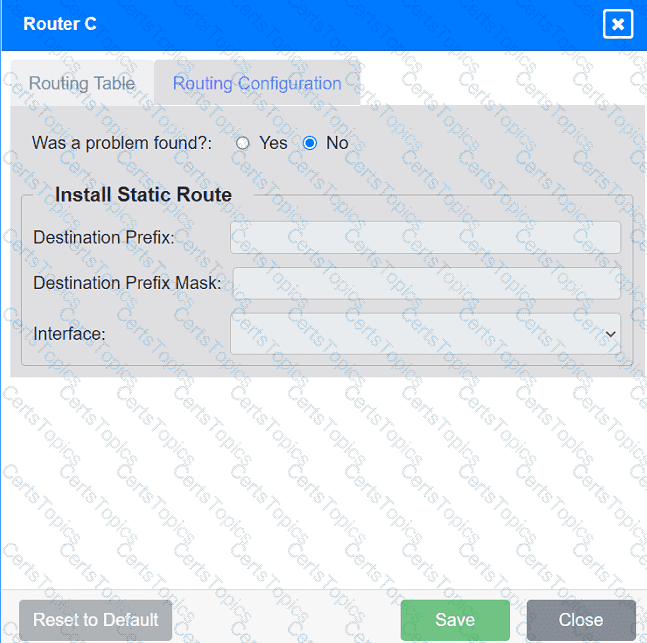

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):

Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

Understanding Subnetting:

Original Network: 192.168.1.0/24 has a subnet mask of 255.255.255.0, which allows for 256 IP addresses (including network and broadcast addresses).

Objective: Divide this network into two equal subnets.

Calculating Subnet Mask:

New Subnet Mask: To divide 192.168.1.0/24 into two equal halves, we need to borrow one bit from the host portion of the address, changing the subnet mask to 255.255.255.128 (/25).

Subnet Breakdown:

First Subnet: 192.168.1.0/25 (192.168.1.0 - 192.168.1.127)

Second Subnet: 192.168.1.128/25 (192.168.1.128 - 192.168.1.255)

Verification:

Each subnet now has 128 IP addresses (126 usable IP addresses, excluding the network and broadcast addresses).

Comparison with Other Options:

255.255.0.0 (/16): Provides a much larger network, not dividing the original /24 network.

255.255.254.0 (/23): Also creates a larger subnet, encompassing more than the original /24 network.

255.255.255.0 (/24): Maintains the original subnet size, not dividing it.

Comprehensive and Detailed Explanation:

Acontent filterblocks access to specificwebsitesbased oncategory, URL, or keywords. This is the best solution torestrict gambling websites.

Breakdown of Options:

A. ACLs– Controlnetwork access,not specific web content.

B. Content filter–✅Correct answer.Used toblock access to unwanted websites.

C. Port security– Preventsunauthorized device connections,not web traffic filtering.

D. Screened subnet– ADMZisolates public-facing servers,not user restrictions.

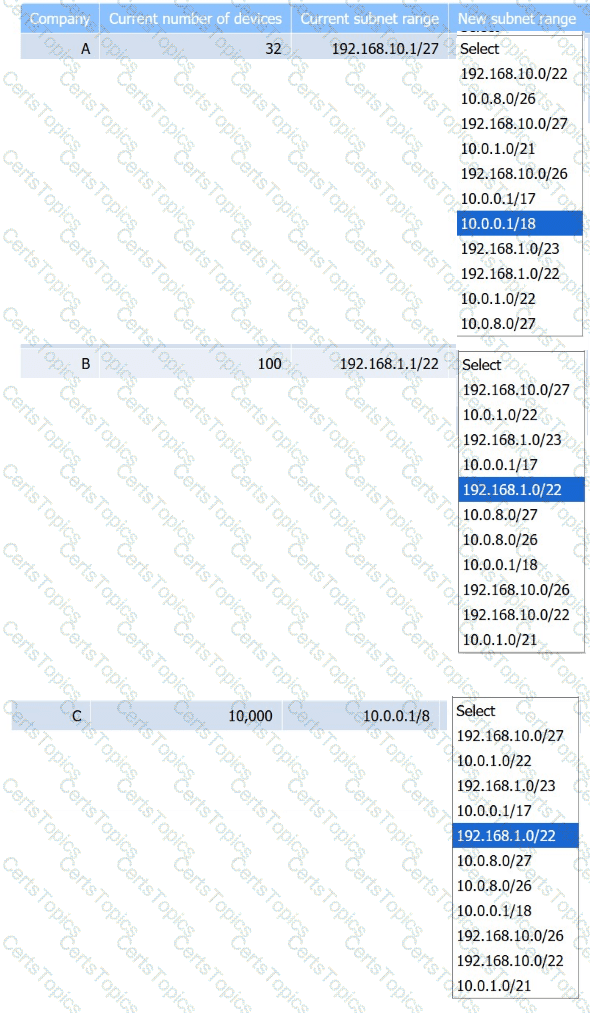

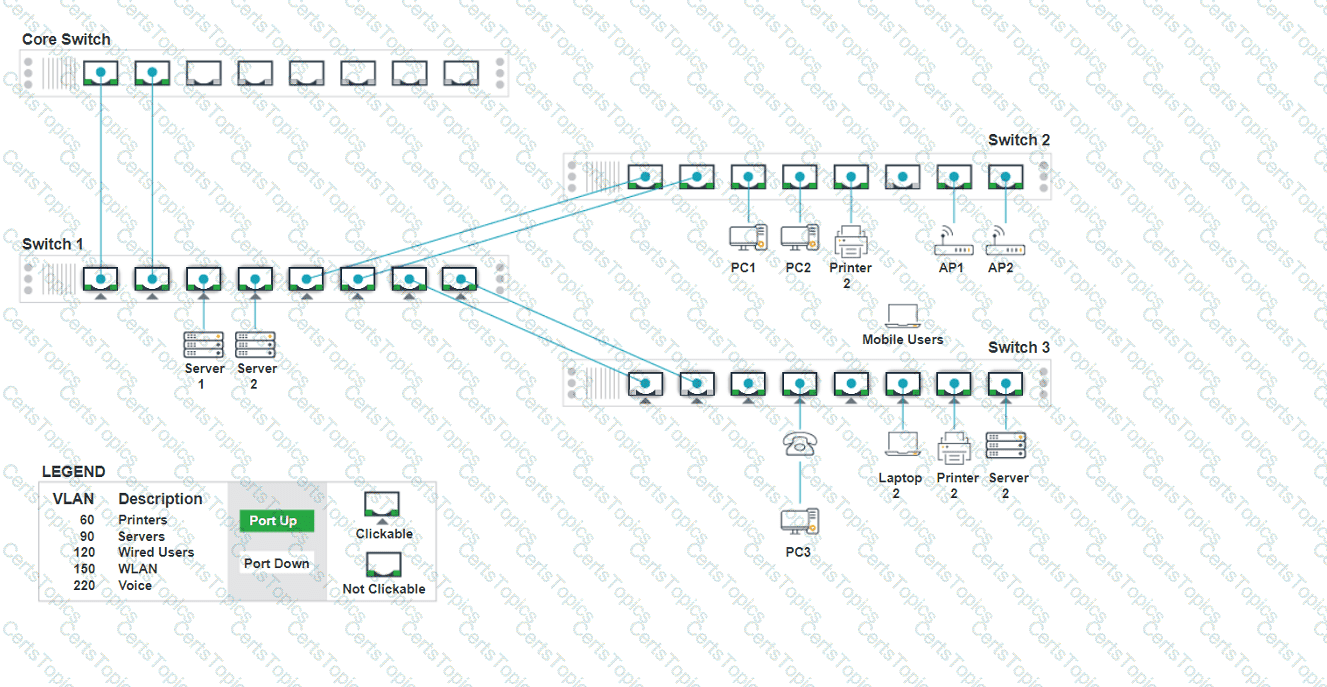

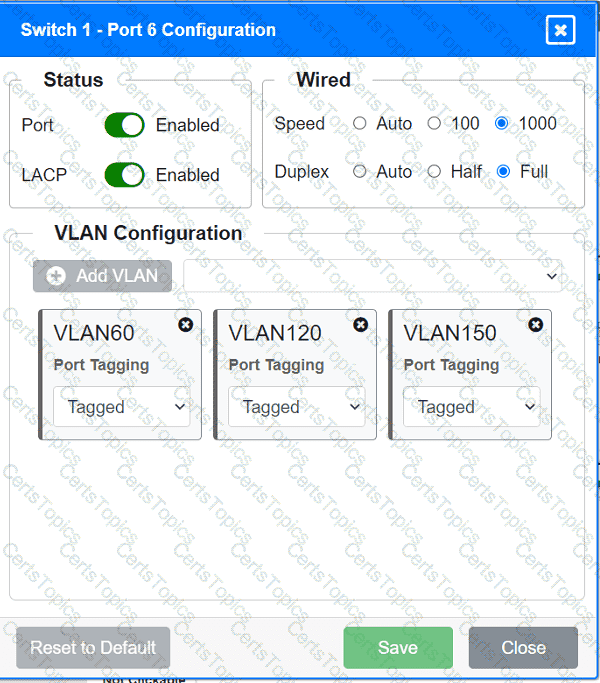

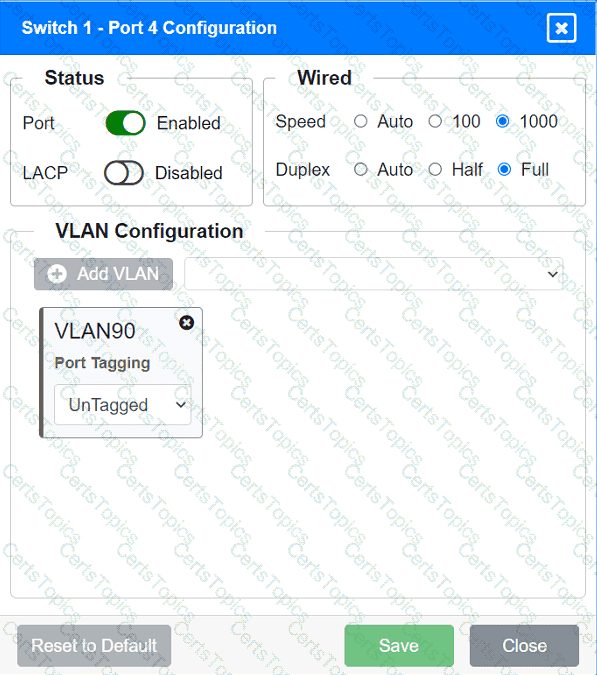

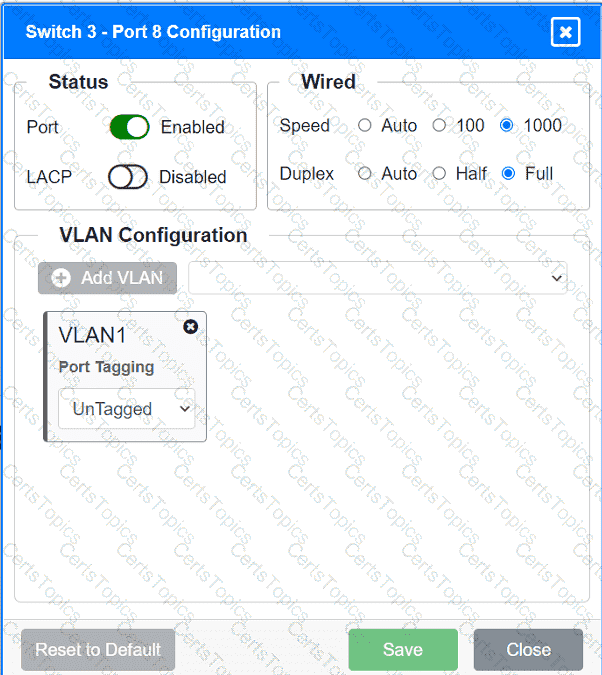

To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:

Identify the correct VLANs for each device and port.

Enable necessary ports and disable unused ports.

Configure fault-tolerant connections between the switches.

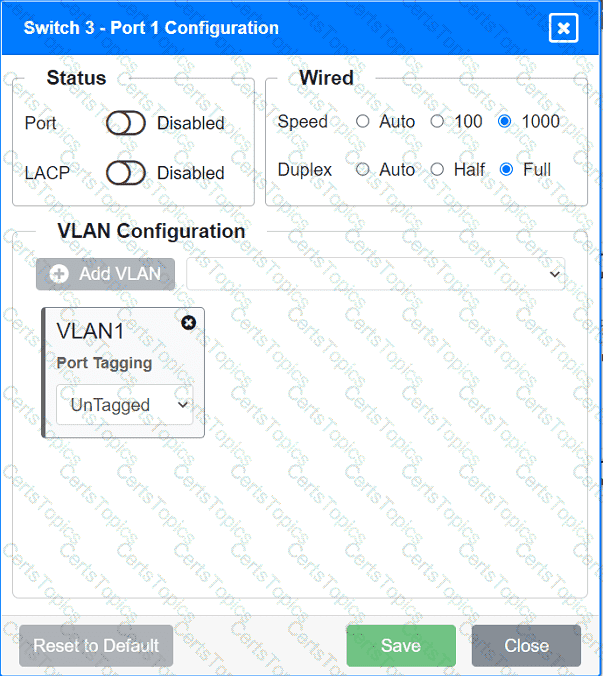

Port 1 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 2 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 3 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

Port 4 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

Port 5 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

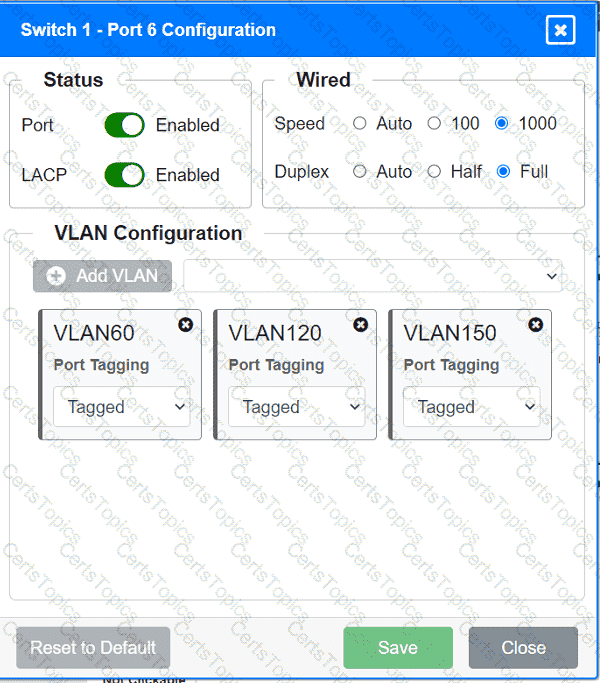

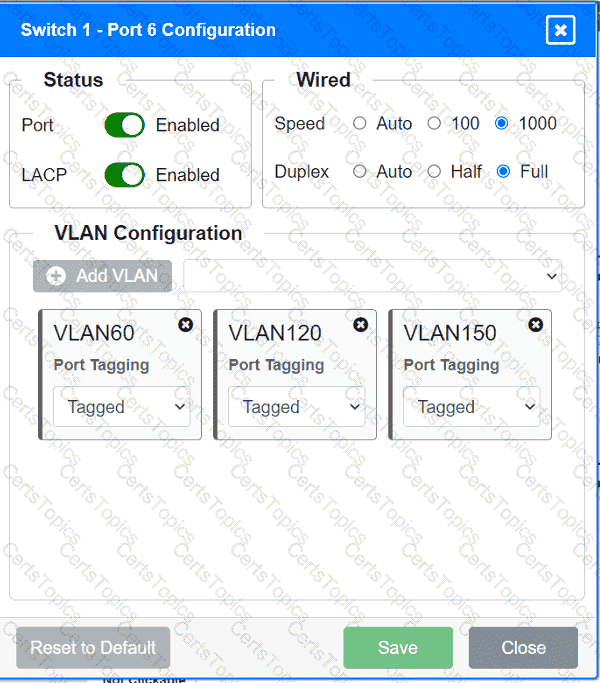

Port 6 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

Port 7 Configuration (Voice and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

Port 8 Configuration (Voice, Printers, and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

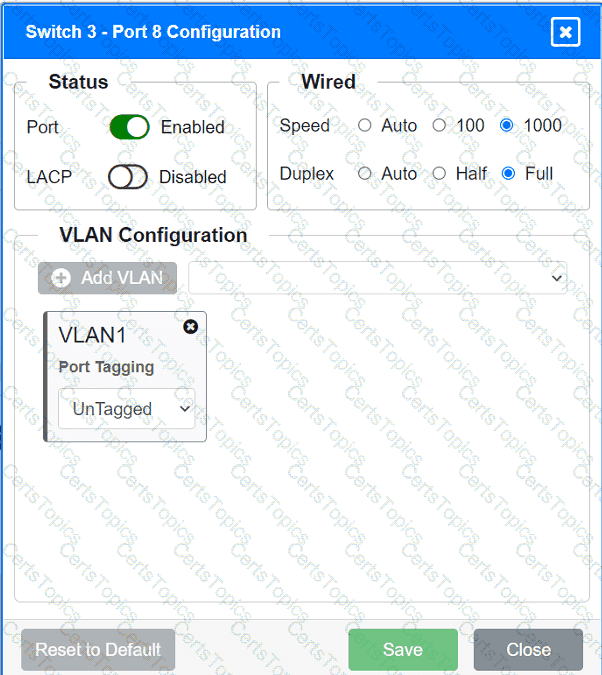

Port 1 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 2 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 3 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 4 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 5 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 6 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 7 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.

Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.

Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.

Unused ports on Switch 3 are disabled.

Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.

Core Switch Ports should be configured as needed for uplinks to Switch 1.

Ensure LACP is enabled for redundancy on trunk ports between switches.

By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.

Bottlenecking occurs when a device in the network (such as an IPS) cannot process traffic efficiently, resulting in a dramatic drop in throughput. The significant difference between the firewall's speed (48.8 Mbps down) and the end-user devices’ speeds (4.8 - 5.2 Mbps down) indicates a bottleneck caused by the IPS.

•Why not the other options?

•Packet loss (A) – Would typically cause connection timeouts, not just slow speeds.

•Channel overlap (C) – Affects only wireless networks, but the wired desktop is also experiencing slow speeds.

•Network congestion (D) – Would show fluctuations in both upload and download speeds, but upload speeds remain unaffected.

The three-tier hierarchical model in network design consists of three layers: access, distribution, and core. The access layer is where devices like PCs and printers connect to the network. The distribution layer aggregates the data received from the access layer switches before it is transmitted to the core layer, which is responsible for high-speed data transfer and routing. This approach improves scalability and performance in larger networks. References: CompTIA Network+ Exam Objectives and official study guides.

Comprehensive and Detailed Explanation:

Anon-path attack(formerly known as aman-in-the-middle (MITM) attack) involves intercepting and potentially altering communicationsbetween two parties without their knowledge. This can be done via techniques likeARP poisoning, rogue access points, or SSL stripping.

Breakdown of Options:

A. Self-signed certificate– These areuntrusted SSL certificatesbut donot intercept traffic.

B. VLAN hopping– VLAN hoppingexploits VLAN misconfigurationsbut doesnot necessarily intercept communications.

C. On-path attack–Correct answer.Thisintercepts and modifies trafficbetween two endpoints.

D. Phishing– Phishing tricks users intorevealing credentialsrather than intercepting network traffic.

Comprehensive and Detailed Explanation:

ASecurity Information and Event Management (SIEM)systemcollects, correlates, and analyzeslogs from multiple sources in real-time, providingenhanced visibility across multivendor environments.

Breakdown of Options:

A. SNMP– SNMP is used for networkdevice monitoring, but itlacks real-time correlationacross multiple vendors.

B. SIEM–Correct answer.SIEMaggregates, analyzes, and correlates logsfrom multiple sources, providingreal-time visibility.

C. Nmap– Nmap is anetwork scanning toolused for mapping hosts and detecting open ports butdoes not provide log correlation.

D. Syslog– Syslog collects logs but doesnot correlate or analyzethem in real-time.

A toner probe, often referred to as a toner and probe kit, is the easiest and most effective tool for identifying individual cables in a bundle, especially in situations where the patch panel is not labeled. The toner sends an audible tone through the cable, and the probe detects the tone at the other end, allowing the technician to quickly identify the correct cable.

Functionality: The toner generates a tone that travels along the cable. When the probe is placed near the correct cable, it detects the tone and emits a sound.

Ease of Use: Toner probes are straightforward to use, even in environments with many cables, making them ideal for identifying cables in unlabeled patch panels.

Efficiency: This method is much faster and more reliable than manual tracing, especially in complex setups.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Details tools used for cable identification and troubleshooting.

Cisco Networking Academy: Provides training on using toner probes and other cable testing tools.

Network+ Certification All-in-One Exam Guide: Explains the use of different tools for network cable identification and management.

A split-tunnel VPN allows certain traffic (e.g., cloud-based services) to bypass the VPN and go directly to the Internet. This reduces the amount of traffic that needs to traverse the company's VPN and Internet connection, conserving bandwidth and reducing costs. It also means that not all traffic is subject to the same level of inspection or filtering, which can improve performance for cloud-based services.References: CompTIA Network+ study materials.

Troubleshooting Methodology:

Troubleshooting involves a systematic approach to diagnosing and resolving issues. It typically includes steps such as identifying symptoms, gathering information, formulating and testing theories, and implementing solutions.

Confirming a Theory:

Duplicate the Problem: To confirm a theory, the technician should reproduce the problem in a controlled environment. This helps verify that the identified cause actually leads to the observed issue.

Verification: By duplicating the problem, the technician can observe the issue firsthand, validate the hypothesis, and rule out other potential causes.

Comparison with Other Steps:

Identify the Symptoms: Initial step to understand what the problem is, not specifically for confirming a theory.

Gather Information: Involves collecting data and details about the issue, usually done before formulating a theory.

Determine Any Changes: Involves checking for recent changes that could have caused the issue, a part of the information-gathering phase.

Implementation:

Use similar equipment or software in a test environment to recreate the issue.

Observe the results to see if they match the original problem, thereby confirming the theory.

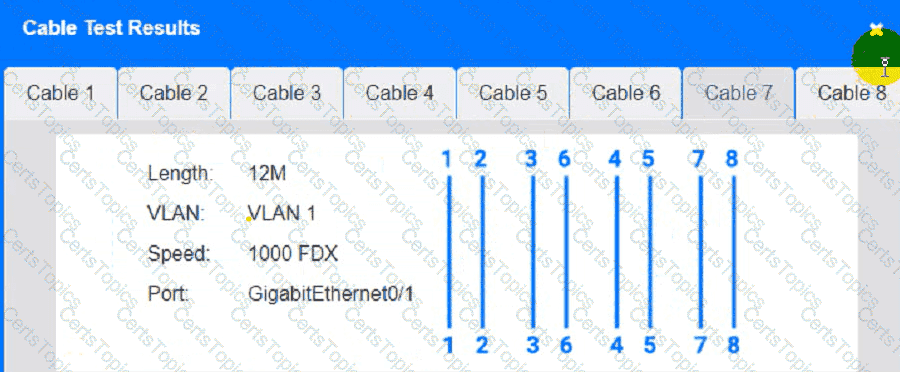

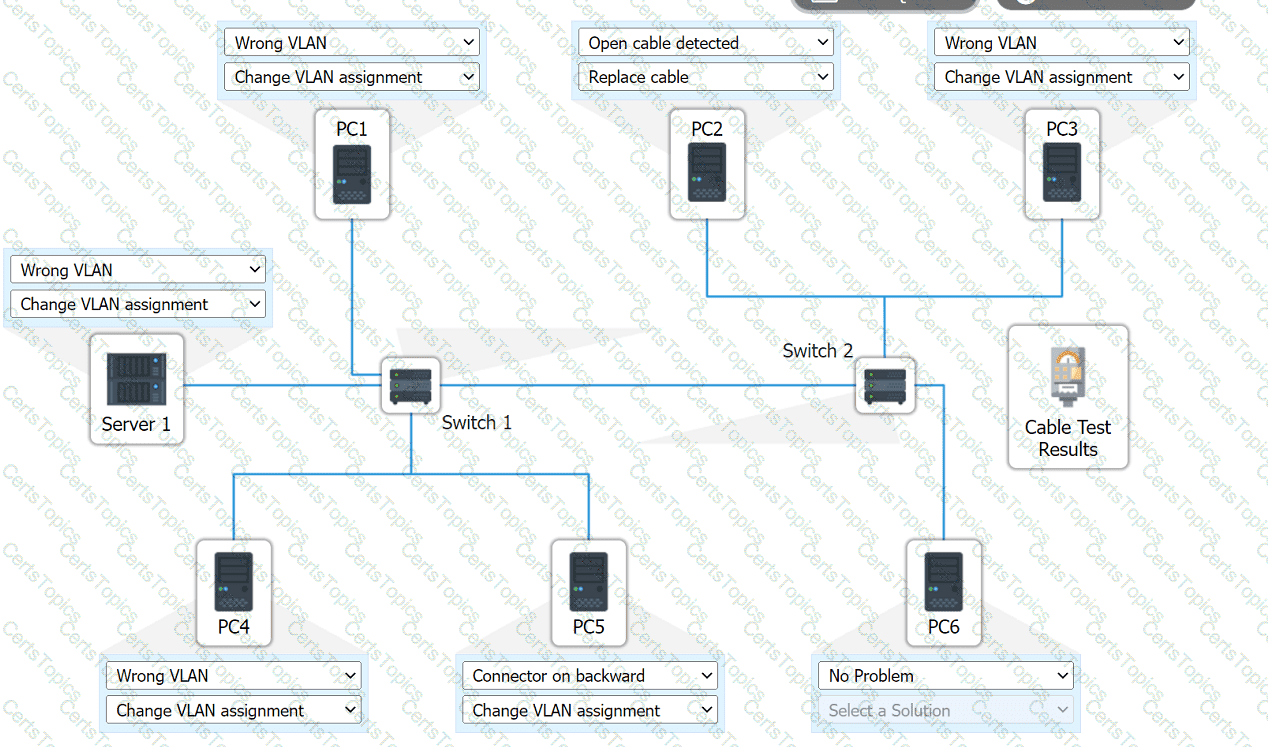

A cable tester is a tool that can help identify issues with the physical cabling, such as breaks or improper terminations, which may prevent the access point from reaching the internet.

=================

VLAN hopping is an attack where an attacker crafts packets with multiple VLAN tags, allowing them to traverse VLAN boundaries improperly. This can result in gaining unauthorized access to network segments that are supposed to be isolated. The other options do not involve the use of multiple network tags. MAC flooding aims to overwhelm a switch’s MAC address table, DNS spoofing involves forging DNS responses, and ARP poisoning involves sending fake ARP messages.

Nmap (Network Mapper) is a powerful network scanning tool used to discover hosts and services on a computer network. It can be used to identify which ports are open on a remote server, which can help diagnose access issues to services like a remote file server.

Port Scanning: Nmap can perform comprehensive port scans to determine which ports are open and what services are running on those ports.

Network Discovery: It provides detailed information about the host’s operating system, service versions, and network configuration.

Security Audits: Besides troubleshooting, Nmap is also used for security auditing and identifying potential vulnerabilities.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers network scanning tools and their uses.

Nmap Documentation: Official documentation provides extensive details on how to use Nmap for port scanning and network diagnostics.

Network+ Certification All-in-One Exam Guide: Discusses various network utilities, including Nmap, and their applications in network troubleshooting.

Introduction to Troubleshooting Methodology:

Network troubleshooting involves a systematic approach to identifying and resolving network issues. The CompTIA Network+ certification emphasizes a structured troubleshooting methodology.

Troubleshooting Steps:

Identify the problem: Gather information, identify symptoms, and question users.

Establish a theory of probable cause: Consider possible reasons for the issue.

Test the theory to determine cause: Validate the theory with tests.

Establish a plan of action to resolve the problem and implement the solution: Create and execute a resolution plan.

Verify functionality and implement preventive measures: Ensure the solution works and prevent recurrence.

Verifying Functionality:

After implementing a solution, verifying functionality ensures that the problem is fully resolved. This involves testing the network to confirm that it operates correctly.

Checking through each level of the OSI model helps to ensure that all potential issues at different layers (physical, data link, network, transport, session, presentation, and application) are addressed.

Explanation of the Options:

A. Establish a theory: This step involves hypothesizing possible causes, not verifying functionality.

B. Implement the solution: This step involves executing the resolution plan.

C. Create a plan of action: This step involves planning the resolution, not verification.

D. Verify functionality: This step involves comprehensive checks, including OSI model layers, to ensure the issue is fully resolved.

Conclusion:

Verifying functionality is a critical step in the troubleshooting process, ensuring that the network operates correctly after a solution is implemented. It involves thorough testing across all OSI model layers.

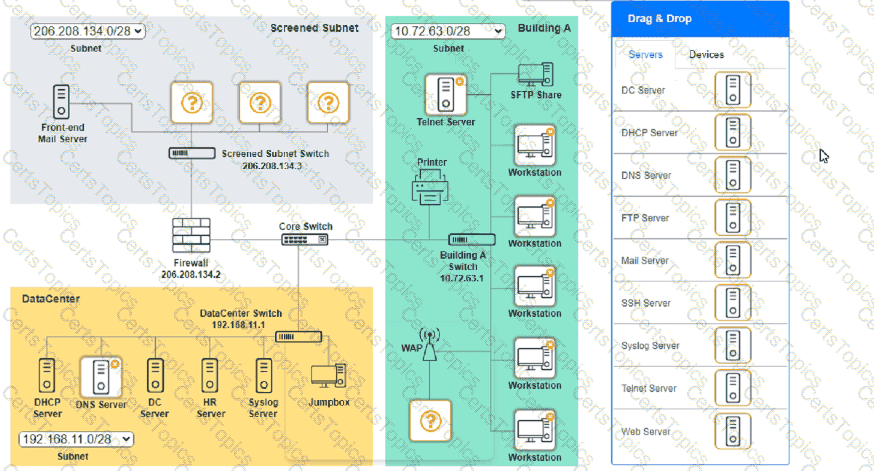

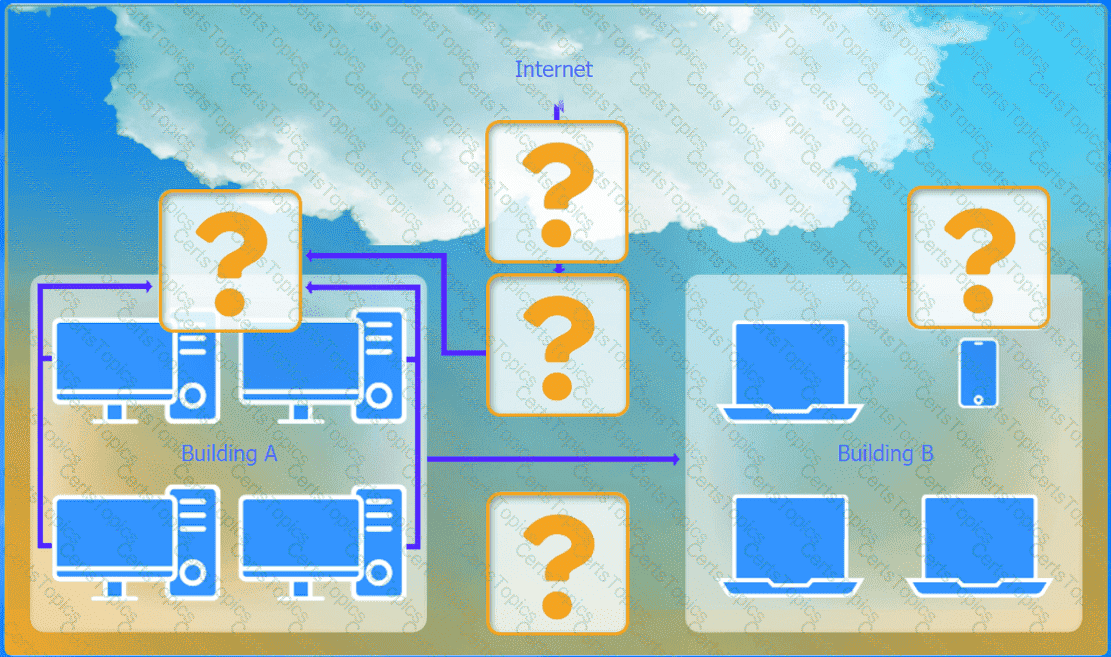

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

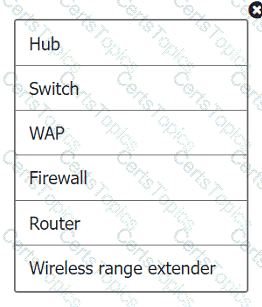

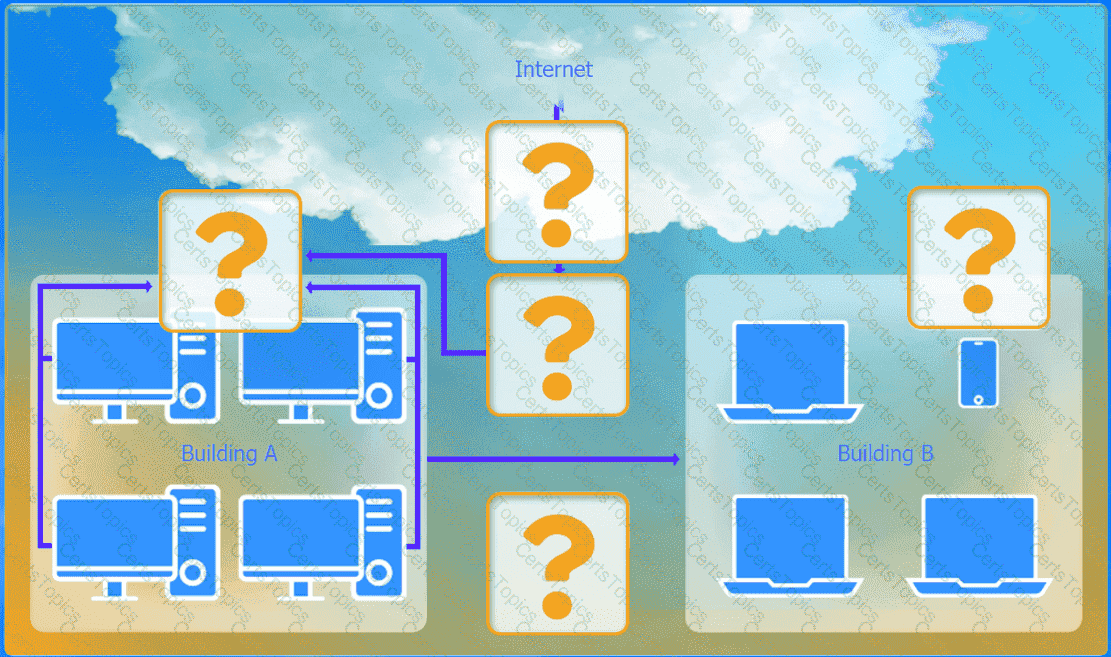

Here is the corrected layout with explanation:

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

Corrected Setup:

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

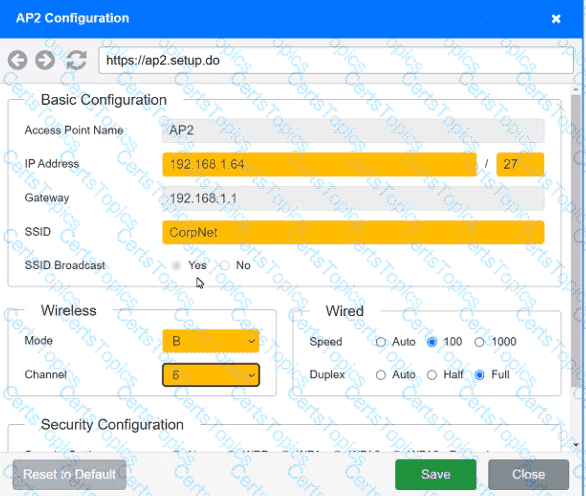

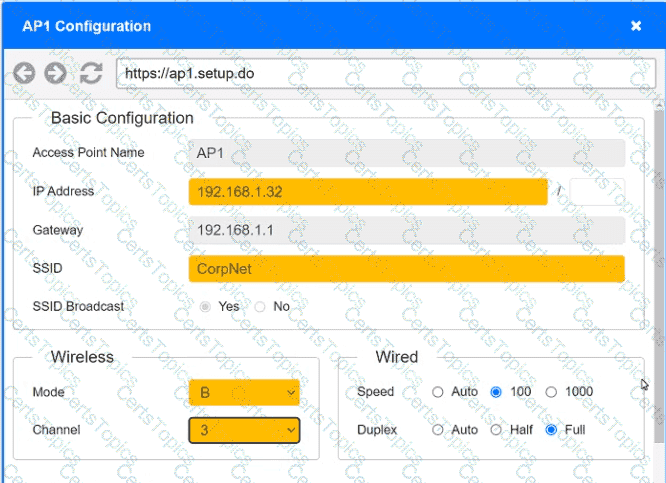

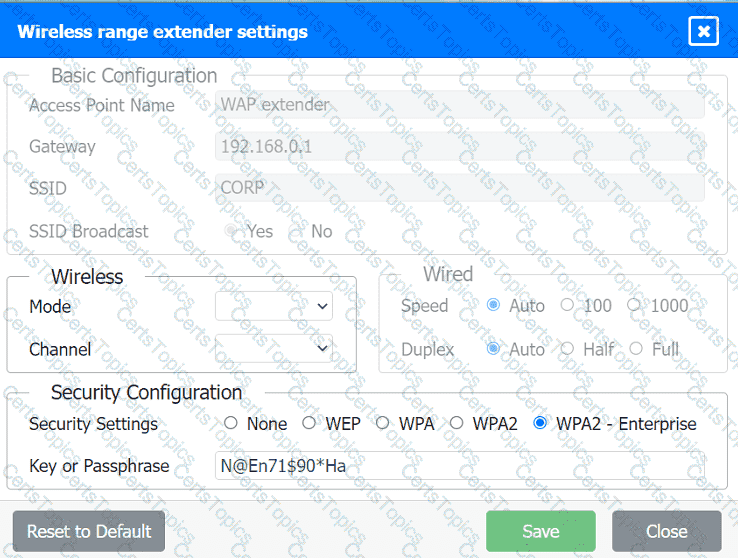

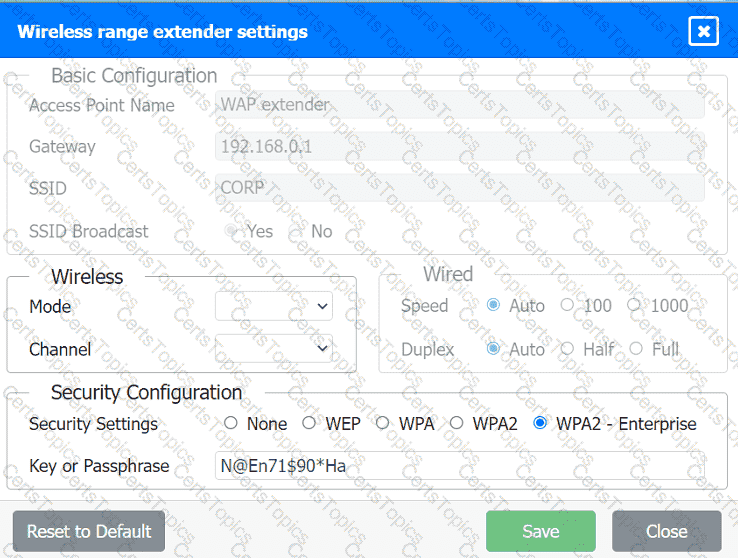

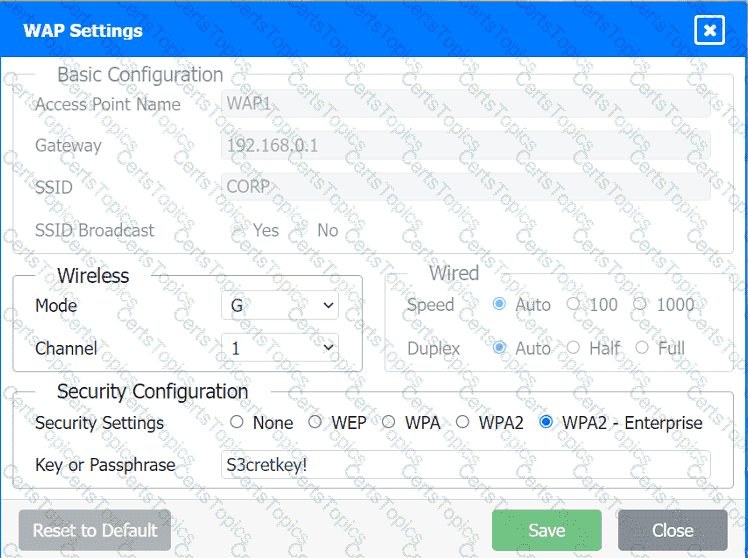

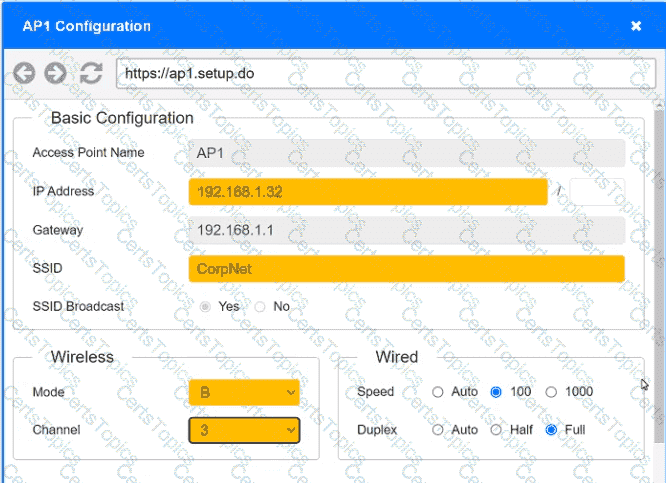

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

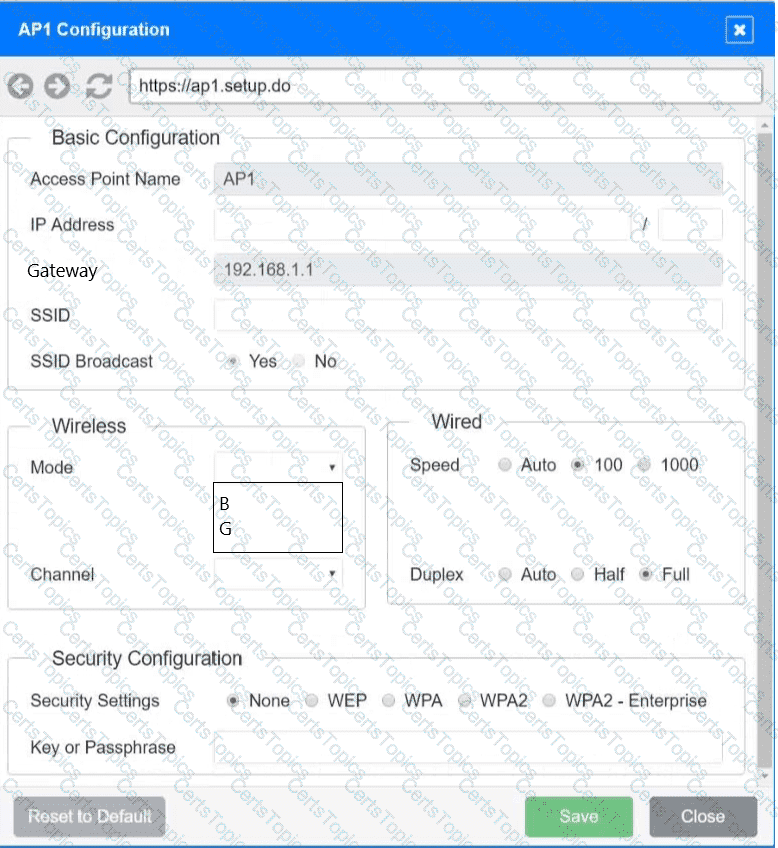

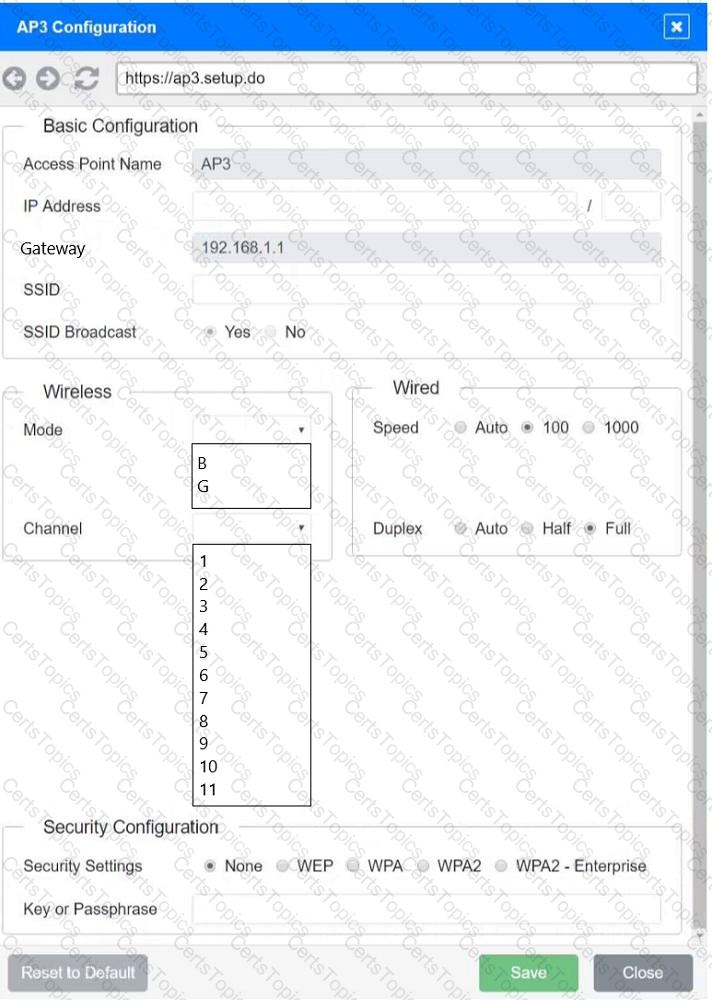

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to "CORP" as shown in the exhibit.

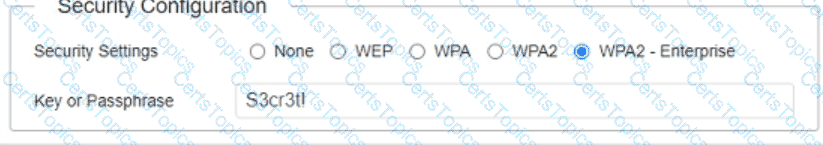

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the "Key or Passphrase" field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to "Auto" unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to "Auto" unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the "Save" button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.

Network Functions Virtualization (NFV): NFV is a technology that virtualizes network services like routing, firewalls, and load balancers. It allows these services to run on virtual machines rather than requiring dedicated hardware. This is ideal for remote branch locations where deploying physical devices is costly and complex.

VRF (B): Virtual Routing and Forwarding is used for segmenting routing tables but does not virtualize services.

VLAN (C): Virtual Local Area Networks help segregate broadcast domains but are unrelated to virtualizing network functions.

VPC (D): Virtual Private Cloud is used for cloud computing but does not pertain to virtualizing network services.

Definition of RPO:

Recovery Point Objective (RPO) is a disaster recovery metric that describes the maximum acceptable amount of data loss measured in time. It indicates the point in time to which data must be recovered to resume normal operations after a disaster.

For example, if the RPO is set to 24 hours, then the business could tolerate losing up to 24 hours' worth of data in the event of a disruption.

Why RPO is Important:

RPO is critical for determining backup frequency and helps businesses decide how often they need to back up their data. A lower RPO means more frequent backups and less potential data loss.

Comparison with Other Metrics:

MTTR (Mean Time to Repair): Refers to the average time required to repair a system or component and return it to normal operation.

RTO (Recovery Time Objective): The maximum acceptable length of time that a computer, system, network, or application can be down after a failure or disaster occurs.

MTBF (Mean Time Between Failures): The predicted elapsed time between inherent failures of a system during operation.

How RPO is Used in Disaster Recovery:

Organizations establish RPOs to ensure that they can recover data within a timeframe that is acceptable to business operations. This involves creating a backup plan that meets the RPO requirements.

Power over Ethernet (PoE) delivers power to devices such as VoIP phones over the same cables used for data. If the total power requirement of connected devices exceeds the PoE power budget of the switch or injector, some devices may not receive adequate power and could intermittently reboot. This issue would not affect the workstation, which is likely receiving power separately. References: CompTIA Network+ Exam Objectives and official study guides.

Definition of a Rogue DHCP Server:

A rogue DHCP server is an unauthorized DHCP server on a network, which can assign IP addresses to devices without proper control, leading to IP address conflicts.

Impact of a Rogue DHCP Server:

IP Address Conflicts: Multiple devices may receive the same IP address from different DHCP servers, causing network connectivity issues.

Network Disruption: Devices may be assigned incorrect network configuration settings, disrupting network services and connectivity.

Comparison with Other Attacks:

DNS poisoning: Alters DNS records to redirect traffic to malicious sites, but does not cause IP address conflicts.

Social engineering: Involves manipulating individuals to gain unauthorized access or information, not directly related to IP address conflicts.

Denial-of-service (DoS): Floods a network or service with excessive traffic to disrupt operations, but does not cause duplicate IP addresses.

Prevention and Detection:

Implement network access control measures to prevent unauthorized devices from acting as DHCP servers.

Use DHCP snooping on switches to allow DHCP responses only from authorized DHCP servers.

A Virtual Private Network (VPN) creates an encrypted connection between a remote user and an internal network, ensuring secure access to internal applications.

VPNs use encryption protocols like IPSec and SSL/TLS to protect data during transmission.

They are widely used for secure remote work, accessing company resources, and bypassing geographic restrictions.

Option B (CDN - Content Delivery Network): Used for speeding up website content delivery, not for remote access security.

Option C (SAN - Storage Area Network): Used for high-speed storage, unrelated to remote access.

Option D (IDS - Intrusion Detection System): Monitors for malicious activities but does not provide secure access to applications.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: Secure Remote Access Technologies

Comprehensive and Detailed Explanation:

Whentraffic moves laterally between VMswithin the same network orsubnet, it is known aseast-west traffic. This contrasts withnorth-south traffic, which refers to communication between internal and external networks.

Breakdown of Options:

A. East-west–Correct answer.This refers totraffic between internal servers or VMs, which is a common security concern.

B. Point-to-point– Point-to-point describes adirect connection between two devices, but doesnot specifically define lateral movement.

C. Horizontal-scaling– This refers toadding more instances or nodesin cloud computing, unrelated to traffic flow.

D. Hub-and-spoke– This network topology describes acentralized design, not lateral traffic.

The issue is that no root bridge has been identified. In STP, a root bridge is necessary to manage redundant paths and avoid loops in the network. Without a root bridge, all switches will assume they can forward traffic, causing a network loop and connectivity problems.

=================

Port mirroring, also known as SPAN (Switched Port Analyzer), is used to send a copy of network packets seen on one switch port (or an entire VLAN) to another port where the IDS is connected. This allows the IDS to passively inspect network traffic without interfering with the actual traffic flow. Port mirroring is an essential feature for implementing IDS in a network for traffic analysis and security monitoring.References: CompTIA Network+ study materials.

Comprehensive and Detailed Explanation:

The issue is thatmore students have arrived on campus, meaningthe available IP addresses are exhausted. To fix this, the administrator shouldincrease the DHCP scope sizeto allow more devices to obtain IP addresses.

Breakdown of Options:

A. Enable IP helper– IP helper is used to forward DHCP requests across different subnets. However, the problem here is thatthe DHCP scope is full, not that requests are not reaching the server.

B. Change the subnet mask– The subnet mask determines the number of available hosts, butchanging it without increasing the IP pool does not help.

C. Increase the scope size–Correct answer.Expanding the DHCP scope provides more IP addresses for assignment.

D. Add address exclusions– ExclusionsreserveIP addresses, which would further reduce available addresses instead of solving the issue.

Understanding Link Aggregation:

Definition: Link aggregation combines multiple network connections into a single logical link to increase bandwidth and provide redundancy.

Usage in High-Bandwidth Scenarios:

Combining Links: By aggregating multiple 1Gbps connections, the facility can utilize the full 2.5Gbps bandwidth provided by the ISP.

Benefits: Enhanced throughput, load balancing, and redundancy, ensuring better utilization of available bandwidth.

Comparison with Other Options:

802.1Q Tagging: Used for VLAN tagging, which does not affect the physical bandwidth utilization.

Network Address Translation (NAT): Used for IP address translation, not related to link speed or bandwidth aggregation.

Port Duplex: Refers to the mode of communication (full or half duplex) on a port, not the aggregation of bandwidth.

Implementation:

Configure link aggregation (often referred to as LACP - Link Aggregation Control Protocol) on network devices to combine multiple physical links into one logical link.

Introduction to OSI Model:

The OSI model is a conceptual framework used to understand network interactions in seven layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

Application Layer:

The application layer (Layer 7) is the topmost layer in the OSI model. It provides network services directly to end-user applications. This layer facilitates communication between software applications and lower layers of the network protocol stack.

Reliance on Other Layers:

The application layer relies on the transport layer (Layer 4) for data transfer across the network. The transport layer ensures reliable data delivery through protocols like TCP and UDP.

The network layer (Layer 3) is responsible for routing packets to their destination.

The data link layer (Layer 2) handles node-to-node data transfer and error detection.

The physical layer (Layer 1) deals with the physical connection between devices.

Explanation of the Options:

A. It relies upon other layers for packet delivery: This is correct. The application layer depends on the lower layers (transport, network, data link, and physical) for the actual delivery of data packets.

B. It checks independently for packet loss: This is incorrect. Packet loss detection is typically handled by the transport layer (e.g., TCP).

C. It encrypts data in transit: This is incorrect. Encryption is typically handled by the presentation layer or at the transport layer (e.g., TLS/SSL).

D. It performs address translation: This is incorrect. Address translation is performed by the network layer (e.g., NAT).

Conclusion:

The application layer’s primary role is to interface with the end-user applications and ensure that data is correctly presented to the user. It relies on the underlying layers to manage the actual data transport and delivery processes.

A Client-to-Site VPN allows a remote user to securely connect to a company's internal network, providing access as if they were physically on-site.

When a network administrator installs a new Network Interface Card (NIC) and users are unable to reach the server, one of the common issues is the use of an incorrect cable type. Network cables must match the specifications required by the NIC and the network infrastructure (e.g., Cat5e, Cat6 for Ethernet).

NIC Compatibility: The new NIC might require a specific type of cable to function properly. Using a cable not rated for the NIC's required speeds or capabilities can result in connectivity issues.

Cable Standards: Different NICs and network devices might need different cabling standards (straight-through vs. crossover cables, or specific fiber optic types).

Connection Types: Ensuring that the cable connectors are appropriate for the NIC ports (e.g., RJ45 for Ethernet, LC connectors for fiber optics).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network cabling standards and NIC specifications.

Cisco Networking Academy: Provides insights into cabling and NIC configurations for optimal network performance.

Network+ Certification All-in-One Exam Guide: Offers comprehensive details on troubleshooting network connectivity issues, including cabling problems.

Comprehensive and Detailed Explanation:

VLANs (Virtual Local Area Networks)segment network trafficby department, allowingACLs (Access Control Lists)to be appliedbased on VLAN membership, improving security and resource isolation.

Breakdown of Options:

A. VLAN–Correct answer.VLANs enablelogical network segmentation, allowingACLs per department.

B. DHCP– Assigns IP addresses butdoes not control access.

C. VPN– Providesremote access,not segmentation within a network.

D. STP– Preventsswitching loops,not related to ACL implementation.

A Change Advisory Board (CAB) reviews and approves network changes. Before approval, they need a detailed action plan outlining the change, potential impacts, and mitigation strategies.

A Plan of Action includes risk assessments, rollback procedures, and deployment steps, which are critical for decision-making.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: Network Troubleshooting Methodologies

Anevil twinis arogue Wi-Fi access pointthat mimics a legitimate network. Attackers use it tointercept and manipulate traffic, making it anon-path (formerly MITM) attackopportunity.

Breakdown of Options:

A. Phishing– Tries tosteal credentialsthrough fake emails/websites but doesnot intercept network traffic.

B. Dumpster diving– Involvesphysical security breaches,not network interception.

C. Evil twin–✅Correct answer.A rogueWi-Fi AP impersonates a real network, allowingtraffic interception.

D. Tailgating– Involvesphysical access security,not network interception.

Understanding the Requirements

Network Address: 192.168.1.0/24

The /24 notation means a subnet mask of 255.255.255.0, providing 256 total addresses (192.168.1.0–192.168.1.255).

Usable hosts: 256 – 2 (network and broadcast) = 254.

Goal: Create3 subnets, each with30 hosts.

Each subnet needs enough addresses to accommodate 30 hosts, plus 2 reserved addresses (network and broadcast) per subnet.

Total addresses per subnet = 30 (hosts) + 2 (network/broadcast) =32 addresses.

Subnetting Basics (Networking Fundamentals)

Subnet Mask: Determines how many bits are borrowed from the host portion to create subnets.

Original Mask: /24 (255.255.255.0) = 24 network bits, 8 host bits.

Formulae:

Number of subnets = 2^(number of borrowed bits).

Number of addresses per subnet = 2^(remaining host bits).

Usable hosts per subnet = 2^(remaining host bits) – 2.

We need:

At least3 subnets.

At least32 addresses per subnet(to fit 30 hosts + 2 reserved).

Step-by-Step Analysis

Determine Addresses Needed per Subnet:

32 addresses is a power of 2 (2^5 = 32).

This means each subnet requires 5 host bits (since 2^5 = 32 total addresses, and 32 – 2 = 30 usable hosts).

Calculate Remaining Bits:

Original network has 8 host bits (/24).

If 5 bits are left for hosts, we borrow: 8 – 5 =3 bitsfor subnetting.

New Subnet Mask:

Original mask: /24 (24 network bits).

Borrow 3 bits: 24 + 3 =/27.

/27 = 255.255.255.224 (binary: 11111111.11111111.11111111.11100000).

Verify Requirements:

Number of Subnets: 2^3 =8 subnets(meets the requirement of at least 3).

Addresses per Subnet: 2^5 =32 addresses.

Usable Hosts per Subnet: 32 – 2 =30 hosts(exactly meets the requirement).

Subnet Breakdown:

Increment: 256 – 224 =32(each subnet increments by 32 in the fourth octet).

Subnets:

192.168.1.0–192.168.1.31 (Network: .0, Broadcast: .31, Hosts: .1–.30)

192.168.1.32–192.168.1.63 (Network: .32, Broadcast: .63, Hosts: .33–.62)

192.168.1.64–192.168.1.95 (Network: .64, Broadcast: .95, Hosts: .65–.94)

(And 5 more subnets up to 192.168.1.255.)

Three subnets fit perfectly with 30 hosts each.

Evaluating the Options

A. 255.255.255.128 (/25):

Borrow 1 bit: 24 + 1 = /25.

Subnets: 2^1 = 2 (not enough, need 3).

Host bits: 7 (2^7 = 128 addresses, 126 hosts).

Why Not: Only 2 subnets, fails the requirement.

B. 255.255.255.192 (/26):

Borrow 2 bits: 24 + 2 = /26.

Subnets: 2^2 = 4 (meets 3).

Host bits: 6 (2^6 = 64 addresses, 62 hosts).

Why Not: 62 hosts exceeds 30, but it’s overkill; /27 is more efficient and still valid.

C. 255.255.255.224 (/27):

Borrow 3 bits: 24 + 3 = /27.

Subnets: 2^3 = 8 (meets 3).

Host bits: 5 (2^5 = 32 addresses, 30 hosts).

Why Yes: Perfectly fits 3 subnets with exactly 30 hosts each.

D. 255.255.255.240 (/28):

Borrow 4 bits: 24 + 4 = /28.

Subnets: 2^4 = 16 (meets 3).

Host bits: 4 (2^4 = 16 addresses, 14 hosts).

Why Not: Only 14 hosts per subnet, fails the 30-host requirement.

Why /27 (255.255.255.224) is Best

It providesexactly 30 usable hosts per subnet, avoiding waste while meeting the minimum requirement.

It allows8 subnets, exceeding the need for 3, ensuring flexibility.

The study guide emphasizes efficient subnet design, and /27 balances host count and subnet availability.

CompTIA Network+ Context

Networking Fundamentals: Subnetting is a core skill, requiring understanding of CIDR, binary conversion, and address allocation.

Example from Study Guide: Similar problems calculate subnet masks for specific host counts, reinforcing /27 as a common solution for ~30 hosts.

Speed Mismatches: If NICs are set to different speeds (e.g., 100 Mbps on one side and 1 Gbps on the other), performance will degrade. Ensuring consistent speed settings between devices is crucial for optimal performance.

Load balancer settings (B): Applies to server load distribution, not endpoint speed.

Flow control settings (C): Can affect performance but is secondary to speed mismatches.

Infrastructure cabling grade (D): Relevant if the cables are unsuitable for gigabit speeds, but speed settings should be checked first.
